Ok, I installed my new foglights and wrote up a how-to with pictures. The install takes about 5-10 minutes per bulb.
Tools Required:
14mm crescent wrench
Philips screwdriver
Flat Head screwdriver
Something to lift up the car (ie ramps or jack)
Step 1:

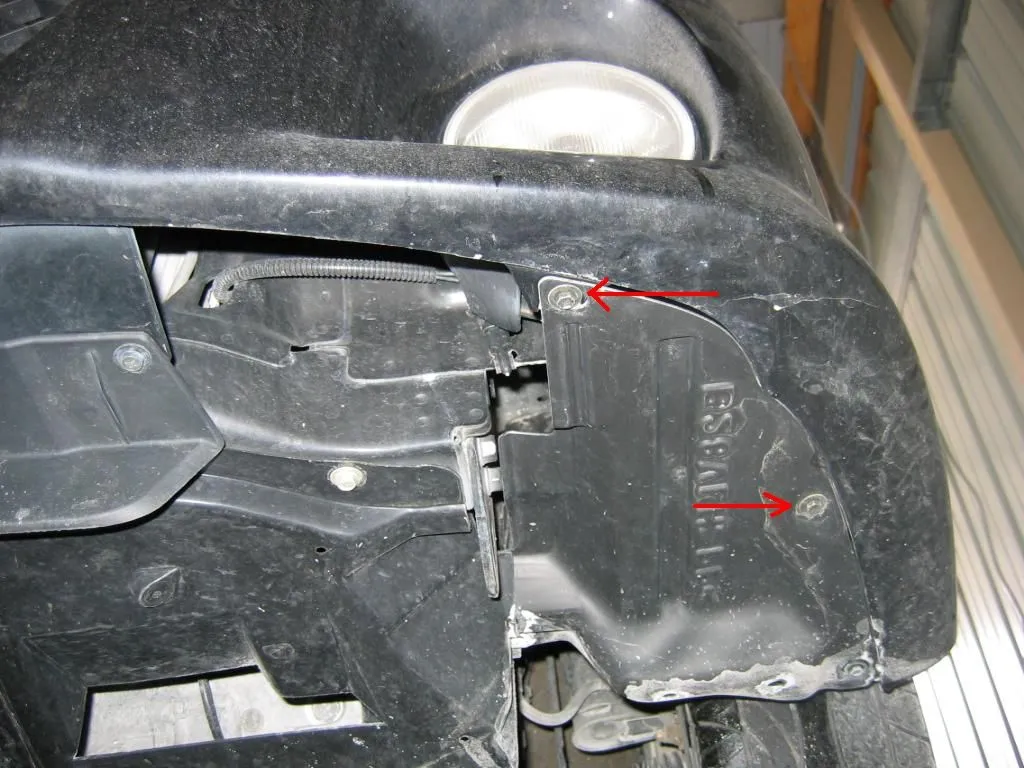

Lift up the car and locate the panels that are under each foglight. Remove the two screws that hold the panel in place. You can then pull back the panel and gain access to the back of the foglight.
See picture 1
Step 2:

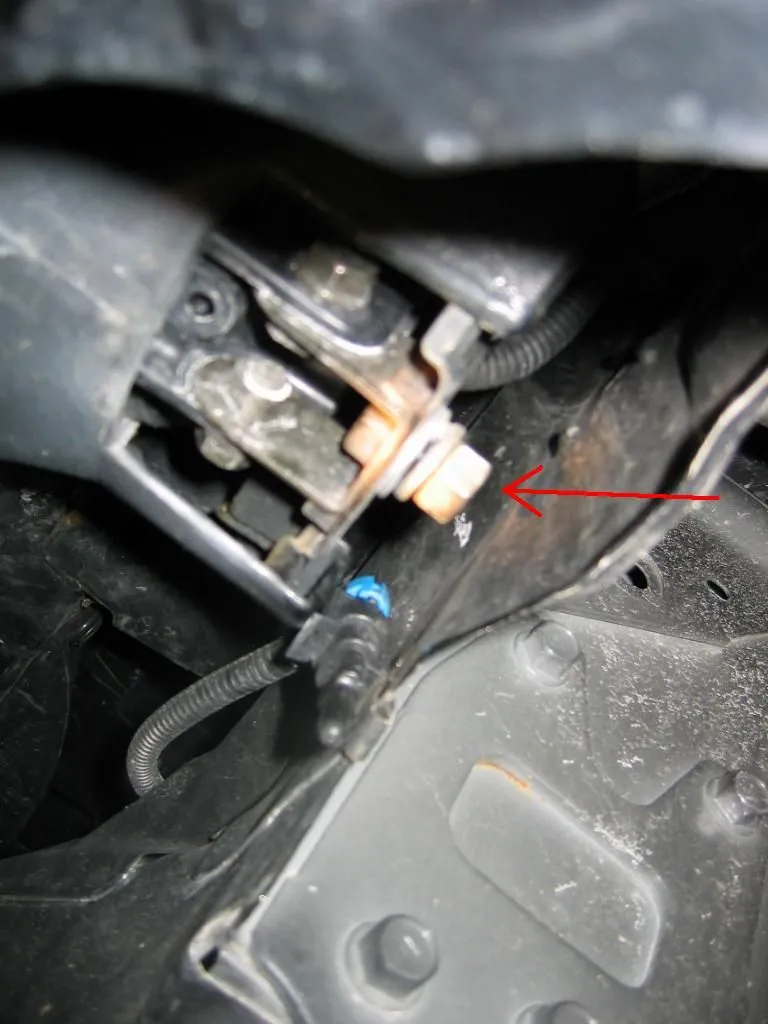

Remove the one bolt that holds the fog light in place with a 14mm crescent wrench. It might be on tight, but you should be able to break it free pretty easily.
See picture 2
Step 3:
Pull the fog light out of the car as far as you can. You don't have much slack, but you will be able to expose a blue clip that sits right behind the fog light.
See picture 3
Use the flathead screwdriver to pop the blue clip backwards. Then you can pull the foglight out even farther, and you will be able to see the blue clip on the wire harness.
See picture 4
Step 4:

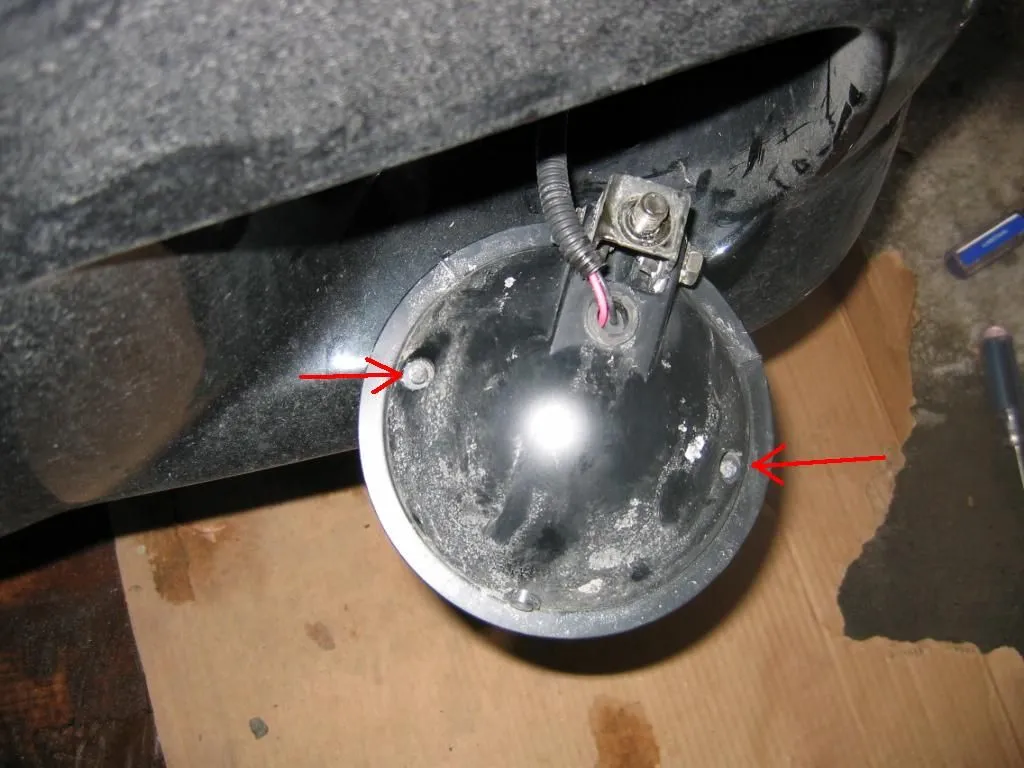

Use the philips screwdriver to remove the two screws that hold the glass onto the body of the foglight.
See picture 5
Tools Required:
14mm crescent wrench
Philips screwdriver
Flat Head screwdriver
Something to lift up the car (ie ramps or jack)
Step 1:
Lift up the car and locate the panels that are under each foglight. Remove the two screws that hold the panel in place. You can then pull back the panel and gain access to the back of the foglight.
See picture 1
Step 2:
Remove the one bolt that holds the fog light in place with a 14mm crescent wrench. It might be on tight, but you should be able to break it free pretty easily.
See picture 2
Step 3:
Pull the fog light out of the car as far as you can. You don't have much slack, but you will be able to expose a blue clip that sits right behind the fog light.
See picture 3
Use the flathead screwdriver to pop the blue clip backwards. Then you can pull the foglight out even farther, and you will be able to see the blue clip on the wire harness.
See picture 4
Step 4:
Use the philips screwdriver to remove the two screws that hold the glass onto the body of the foglight.
See picture 5
