Gb: Awr deep sump oil pan

[Circuit]

Just a reminder to everyone,

DO NOT USE THE PICKUP SPACER that's supplied with the pan. It smooshes the pickup too far into the pan and actually restricts oil flow, and is not needed. Beyond me why AWR even includes it.

WTF I have been running the spacer for over a year now. Why is it in there... I guess I can pull it out when I send my pan to AWR to get an oil return bung welded in



[Maxx Mazda]

Look at how smooshed your pickup screen is when you take the pan off. With the tube itself only 1/4" off the bottom of the pan you'll see why it's ill advised to run it.

Why get AWR to weld on a bung for you? I just made a return line block out of aluminum and bolted it on. Gives the fitting WAY more threads to bite into, and looks nicer too. Nor will it ever leak.



[funkalicious21]

Hey max, if you don't mind, do you have pics of the block you made? Sounds interesting.



[Circuit]

Hey max, if you don't mind, do you have pics of the block you made? Sounds interesting.

+1



[HKPRO5]

Yup. =) pics!



[Maxx Mazda]

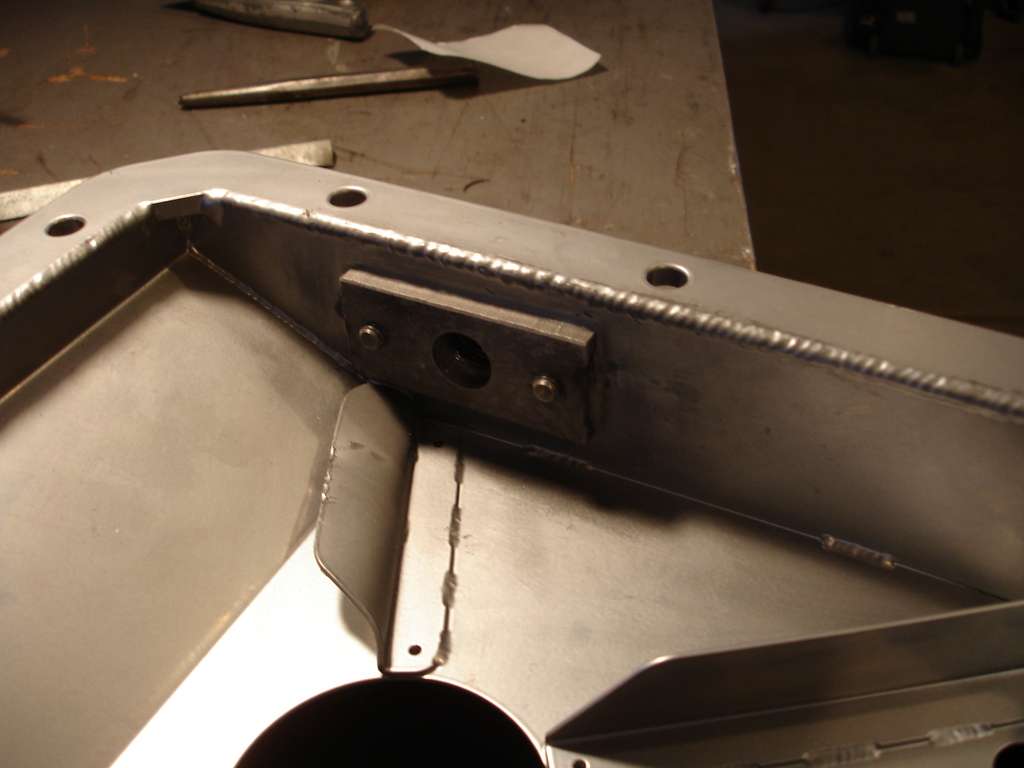

Drill out the pan. Fabricate aluminum block to accept -10AN return fitting. Note how much thread engagement is now provided. Run through bolts to tapped backplate on the inside of the pan, seal both sides of the block with UltraGrey.

This is WAY overkill, but anyone who has seen my build knows there is no such thing for me.



[funkalicious21]

Definitely looks great!

Would having this pan be sufficient enough of oil to solve the issue of oil starvation in our motors or is the combination of the Doc B system a must, regardless?



[HKPRO5]

Nice Max, where does one attain the block? lol



[HKPRO5]

1.) Funkalicious21
2.)repthemazdas
3.) Perro del Sol
4.)Mazdaspeedp
5.) HKPRO5

Here is the new list. When do you think you could make the payment? (so I can generalize a due date)



[Maxx Mazda]

Nice Max, where does one attain the block? lol

Make it. Aluminum stock is pretty cheap these days.



[HKPRO5]

Cool.



[Circuit]

Drill out the pan. Fabricate aluminum block to accept -10AN return fitting. Note how much thread engagement is now provided. Run through bolts to tapped backplate on the inside of the pan, seal both sides of the block with UltraGrey.

This is WAY overkill, but anyone who has seen my build knows there is no such thing for me.

http://img695.imageshack.us/img695/6483/dsc02373es.jpg

[IMG]http://img64.imageshack.us/img64/5610/dsc02374t.jpg[/QUOTE]

Baller. Wish I had the tools/ability to make one of those.



[Maxx Mazda]

Baller. Wish I had the tools/ability to make one of those.

Scrap aluminum is easy to find. You'll need a vice, drill, a grinder, and a tap and die set. Really it's not complicated.



[repthemazdas]

sadly 3 more weeks is wen i can make the payment



[bikingpro5]

1.) Funkalicious21
2.)repthemazdas
3.) Perro del Sol
4.)Mazdaspeedp
5.) HKPRO5
6.)Bikingpro5
Here is the new list. When do you think you could make the payment? (so I can generalize a due date)

added



[speedracr79]

so does anyone know if this will work with the 1.6



[Circuit]

Scrap aluminum is easy to find. You'll need a vice, drill, a grinder, and a tap and die set. Really it's not complicated.

Out of that I only have a drill lol. Make them and sell em!



[Maxx Mazda]

so does anyone know if this will work with the 1.6

It will not.



[speedracr79]

I figured that sucks oh well.



[repthemazdas]

bump this s*** me and cres have our money ready and planned for 2 more weeks so please try and have ur money in 2 weeks i want my oil pan!!!...
