dlechner's 2008.5 Mazdaspeed 3 Audio

dlechner

Member
:
08.5 Mazdaspeed 3 GT (White)
Thought I might finally share my car. It is still a work in progress. I am testing subs right now, with an IDQ15 in the back.

Car mods include:

Pioneer PRS800 with LED change to amber/orange (Thanks to JC2 from team Hybrids for an amazing Job!!)
PAC SWI utilizing the factory stearing wheel controls
Custom dash kit (courtesy of Wayne Watkins from Car Toys in Denver - Park Meadows)
Approx 100sqft of B-quiet sound dampening
HAT L6's in the doors
HAT L1v2 Tweets in the a-pillars
Image Dynamics IDQ15
Phoenix gold XS6600 powering the whole system
Turbo XS CAI
Turbo XS BOV
Turbo XS Downpipe (sitting in garage not installed yet)

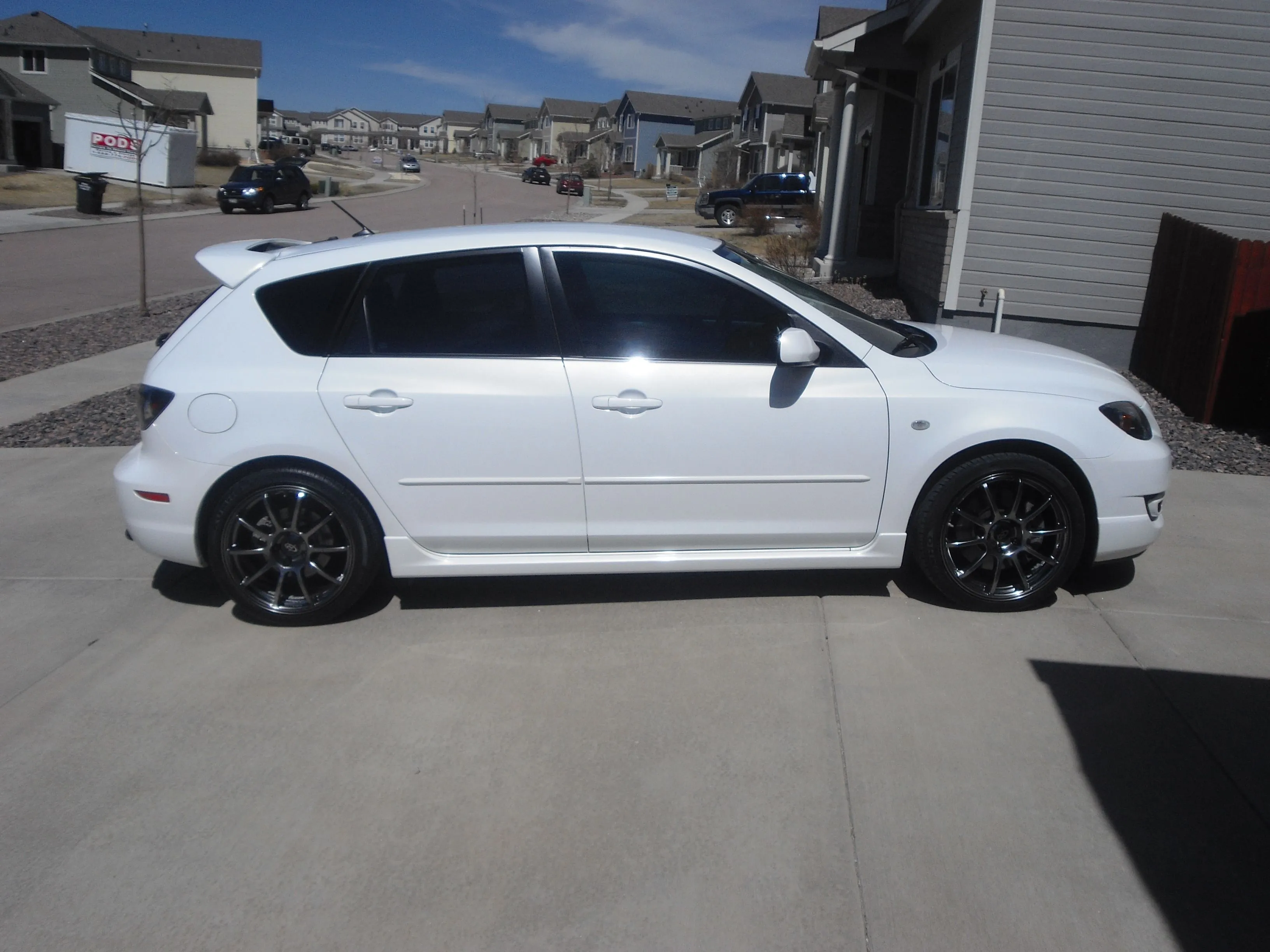

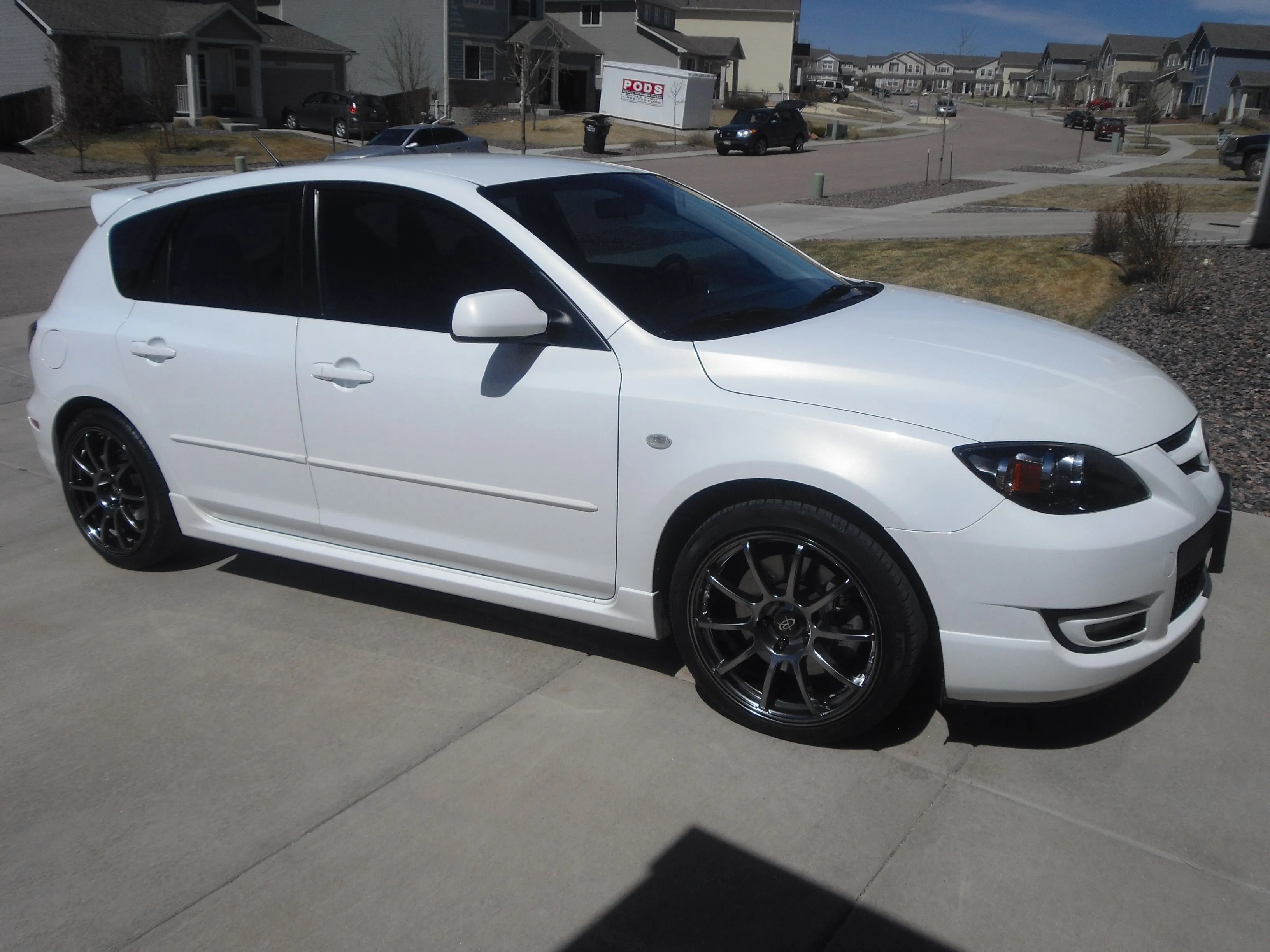

First the car:


Attachments

  • Car Front Passenger.webp
    Car Front Passenger.webp
    347.4 KB · Views: 324
  • CIMG1141.webp
    318 KB · Views: 309
Last edited:
Now the progress. Not a whole lotta pics, but my wife had our camera during some of this. So I had to use my Iphone and the pics didn't turn out that great.

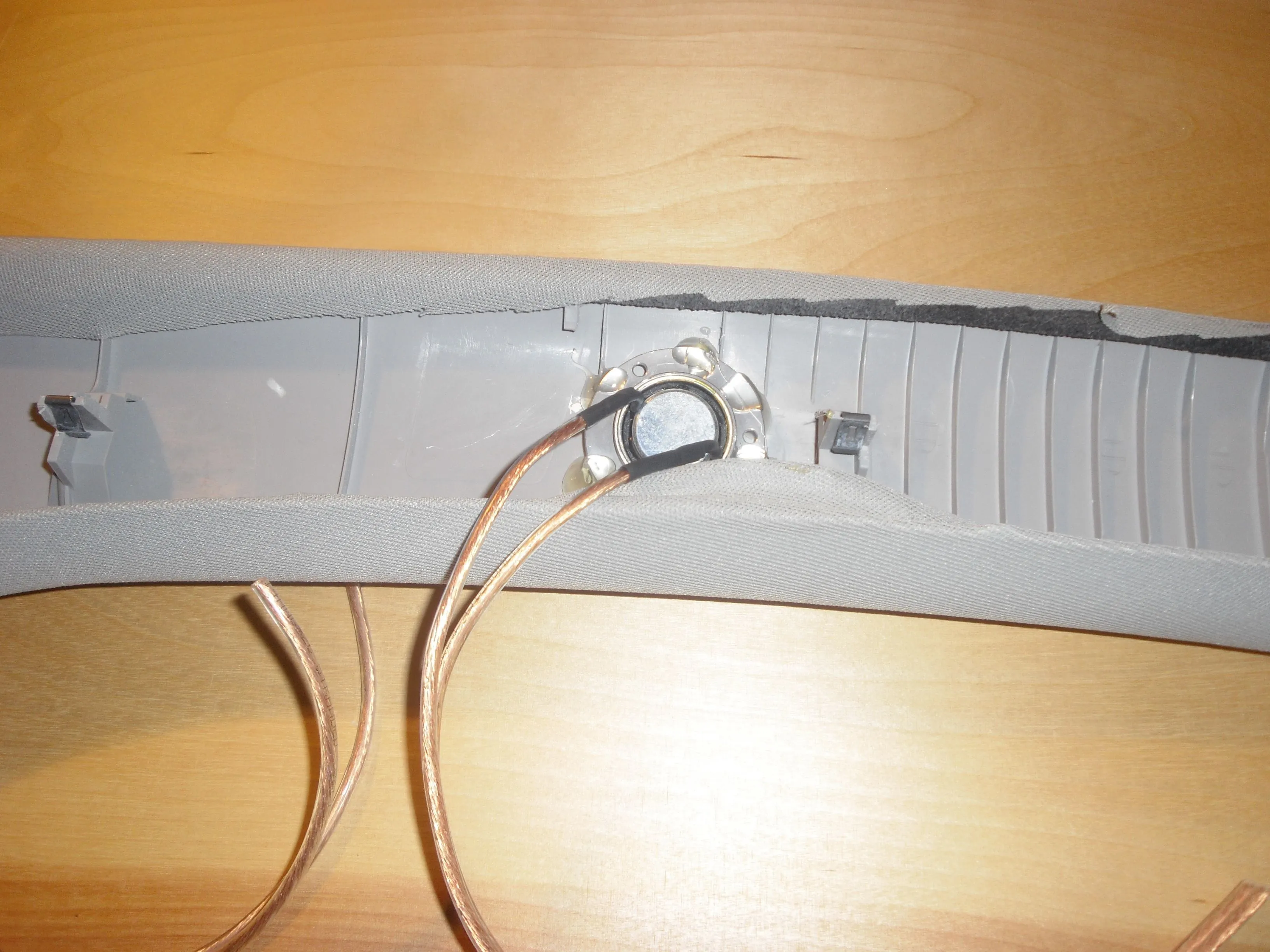

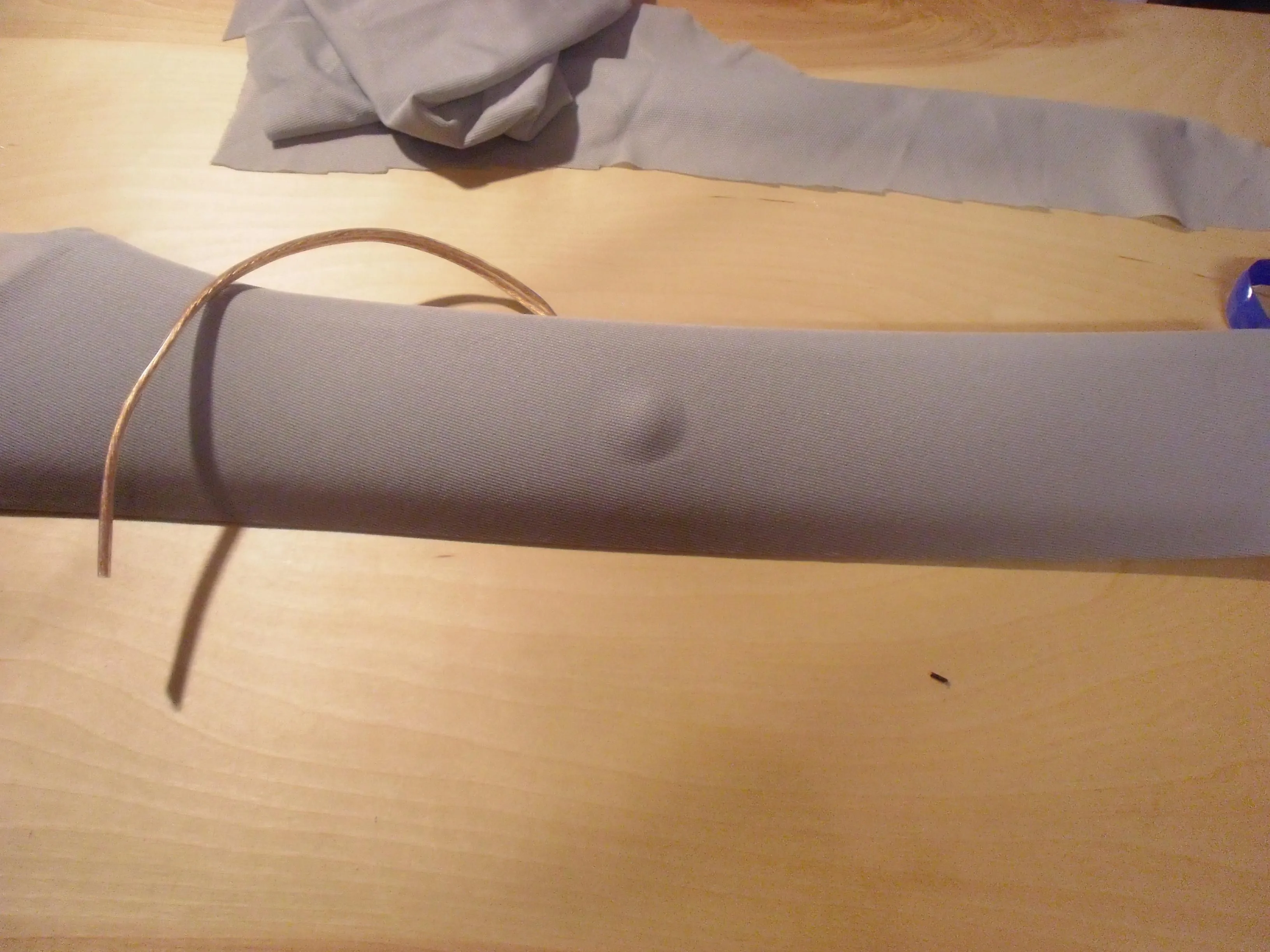

Pics of Pillars (Using Hybrid Audio Technologies L2v2), Door mid (Using HAT L6) sound dampening and dash kit:


Attachments

  • CIMG1119.webp
    481.1 KB · Views: 300
  • CIMG1120.webp
    396.4 KB · Views: 285

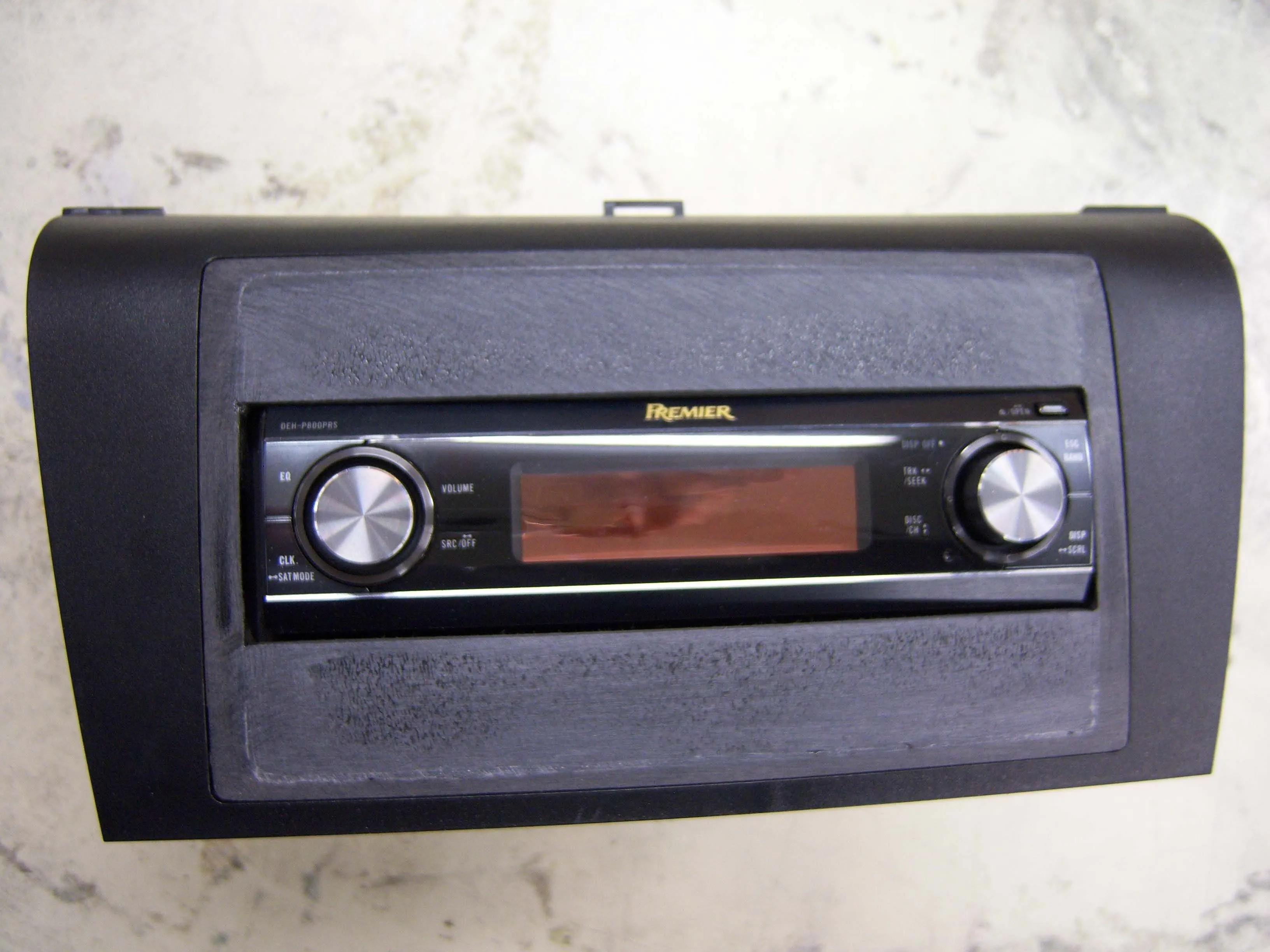

  • dash kit before.webp
    dash kit before.webp
    320.9 KB · Views: 310

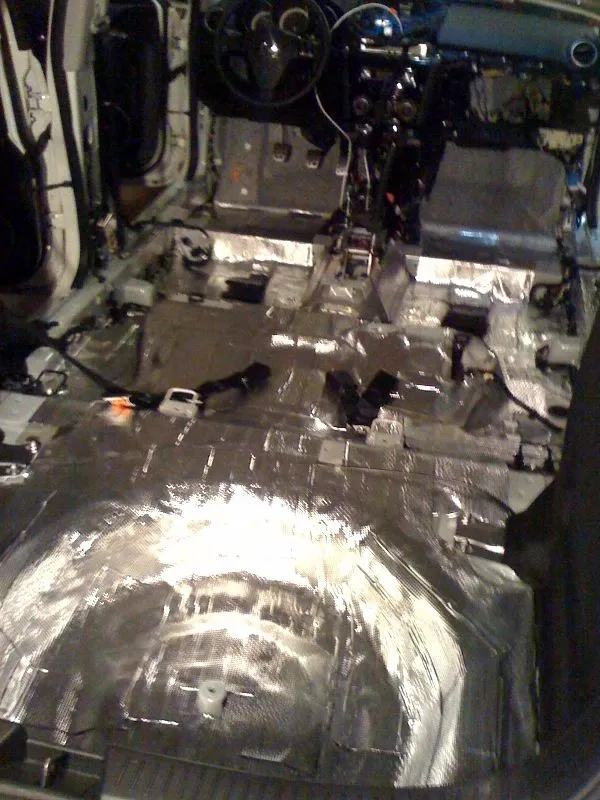

  • Iphone Pic of Sound Damp.webp
    Iphone Pic of Sound Damp.webp
    70.4 KB · Views: 284
  • Door with L6.webp
    Door with L6.webp
    4.2 KB · Views: 296
Last edited:

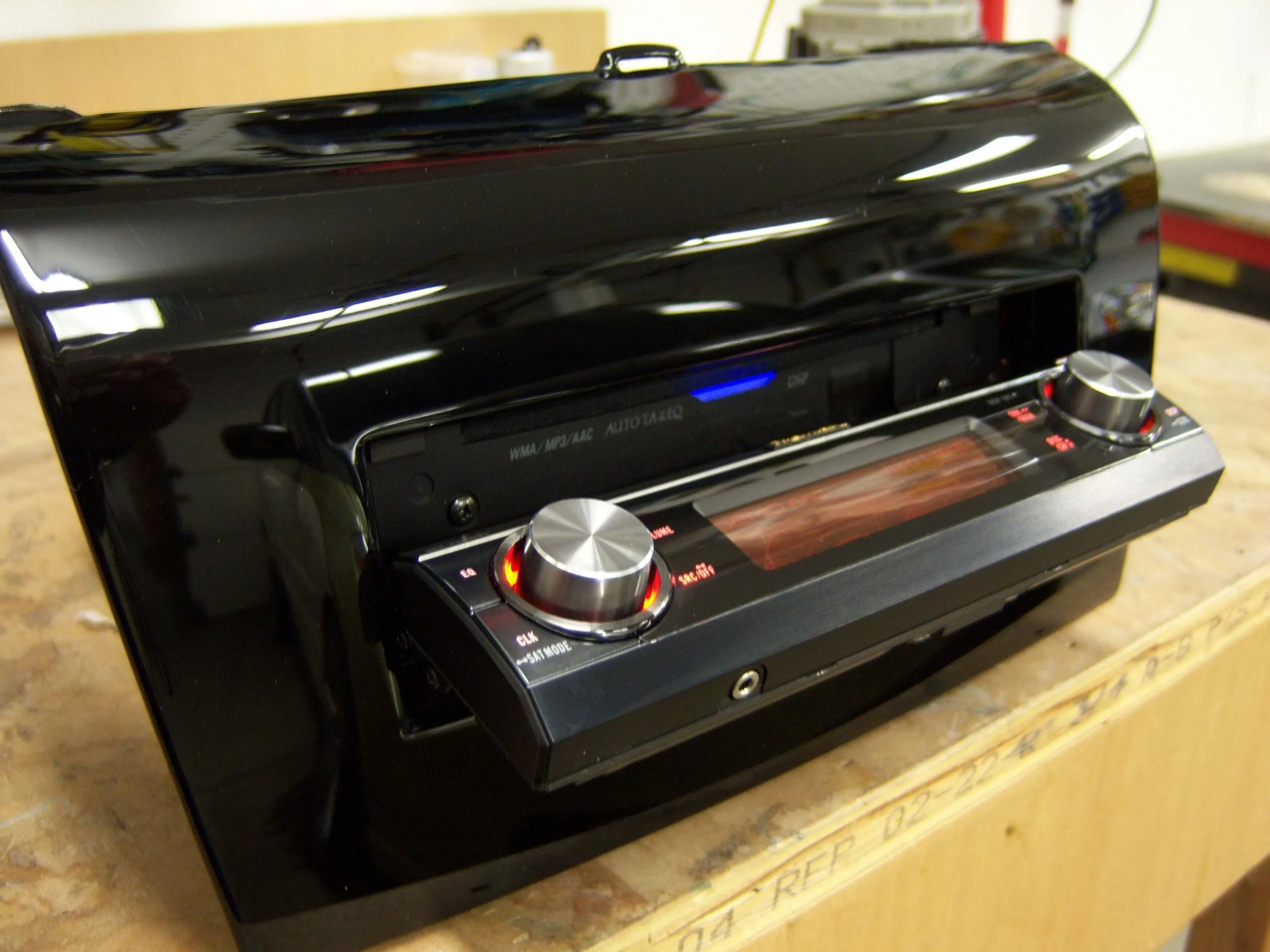

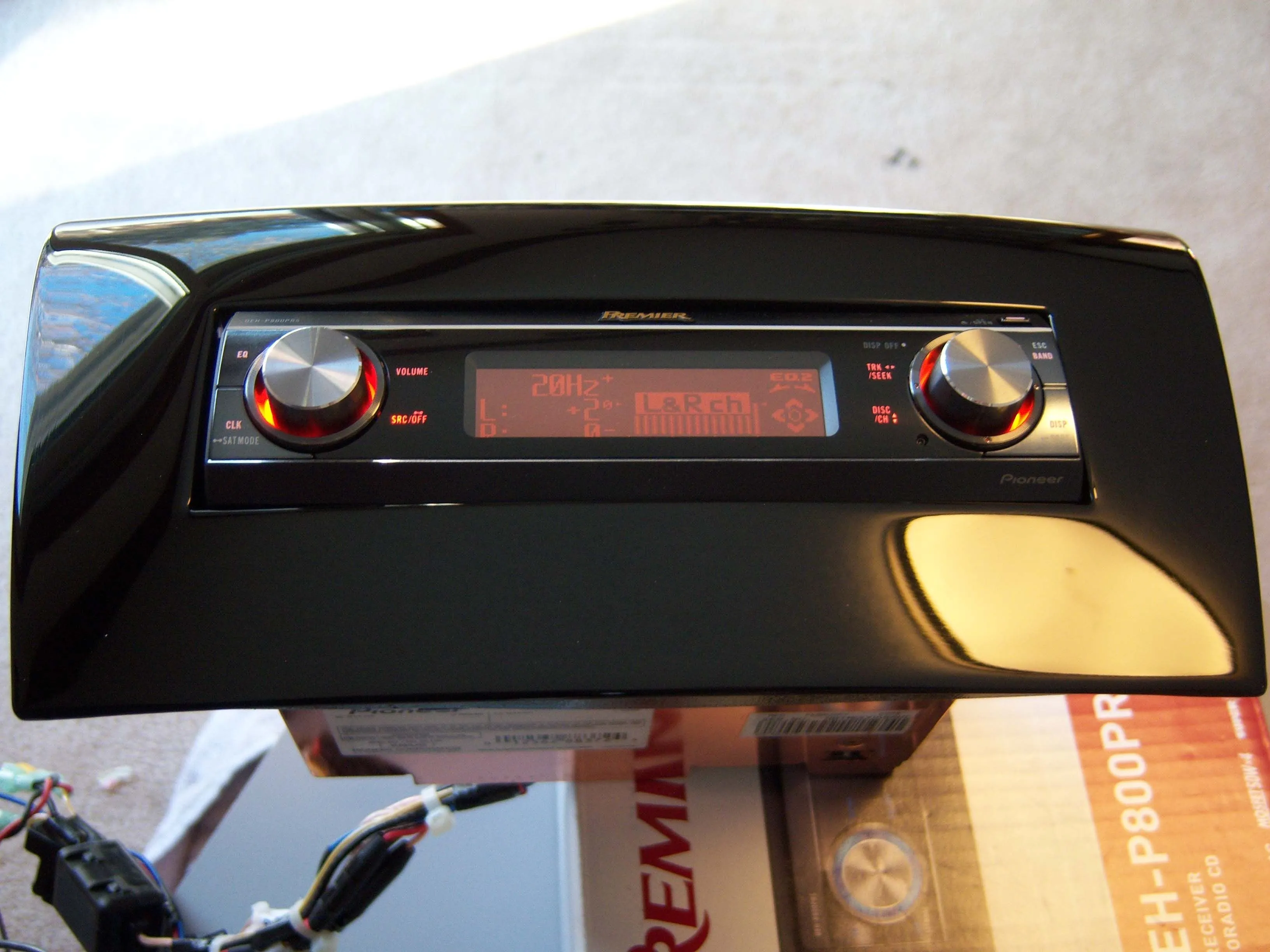

Finished dash kit:


Attachments

  • Dash Kit Open.webp
    Dash Kit Open.webp
    292.6 KB · Views: 307
  • Dash Kit from Bottom.webp
    Dash Kit from Bottom.webp
    308.8 KB · Views: 294
Last edited:

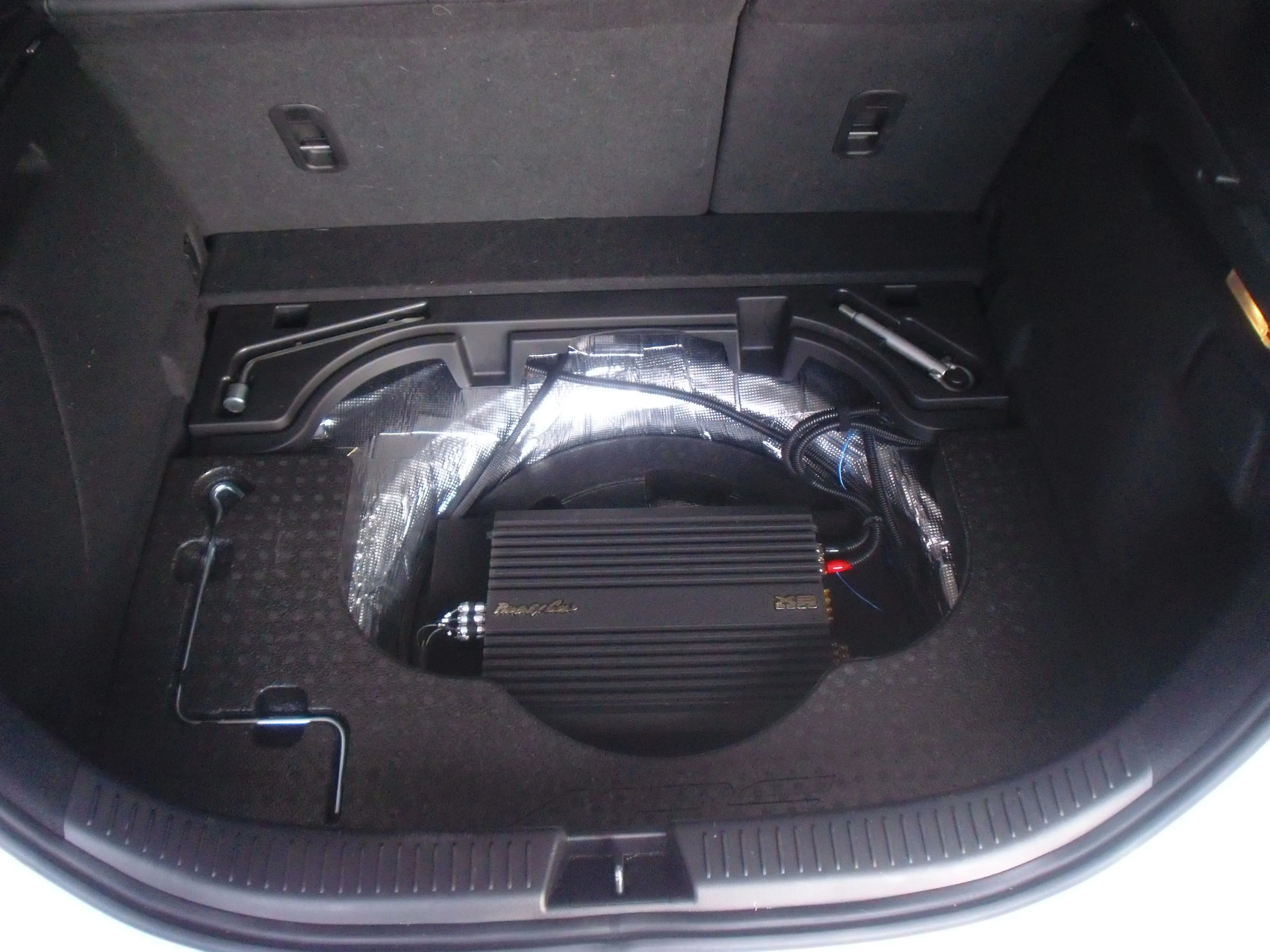

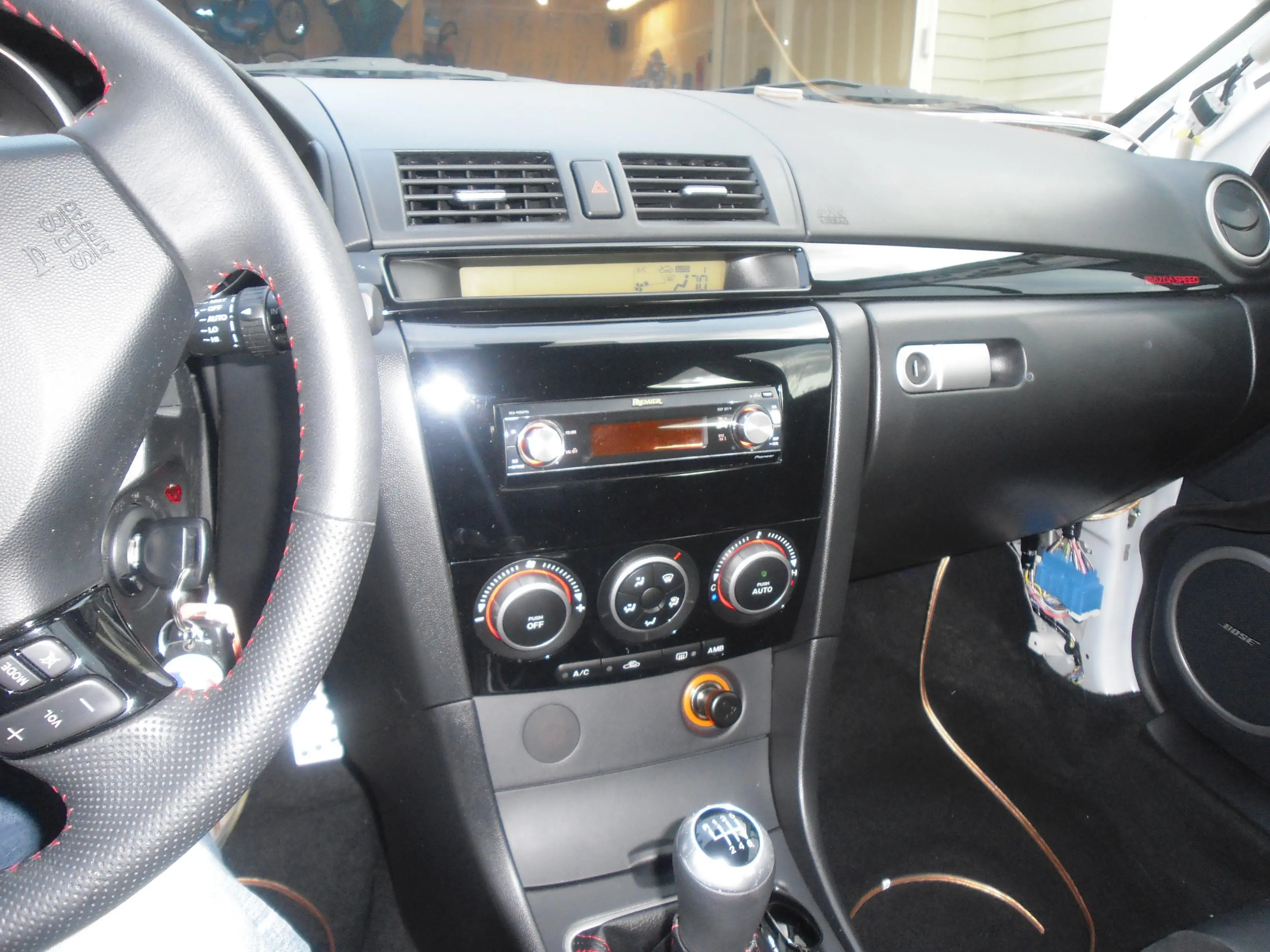

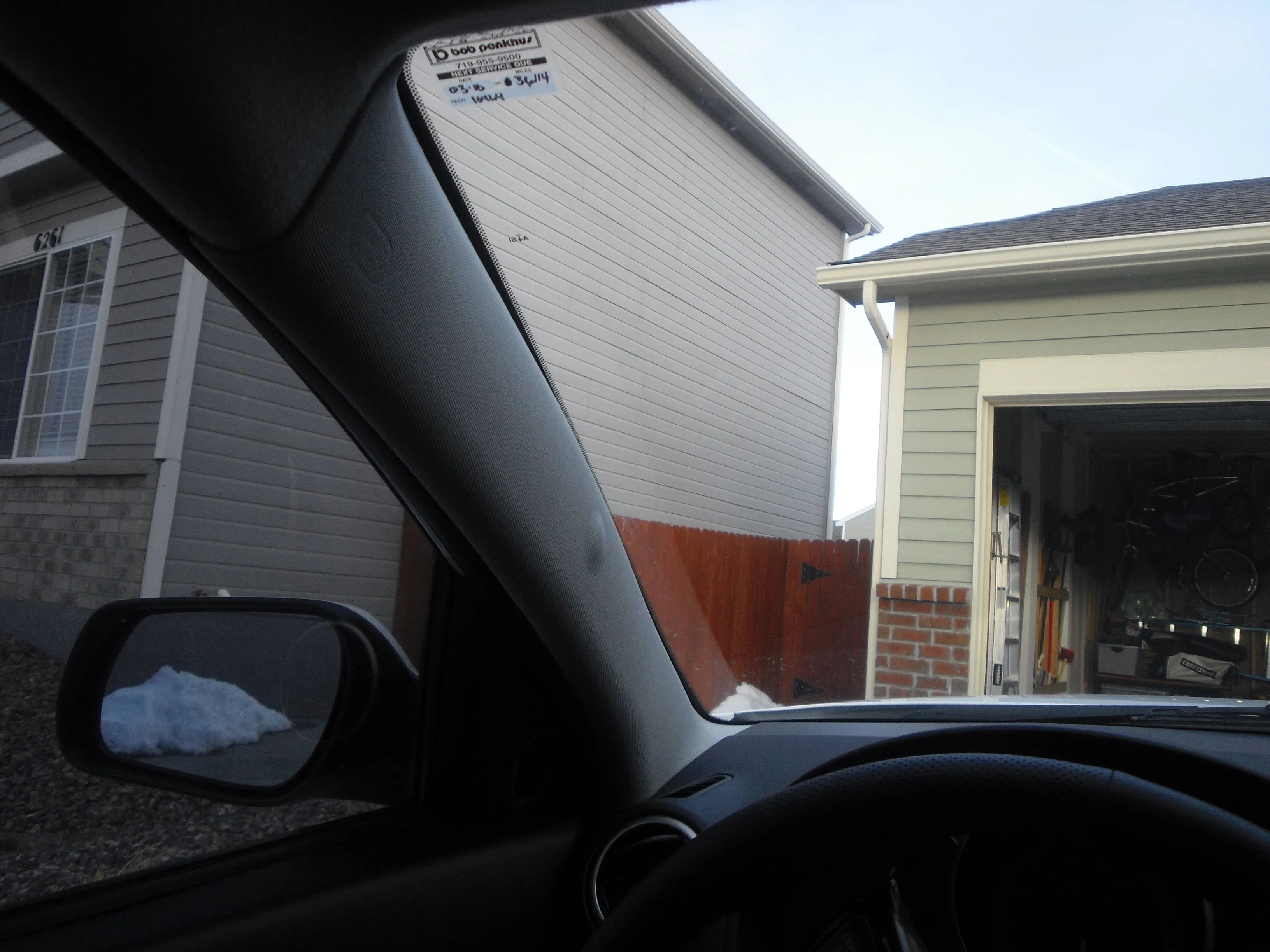

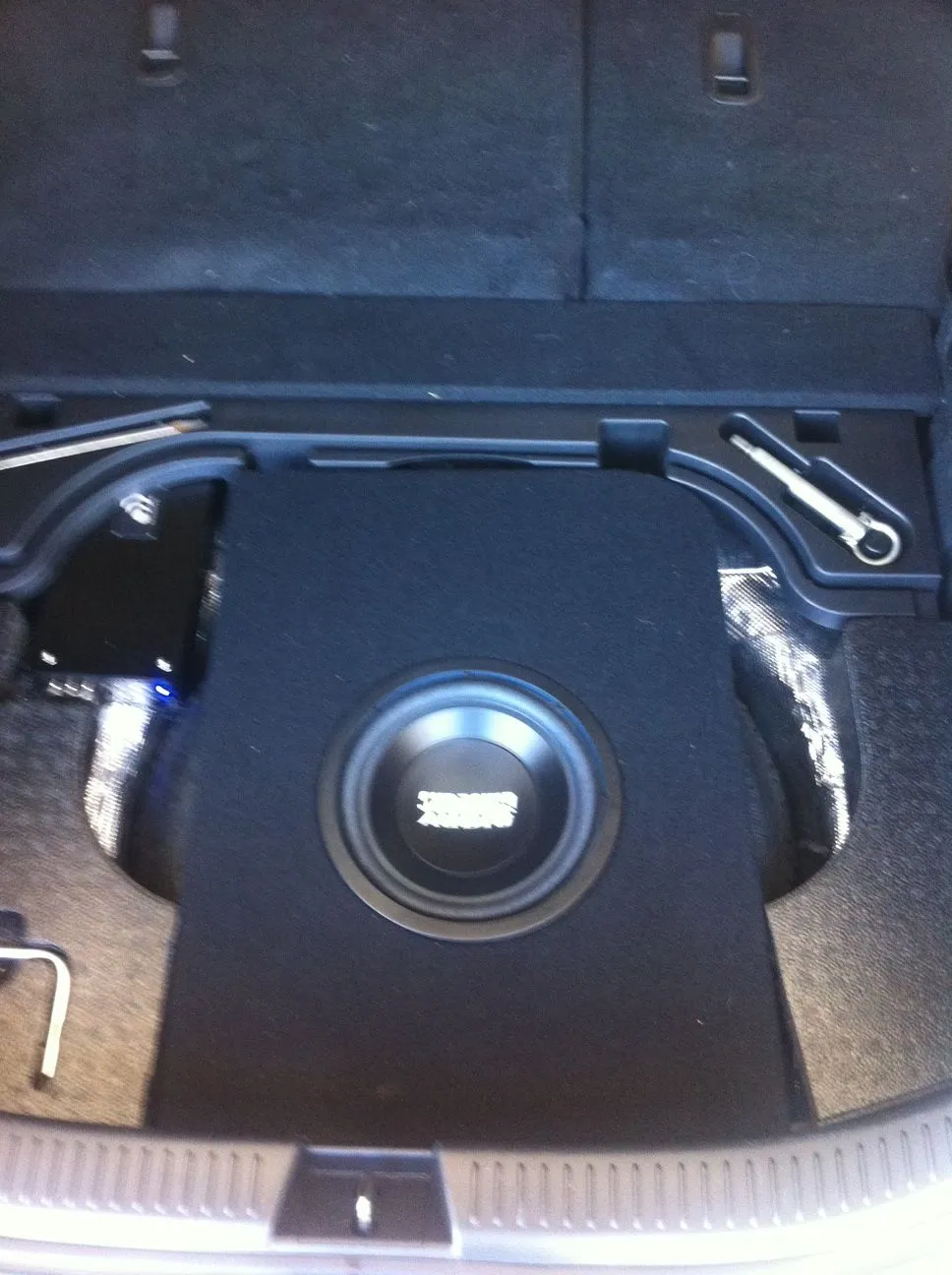

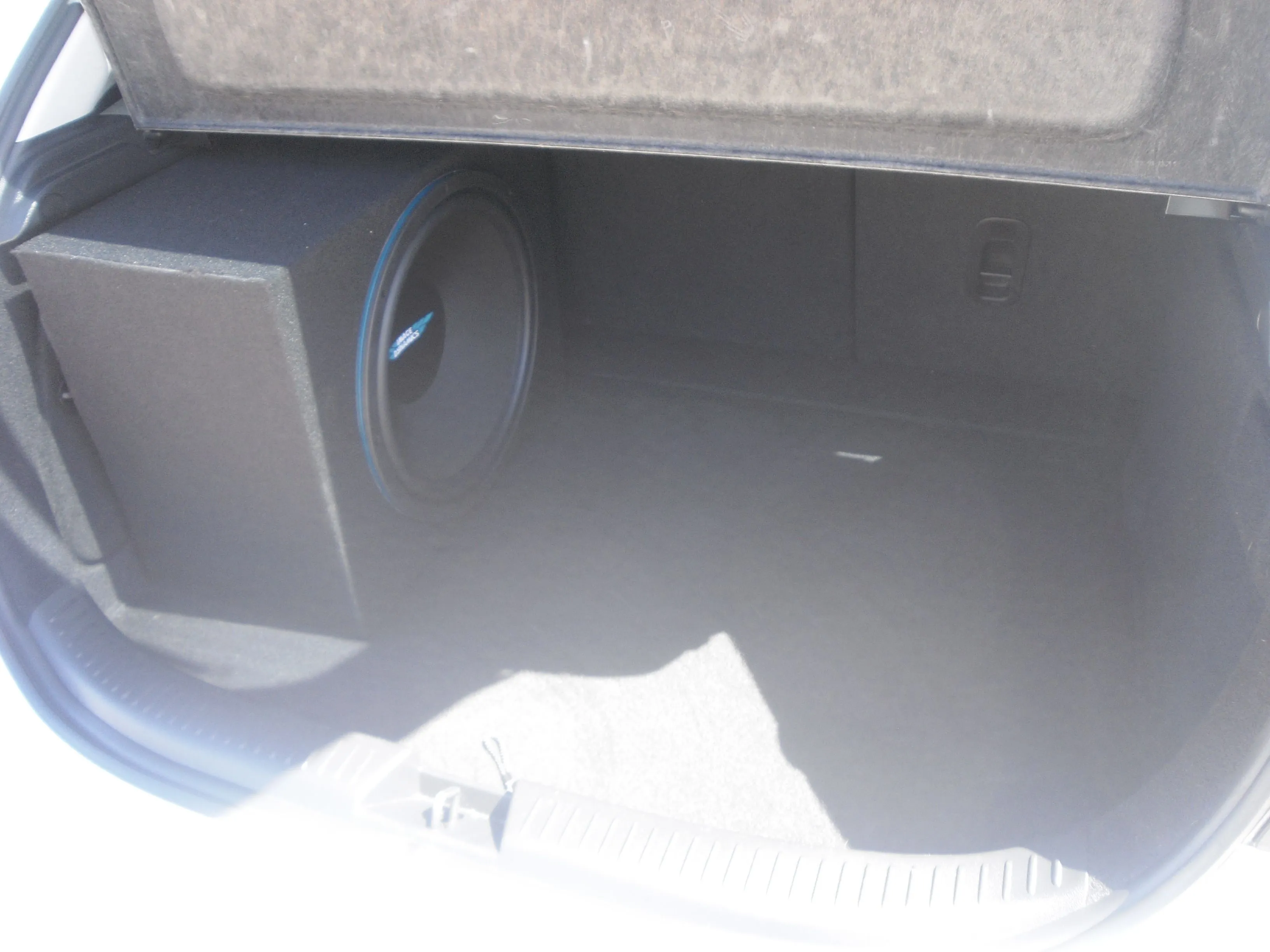

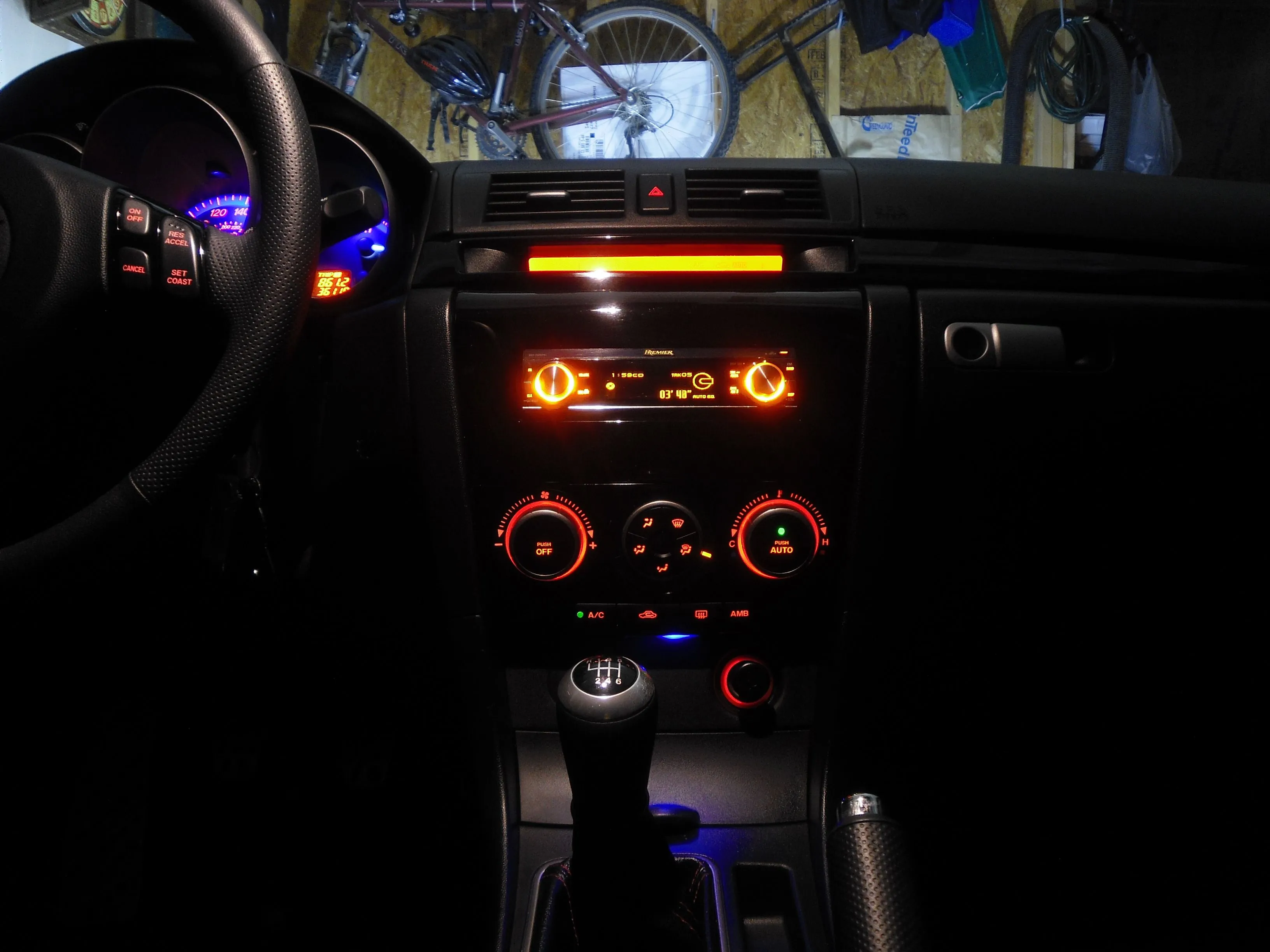

Some finished pics. Sub enclosure is temporary. Not sure if I want to keep it. Like to keep things on the down low.


Attachments

  • CIMG1124.webp
    354.4 KB · Views: 307
  • CIMG1122.webp
    344.9 KB · Views: 325
  • CIMG1157.webp
    255 KB · Views: 330
  • CIMG1139.webp
    253 KB · Views: 302
  • CIMG1121.webp
    510.4 KB · Views: 336
Last edited:
wow that dash kit is pretty cool looking. I wonder if you would mind posting a quick how to for making something "piano black". I would really appreiciate it.

I am doing my mazda 3 as well here is the linkLINK

I would love to Pat, but Wayne Watkins at Car Toys in Park Meadows CO did it for me. Like everything, it looks better in person.

BTW, nice install. I have been following that.

Last edited:
