CX-5 on H&R alignment corrections

[Sandrock]

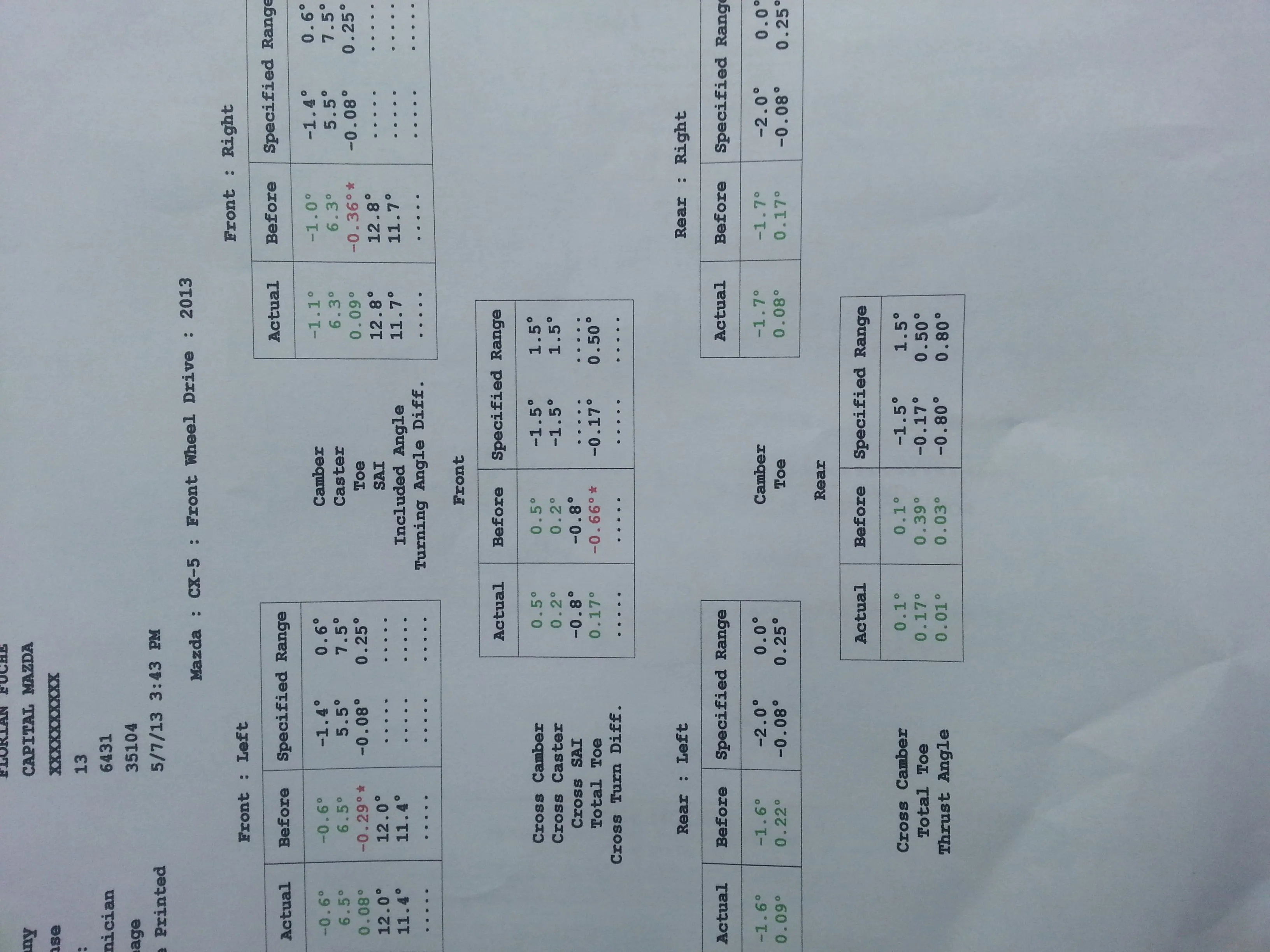

For those that asked.



[paris1]

So you're saying you're the only one who did not end up with too much negative camber on the rear after lowering? Wonder why.



[Sandrock]

So you're saying you're the only one who did not end up with too much negative camber on the rear after lowering? Wonder why.

Idk. I took it to the Mazda Dealership though.



[paris1]

How long have you had them on? How would you assess ride quality changes?



[pt00323i]

same as everyone else, mine is at -1.5, -1.6, other member is about the same -1.6, -1.7



[paris1]

same as everyone else, mine is at -1.5, -1.6, other member is about the same -1.6, -1.7

You're right, but OP's camber didn't change from before to after and are within "specified range" Your numbers, for a 2/12 post, were outside of normal:
Front
Toe: -0.17 to +0.33/.........before: -0.40/ after:0.06
Caster: 6.4.................. (not adjustable)/after:6.5
Camber: -0.33 to -0.36 ..........(not adj)/after:-0.7

Rear
Toe: -0.17 to +0.33/.........before: 0.17/ after:0.06
Camber: -0.85 to -1.0 ............(not adj)/after:-1.6

so after lowering you do need to do alignment to adjust the toe, as for the camber, is a little more than spec, but will help handling and just rotate your tire more often.
