2007~2015 Adding CX-9 Hood Struts

:
2009 Mazda CX-9 GT
Let us know how it goes if possible! 😁

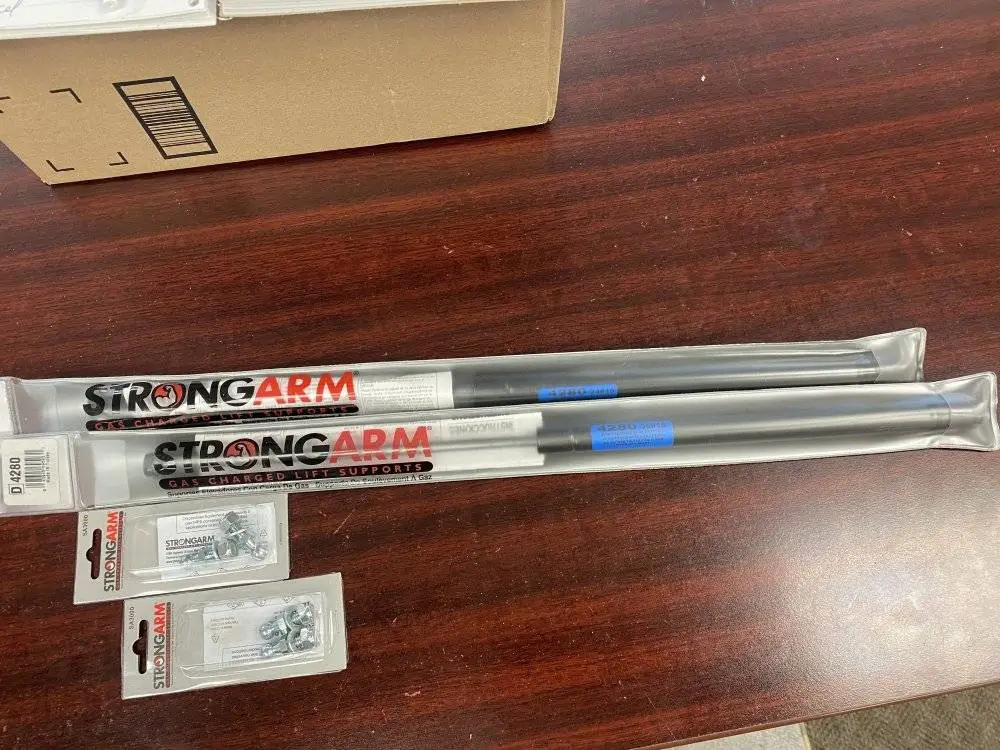

Will do. I have the parts, and just need to make 2 brackets.....



I will do a proper "How To" when I'm done.

:
2009 Mazda CX-9 GT
Any luck with this? I can't wait to see what you end up with!

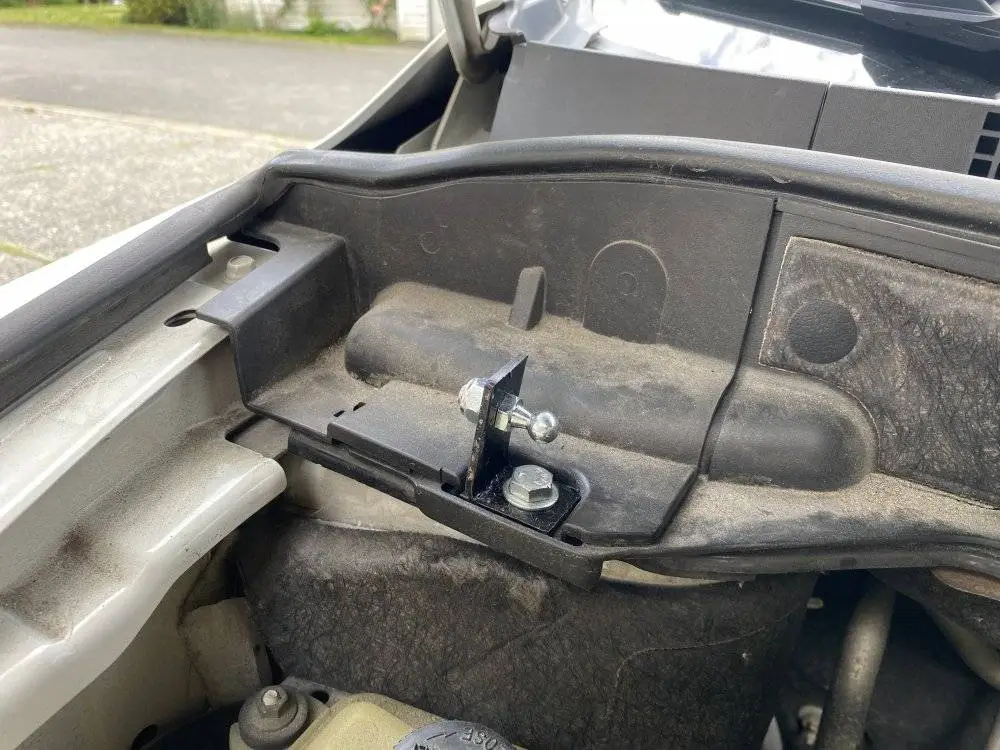

Got it all done last weekend, but upon the first test cycle, it failed. By just threading the ball mount into the push-pin hole in the hood, well, they don't stay put. Too much pressure for a weak attachment point. I have a few ideas but need to find time (and cooler weather) to see if any will work.


Attachments

  • 5E7CE1FA-CC7B-4B9F-B228-C965F622B7E0.jpeg
    111 KB · Views: 31
:
2009 Mazda CX-9 GT
Got her done for now. Had to remove one strut as I couldn't close the hood. Will try and find some struts with half the pressure.




I will work on a full write-up and get that posted soon.

:
2009 Mazda CX-9 GT
Found struts with less pressure, so this job is now complete.
