Surprise, it's been lowered

[cpspeed6]

So I bought my 07 Speed6 about a week ago, and discovered that it was pulling to the right. Also noticed that the negative camber on the rear wheels is significant. So I went into the dealer and asked the question if the car had been lowered and by who and when. This wasn't revealed at time of purchase. The car was lowered with aftermarket parts which should effectively void the warranty correct? Now once the alignment is done, if they discover that if it is out of spec range then we have a problem, or do I?
They sold me a car with remaining warranty, did not tell me it was lowered, so if there is a problem with the lowering then it's on them to repair at no cost in my opinion. In the meantime while I'm waiting for the alignment next week, I want to find out what the guy put in and how much it's been lowered.
Is there a way to measure drop without pullin off a wheel? I don't know what measurements to compare to with stock ride height.

BTW, I like the lowered stance, more concerned though if it was done properly, and if the negative camber is too much.



[tunersteve]

Post pics and your alignment sheet for more details if you could.



[cpspeed6]

Alignment's not being done till next week, but for now I'll get some pics and post them shortly, Thanks Steve.



[tunersteve]

The big question at this point is going to be which springs you have installed. If they're not designed specifically for the MS6 (which can be a problem) you need to go back and complain. At the very least, get you a set of stock MS6 springs, or the money for them and allow you to get proper parts.

As for your alignment specs, I'd guess your rear camber is in the area of -1.5 to -2.5 deg. on each side. I know my H&Rs left it at -2.5/-2.4 in the rear, and +-2.6 is allowed per factory specs IIRC.



[cpspeed6]

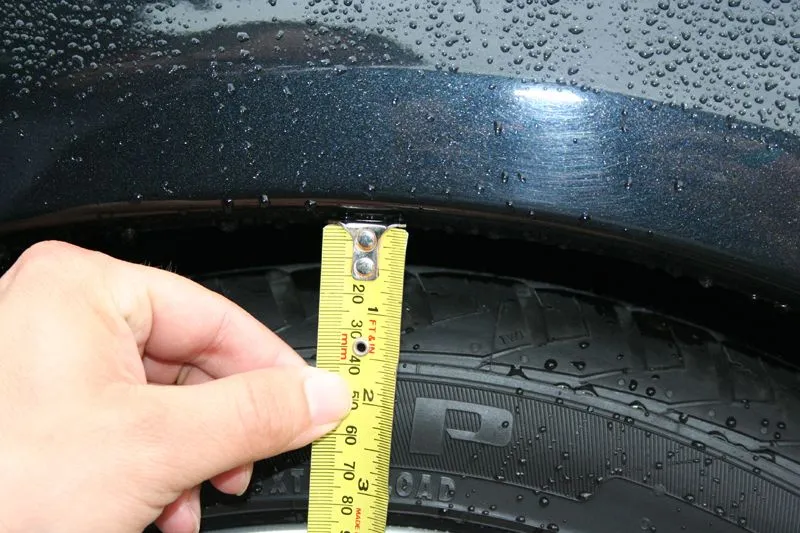

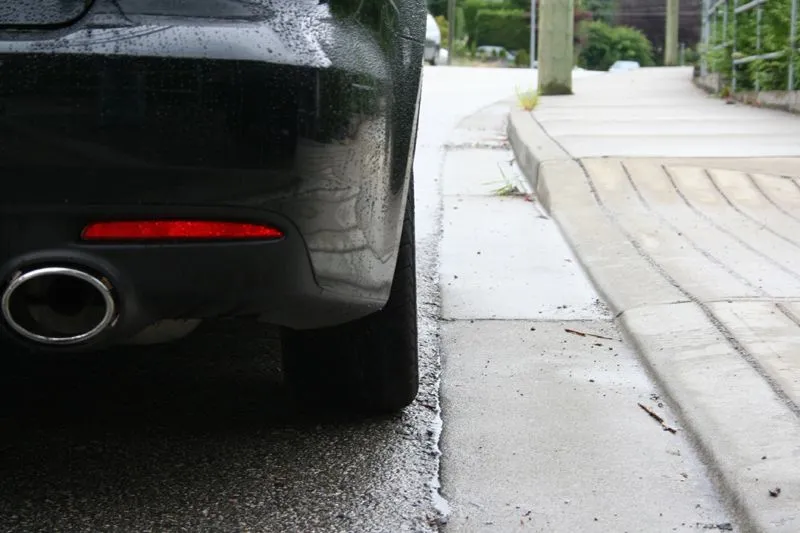

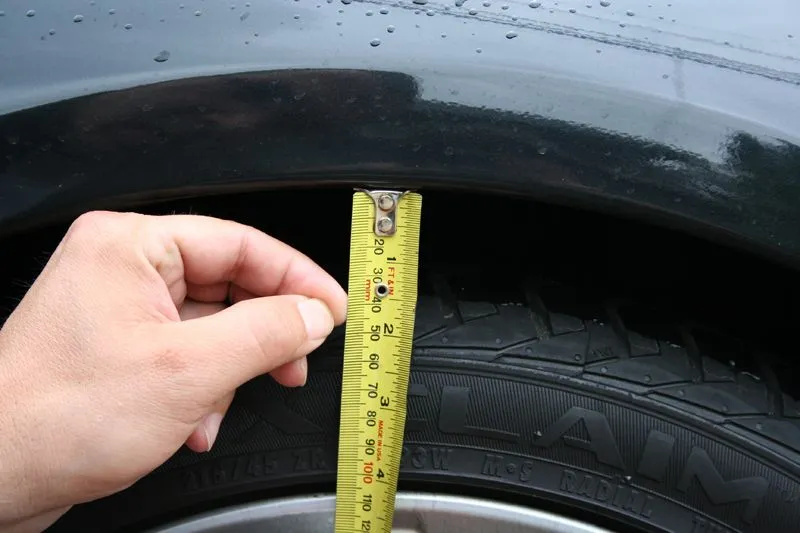

here's pics of the front and rear clearance and of the rear camber. About 1-1/2 iinches from the fender lip to rubber. Any thoughts?
And the tires are 215 45/ZR 18 on stock rims



[tunersteve]

If you can, slide under the rear and look at your springs, see what brand they are. Overall though, it looks pretty good.



[cpspeed6]

Will try and jam my head under there, so you think the camber looks ok?



[tunersteve]

Will try and jam my head under there, so you think the camber looks ok?

Looks like mine with the H&Rs to be honest. I'd prefer something a little less, but wait until you get an actual readout from the alignment.



[cpspeed6]

Couldnt read any numbers or brand name underneath. They're black in color if that means anything.



[tunersteve]

Couldnt read any numbers or brand name underneath. They're black in color if that means anything.

Not really sure which springs those are. Next step would be to remove one from the rear (which is easy really) and see if there are markings. If you need info, let me know.



[cpspeed6]

Anyone else have pics of their negative camber to compare with mine?



[Shokr171]

Eibach is the only company I know of that sells black springs for the MS6



[Igve2shtz]

Bc coilovers also have black rear springs. If you could, take as many pictures of the front or rear suspension and post them up and we will all take a look.



[Shokr171]

I know that, but id hope he could tell the difference between coilovers and springs so I didnt mention those.



[cpspeed6]

I will for sure as soon as it stops raining. Really appreciate everyones help on this.



[Igve2shtz]

Aren't H&Rs also black?



[tunersteve]

Aren't H&Rs also black?

No, they're more of a metallic gray color, and they're stamped with the info right on each spring.



[cpspeed6]

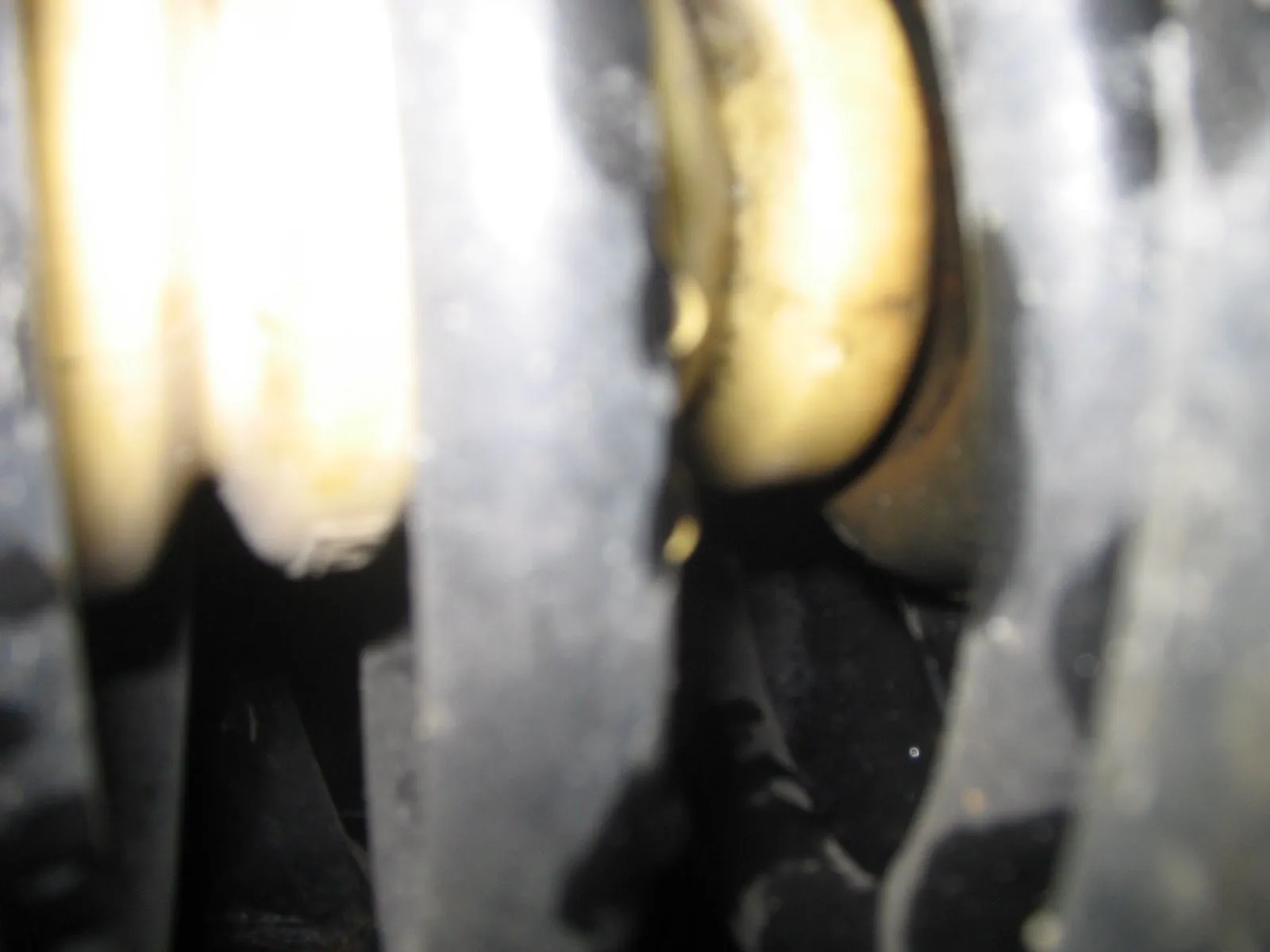

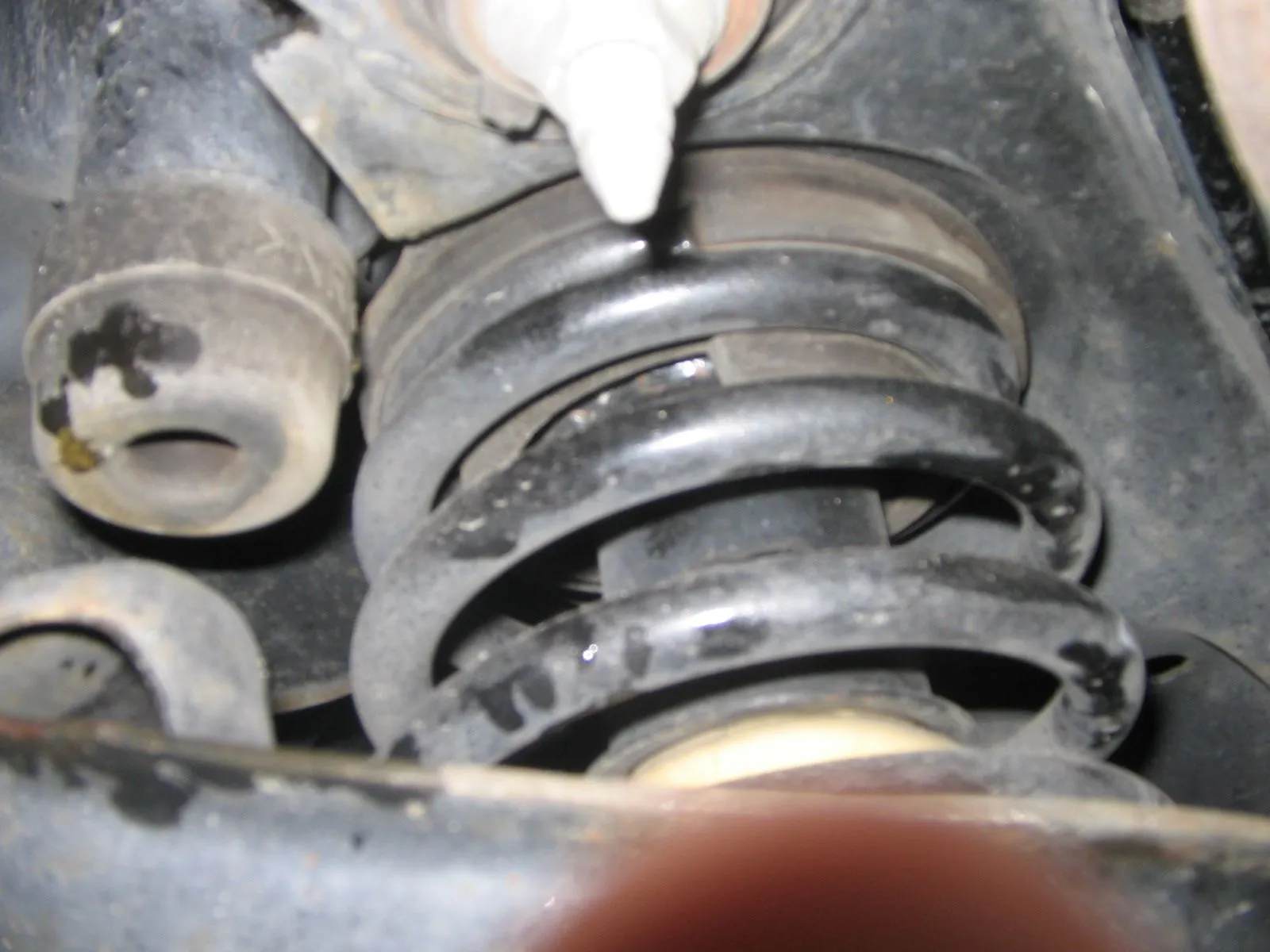

ok, lied in a puddle and stuck my camera up in there, please see attached.
If I have time after work tomorrow I'll take a wheel off and get a better look.



[Empurfektion]

To be honest it looks like mine. I have Eibach Pro-Kit Springs and they are the same color. I can tell where the dust is wiped off that you have little sparkles or w/e and I know the Pro-Kit has that cuz I installed them about 3 months ago.

I just think it looks a little more "slammed" then mine.

*** Edit ***

I just looked at your pics again and looked at mine on my cell phone and it's about the same. If I would guess, they are exactly what I have.



[protege02]

i think you should be fine with the springs just on your car. my car had eibach pro kit springs on it when i bought it, and no one ever said anything about it. also, aren't eibachs marked with a with logo on the springs? mine still has the eibach and something else on it.
