Raise boost and Gauge goes up?
- Thread starter ayang89
- Start date
- :
- 2003 Mazdaspeed Protege 1660, 2004 Winning Blue RX8, 2005 Mazda6
............................ I'm really interested to see how you have this connected.............
How should it be?

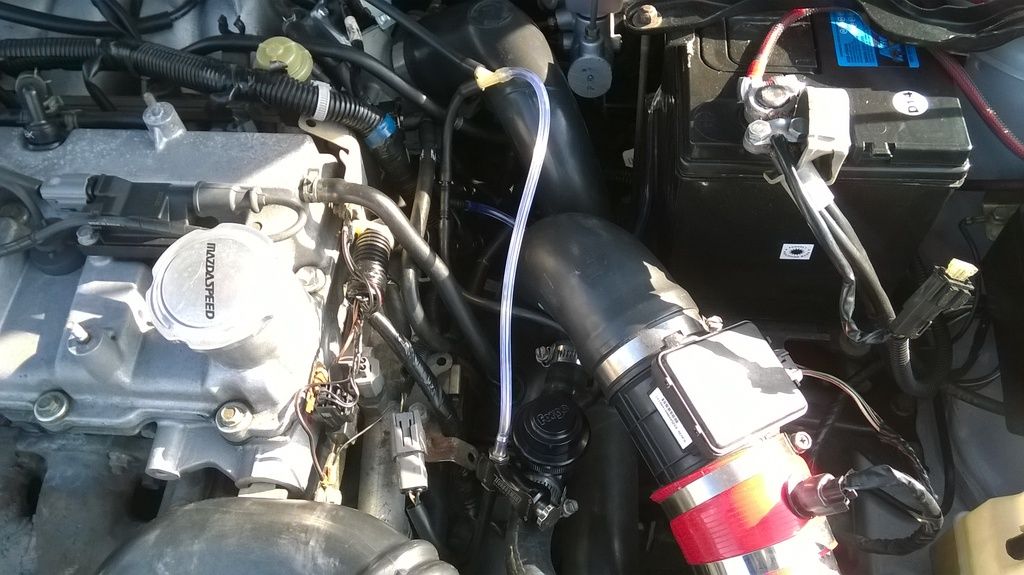

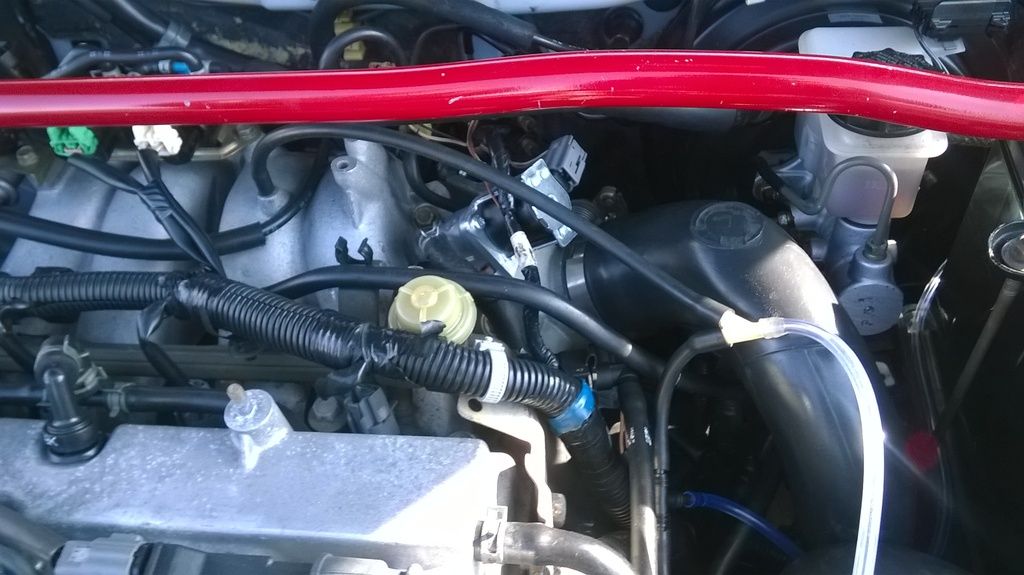

I think you should take that boost controller OUT until you replace a few things... those plastic intercooler pipes for one... I also think you should invest in a vacuum block. that vacuum point is fine but the tube routing is a big of a mess. with a block you can run dedicated lines to everything that needs a vac source.

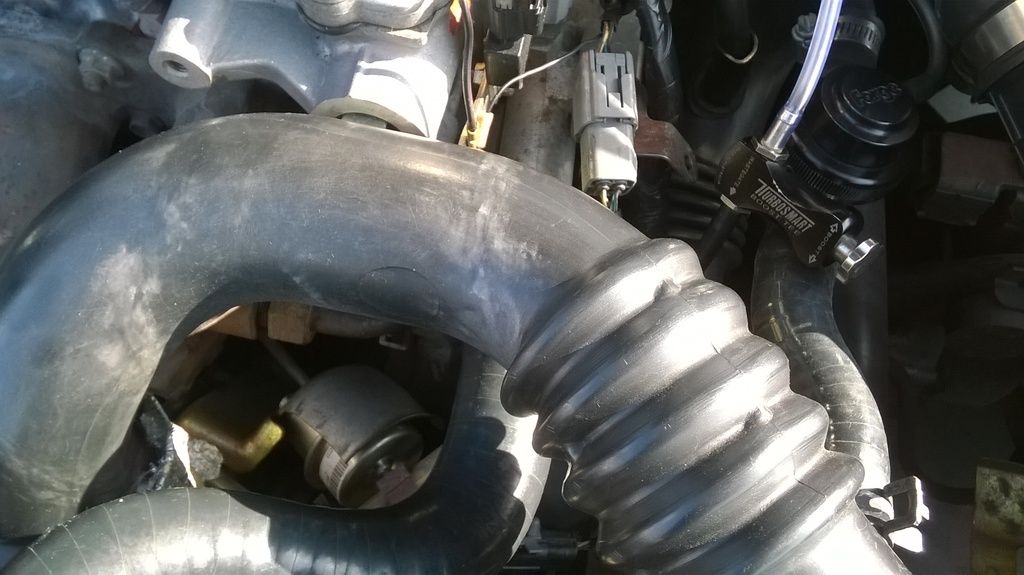

as long as the boost controller is not behind anything from the wga to the manifold it should work correctly.. not sure whats goin on with your vac gauge unless maybe your wga is bad and leaking. then when you adjust the boost, you adjust how much of a leak you have essentially.
vac block is nothing special. just pick up some small barbed fittings from a plumbing store, some hard plastic or aluminum barstock at least 1/2"thick, drill some holes, tap if you have the tool, otherwise the harder metal will tap the softer metal.
as long as the boost controller is not behind anything from the wga to the manifold it should work correctly.. not sure whats goin on with your vac gauge unless maybe your wga is bad and leaking. then when you adjust the boost, you adjust how much of a leak you have essentially.
vac block is nothing special. just pick up some small barbed fittings from a plumbing store, some hard plastic or aluminum barstock at least 1/2"thick, drill some holes, tap if you have the tool, otherwise the harder metal will tap the softer metal.
Yeah, bought the car like this a month ago. Maybe it is my wastegate. But when I blow into the tube no air goes through?
And yeah. When I adjust boost up, it gets closer to 0. Weird.
- :
- 2003 Mazdaspeed Protege 1660, 2004 Winning Blue RX8, 2005 Mazda6
Ha! You have an MSM cap, too. I had that cap on my car since I got it and never knew where it came from until my buddy got an MSM and says to me one day, "that's an msm cap"...
But back on topic...
I wouldn't even begin adjusting the boost if you're in stock trim. You're just asking for trouble. And unfortunately you're too far away from me for me to buy the car when it sends a rod through the block. So, don't do that.
But back on topic...
I wouldn't even begin adjusting the boost if you're in stock trim. You're just asking for trouble. And unfortunately you're too far away from me for me to buy the car when it sends a rod through the block. So, don't do that.
hornsfan10609
Certified Mazda Tech
- :
- 2003.5 Mazdaspeed Protege x2
I'm surprised you didn't know that. Pro-tip, there is an allen set screw on the bottom so you can turn the 'mazdaspeed' lettering straight, unlike the 07-09 MS3 cap which is always crooked.
+1 as I said in the other thread, MBCs aren't a great idea with a stock engine. Especially if you don't know what is going on with the car. BTW that is a very clean engine bay, can't believe the wiring harness and parts look so new. Definitely was garage kept.
+1 as I said in the other thread, MBCs aren't a great idea with a stock engine. Especially if you don't know what is going on with the car. BTW that is a very clean engine bay, can't believe the wiring harness and parts look so new. Definitely was garage kept.
- :
- 2003 Mazdaspeed Protege 1660, 2004 Winning Blue RX8, 2005 Mazda6
There was one at some point and time that was probably the correct thread/pitch...... But someone installed one that wasn't the correct thread/pitch and it's also stripped, so I can't get it out. I always have an upside down 'Mazdaspeed'.
118k Original miles
Last edited:
hahaha thats funny
hornsfan10609
Certified Mazda Tech
- :
- 2003.5 Mazdaspeed Protege x2
The vac line should run off the port on top of the intake manifold to a T fitting, one of the lines off the T runs to the bypass valve, the other runs to the wastegate. The boost gauge should be T'd off a different vacuum line on the intake manifold, avoid running too many sources off the same vac line. A vacuum block on the brake booster vac line is really the way to go so each source can get the same vac reference.
