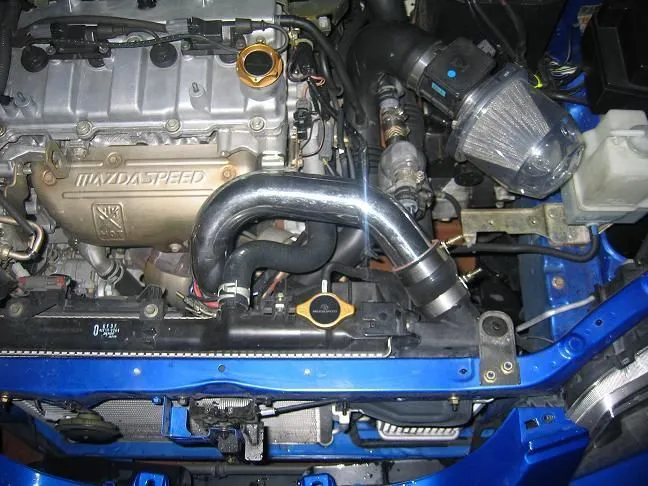

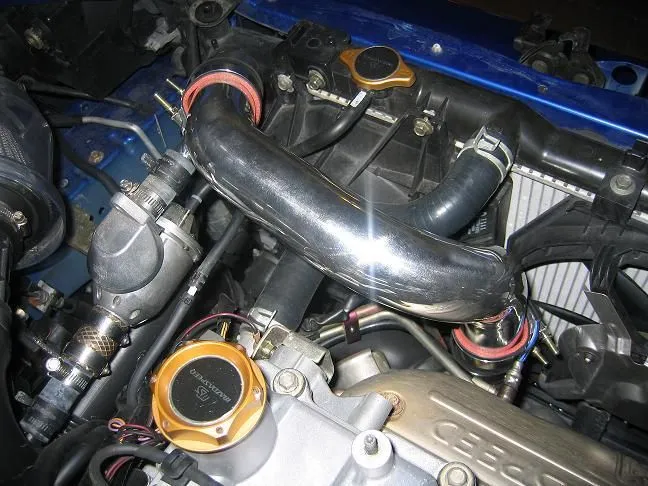

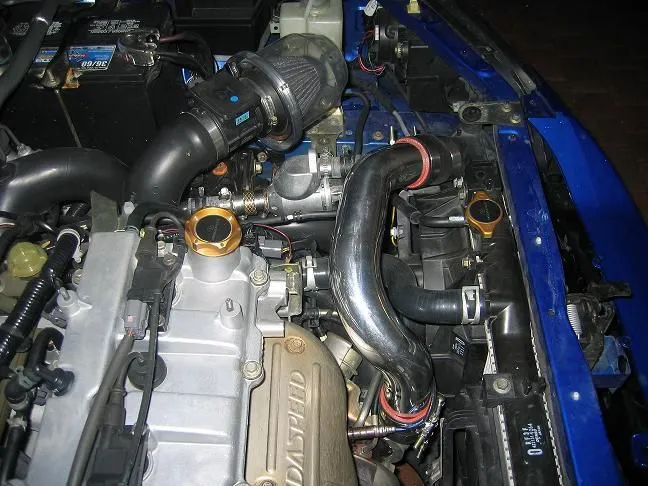

NEW Aluminum Hardpiping Kit in 2.25" Mendral Bent
- Thread starter StreetUnit
- Start date
- Status
StreetUnit
Banned
- :
- 2003.5 MSP
Thanks Lance!
StreetUnit
Banned
- :
- 2003.5 MSP
Hot pipes can ship tomorrow. If you guys have a cracked pipe and need it to go out seperate from the cold pipes, email cullen@**********.com your order number or last name and it will ship.
StreetUnit
Banned
- :
- 2003.5 MSP
INSTALL GUIDE, included with the kit, just a heads up
**PLEASE READ IN FULL**
Street Unit Performance Seamless Intercooler Piping Kit
MAZDASPEED Protege
If you purchased the piping separately, only refer to that specific pipe information.
Turbo to Intercooler Pipe Includes:
2 x High Performance Transition Silicone Hoses (2.25 to 2.00)
2 x 2.25 T-Bolt Clamps (for use on the 2.00 end of the transition silicone hose)
2 x 2.50 T-Bolt Clamps (for use on the 2.25 end of the transition silicone hose)
Intercooler to Throttle Body Pipe Includes:
1 x High Performance Transition Silicone Hose (2.25 to 2.00)
1 x 2.50 45 High Performance Silicone Hose Elbow
2 x 2.75 T-Bolt Clamps (for use on the 2.50 45 degree silicone elbow hose)
1 x 2.50 T-Bolt Clamp (for use on the 2.25 end of the transition silicone hose)
1 x 2.25 T-Bolt Clamp (for use on the 2.00 end of the transition silicone hose)
BEFORE INSTALL
T-BOLT CLAMP SIZES ARE ENGRAVED ON TO THE SIDE OF EACH CLAMP
MAKE SURE TO USE THE CORRECT SIZE CLAMP FOR EACH SIZE HOSE
MATCH ALL HOSES AND CLAMPS TO BE SURE NOT TO USE A CLAMP IN THE INCORRECT LOCATION
TAKE YOUR TIME ON THE INSTALL TO AVOID SCUFFING
THE POLISHED ALUMINUM
INSTALL
IF YOU DO NOT THINK YOU ARE CAPABLE, HAVE THE KIT INSTALLED PROFESSIONALLY
STOCK PIPING MAY BE DIFFUCULT TO REMOVE, TRY BACK & FORTH AND CIRCULAR MOTIONS WHILE PULLING OFF
ALUMINUM PIPING DOES NOT FLEX LIKE THE STOCK PIPING, THERE WILL BE A TIGHT FIT
IF NEEDED, LOOSEN INTERCOOLER BOLTS FROM RADIATOR TO ALLOW FOR MORE MOVABILITY
PUT THE SILCONE HOSES ON THE TURBO AND INTERCOOLER OR INTERCOOLER AND THROTTLE BODY FIRST
DONT FORGET THE CLAMPS! LOOSELY PUT THE CLAMPS IN THE CORRECT LOCATIONS
MANEUVER THE ALUMINUM PIPING INTO THE HOSES
FOR THE INTERCOOLER TO THROTTLE BODY PIPE, ADJUST PIPE AWAY FROM BRAKE MASTER CYLINDER
PUT THE CLAMPS IN PLACE AND TIGHTEN
RECOMMENDED AFTERMARKET PARTS TO BE USED WITH INTERCOOLER PIPING:
UPGRADED ALUMINUM SIDE MOUNT INTERCOOLER & ENGINE MOUNTS
**PLEASE READ IN FULL**
Street Unit Performance Seamless Intercooler Piping Kit
MAZDASPEED Protege
If you purchased the piping separately, only refer to that specific pipe information.
Turbo to Intercooler Pipe Includes:
2 x High Performance Transition Silicone Hoses (2.25 to 2.00)
2 x 2.25 T-Bolt Clamps (for use on the 2.00 end of the transition silicone hose)
2 x 2.50 T-Bolt Clamps (for use on the 2.25 end of the transition silicone hose)
Intercooler to Throttle Body Pipe Includes:
1 x High Performance Transition Silicone Hose (2.25 to 2.00)
1 x 2.50 45 High Performance Silicone Hose Elbow
2 x 2.75 T-Bolt Clamps (for use on the 2.50 45 degree silicone elbow hose)
1 x 2.50 T-Bolt Clamp (for use on the 2.25 end of the transition silicone hose)
1 x 2.25 T-Bolt Clamp (for use on the 2.00 end of the transition silicone hose)
BEFORE INSTALL
T-BOLT CLAMP SIZES ARE ENGRAVED ON TO THE SIDE OF EACH CLAMP
MAKE SURE TO USE THE CORRECT SIZE CLAMP FOR EACH SIZE HOSE
MATCH ALL HOSES AND CLAMPS TO BE SURE NOT TO USE A CLAMP IN THE INCORRECT LOCATION
TAKE YOUR TIME ON THE INSTALL TO AVOID SCUFFING
THE POLISHED ALUMINUM
INSTALL
IF YOU DO NOT THINK YOU ARE CAPABLE, HAVE THE KIT INSTALLED PROFESSIONALLY
STOCK PIPING MAY BE DIFFUCULT TO REMOVE, TRY BACK & FORTH AND CIRCULAR MOTIONS WHILE PULLING OFF
ALUMINUM PIPING DOES NOT FLEX LIKE THE STOCK PIPING, THERE WILL BE A TIGHT FIT
IF NEEDED, LOOSEN INTERCOOLER BOLTS FROM RADIATOR TO ALLOW FOR MORE MOVABILITY
PUT THE SILCONE HOSES ON THE TURBO AND INTERCOOLER OR INTERCOOLER AND THROTTLE BODY FIRST
DONT FORGET THE CLAMPS! LOOSELY PUT THE CLAMPS IN THE CORRECT LOCATIONS
MANEUVER THE ALUMINUM PIPING INTO THE HOSES
FOR THE INTERCOOLER TO THROTTLE BODY PIPE, ADJUST PIPE AWAY FROM BRAKE MASTER CYLINDER
PUT THE CLAMPS IN PLACE AND TIGHTEN
RECOMMENDED AFTERMARKET PARTS TO BE USED WITH INTERCOOLER PIPING:
UPGRADED ALUMINUM SIDE MOUNT INTERCOOLER & ENGINE MOUNTS
Last edited:
speedcicle
Member
- :
- 2003 mazdaspeed protege. Spicy orange mica
Did the pipes start getting shipped yet??
StreetUnit
Banned
- :
- 2003.5 MSP
Hot pipes are here. If you guys need the hot pipe, lmk and I will have it sent out.
speedcicle
Member
- :
- 2003 mazdaspeed protege. Spicy orange mica
********** said:
Whats the eta for the cold pipes don't want to be a pain just getting excited to put in the intercooler, pipes and relocation kit......
MazdaSpeedSter
Member
- :
- Laser Blue MSP #2733_sold
