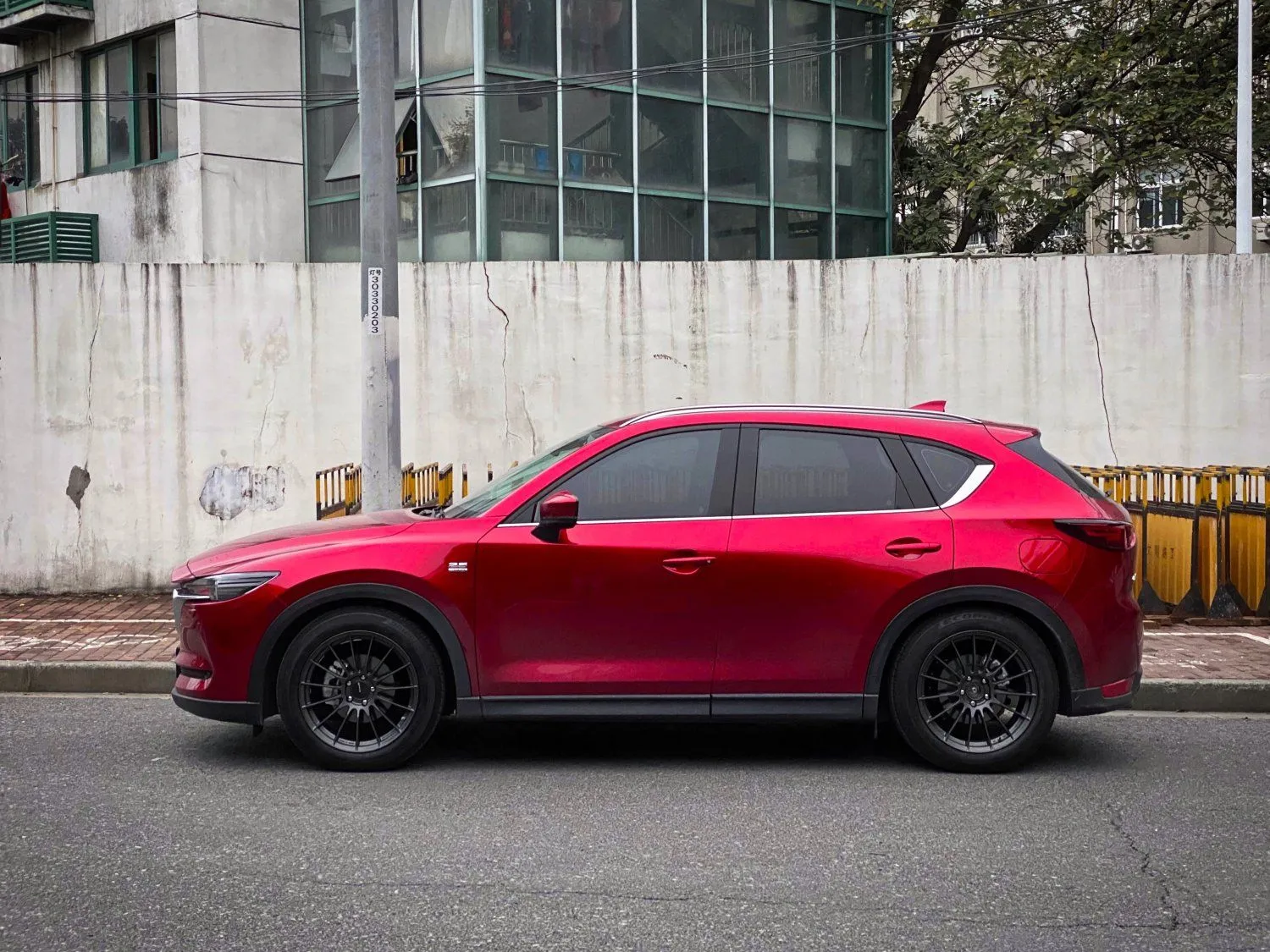

I'm a owner of CX-5 from Shanghai China. This is it's appearance now.
First of all , sorry about my English skill.
After I upgraded my suspension for RS-R best i coilovers , the body was lowered about 10cm.( without any other chassis parts replaced)
Then the clunking noise came from front end when over bumps.

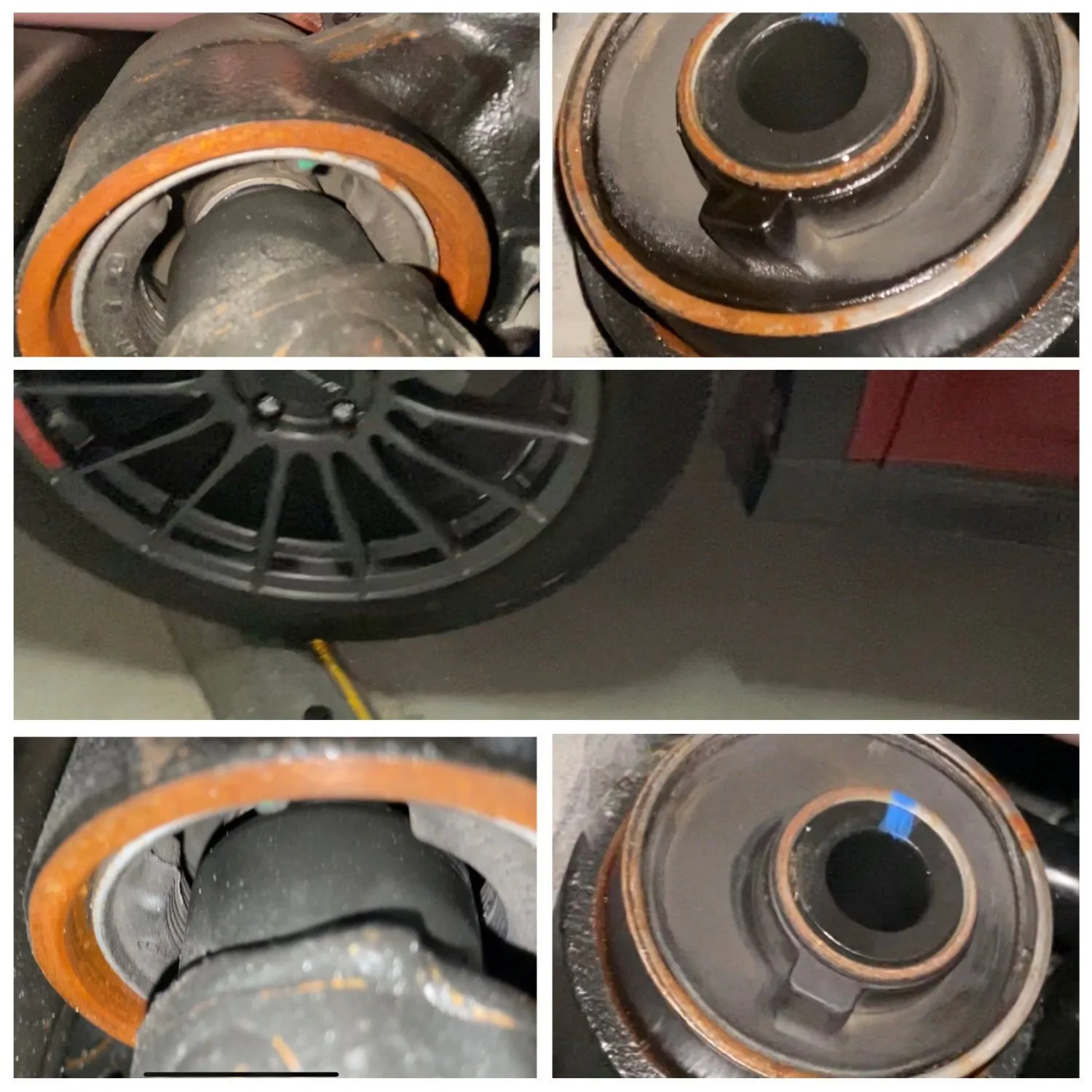

Let's see some photos I shot when wheels landing.
(all those wet from WD40 ,not oil stains)

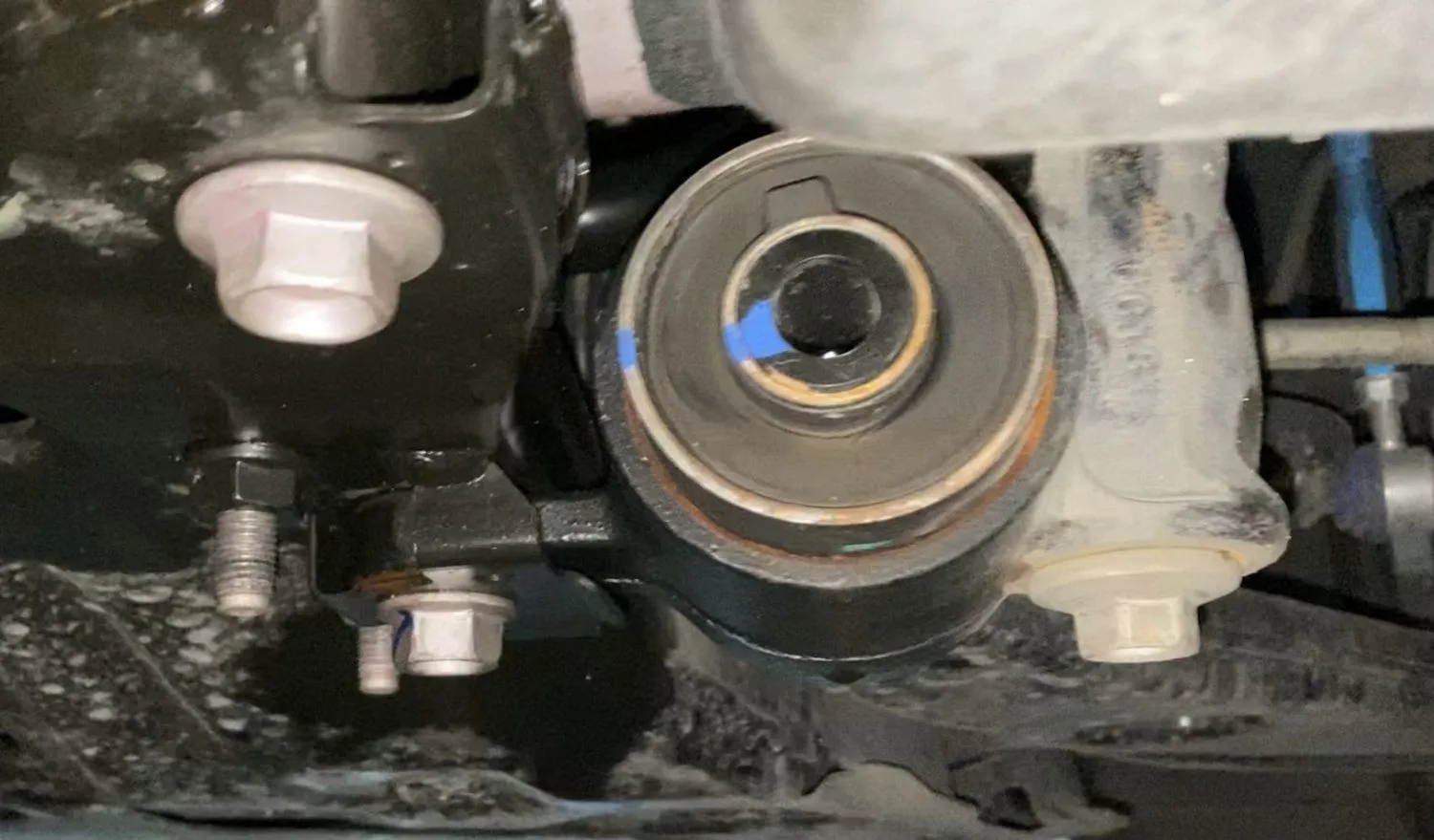

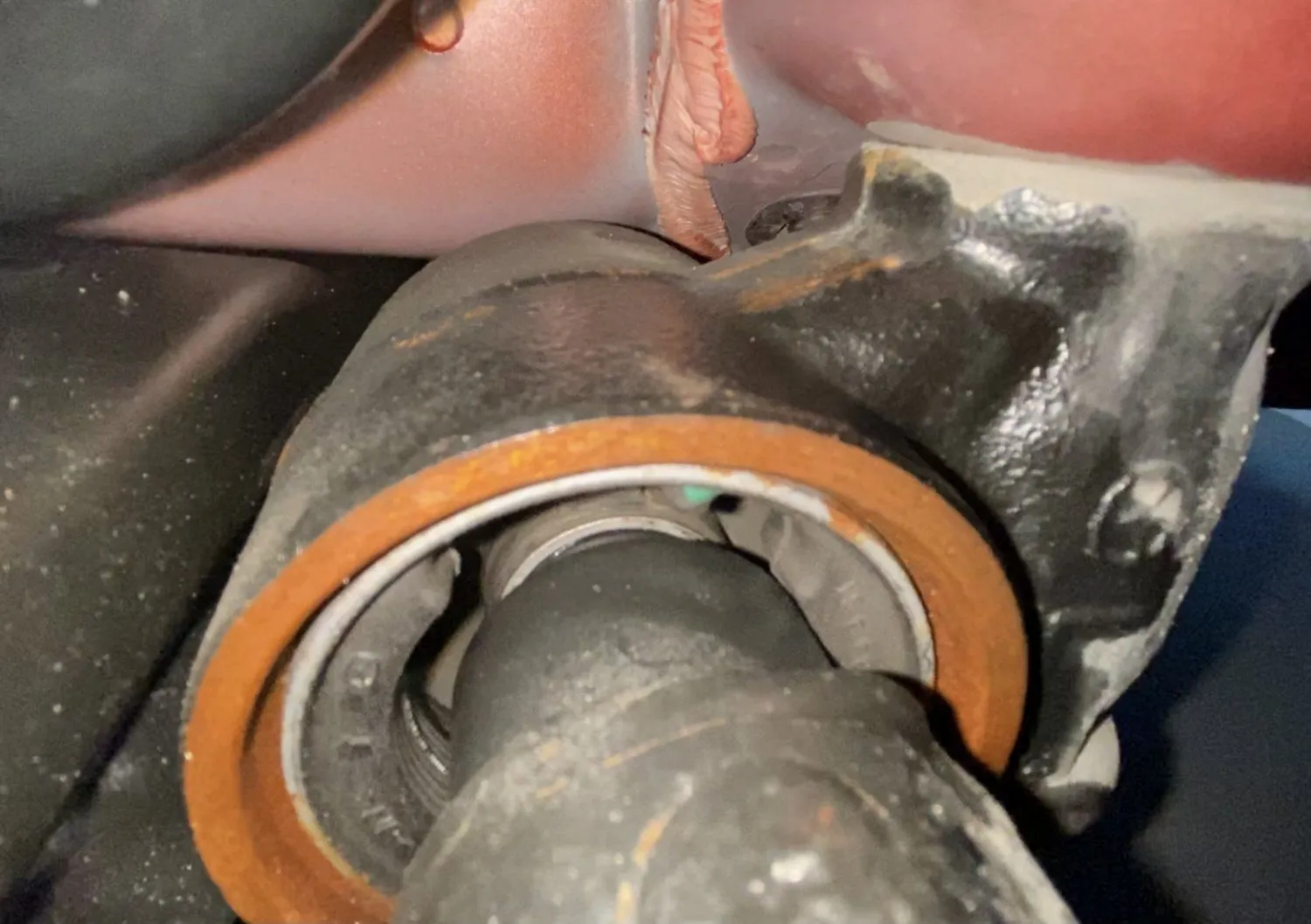

(left LCA bushing )

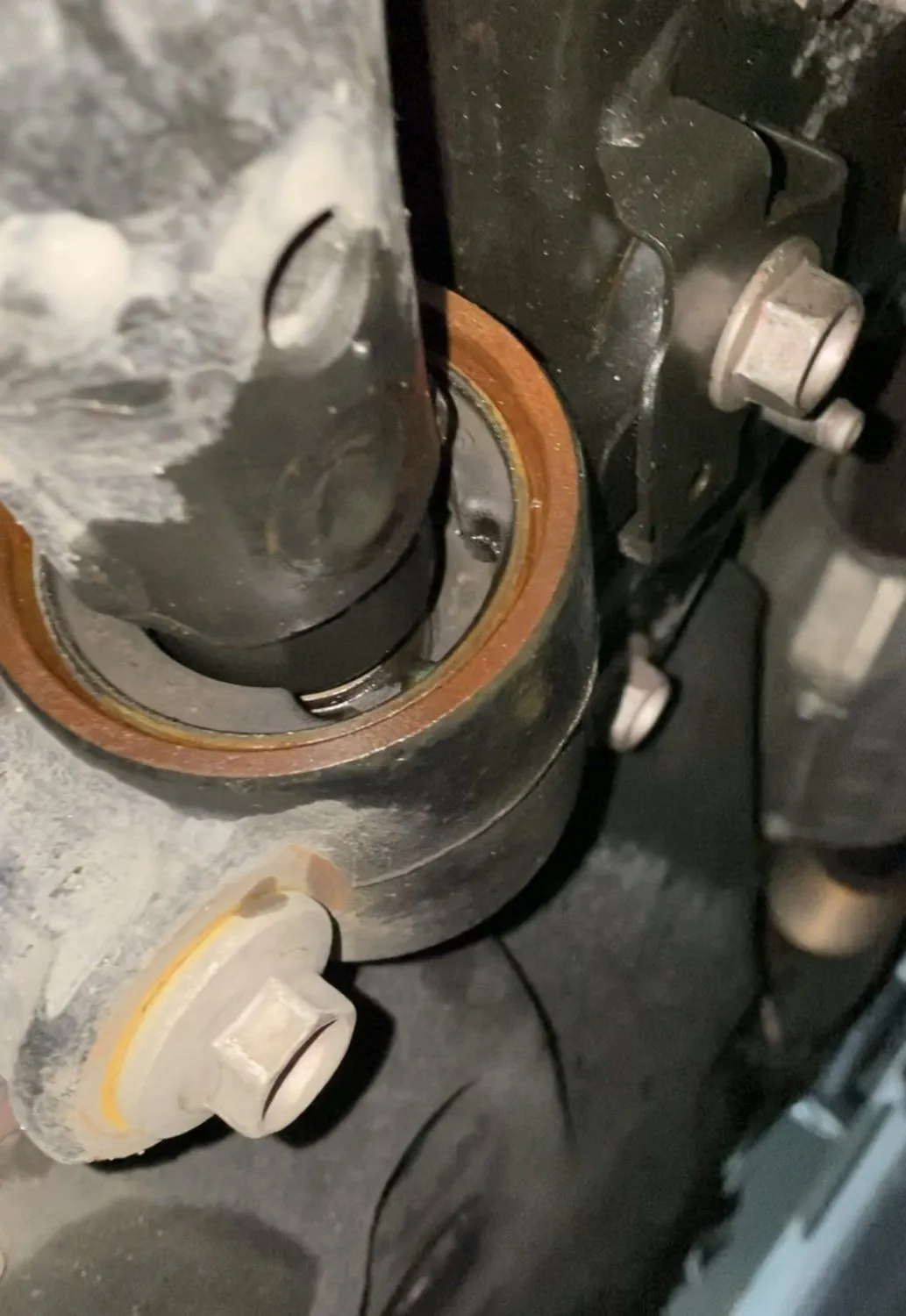

(left LCA bushing)

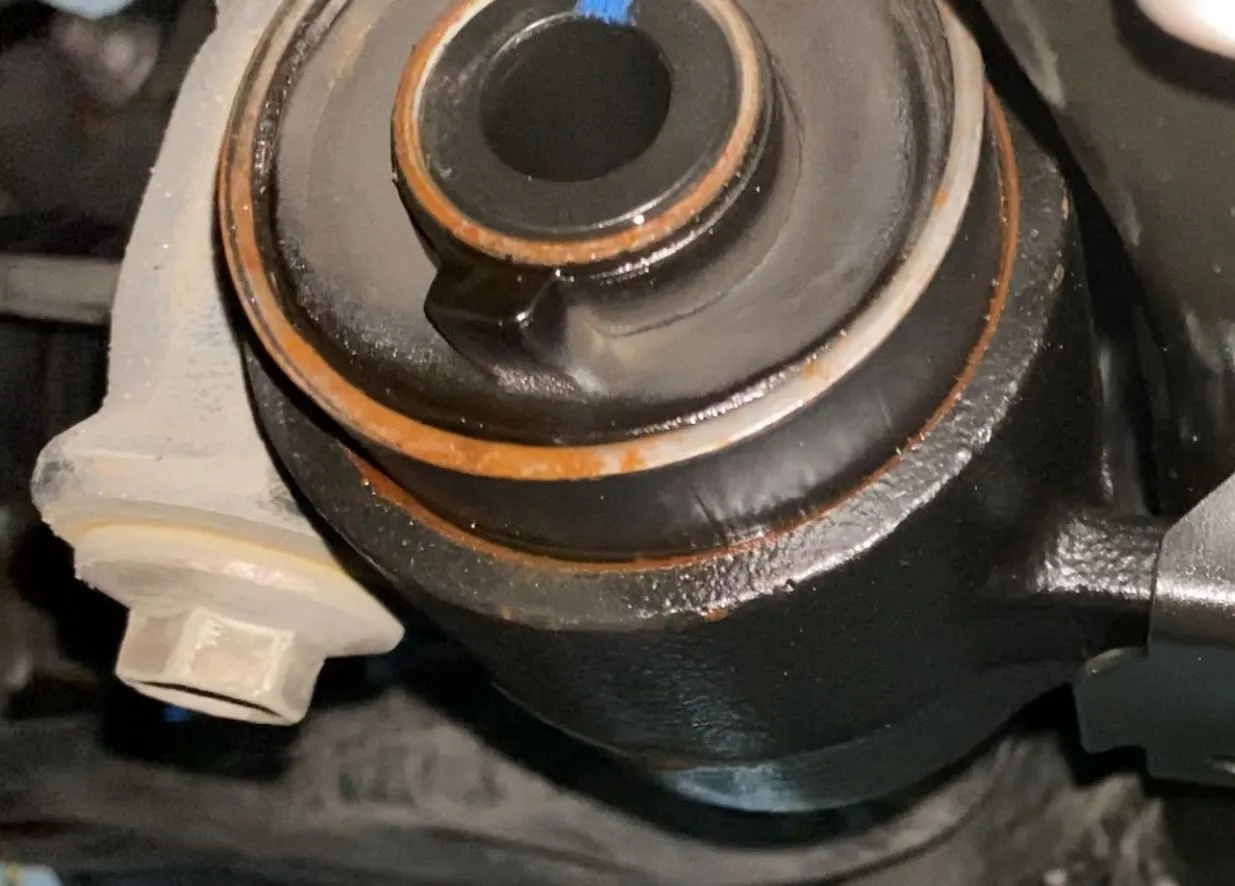

(right LCA bushing)

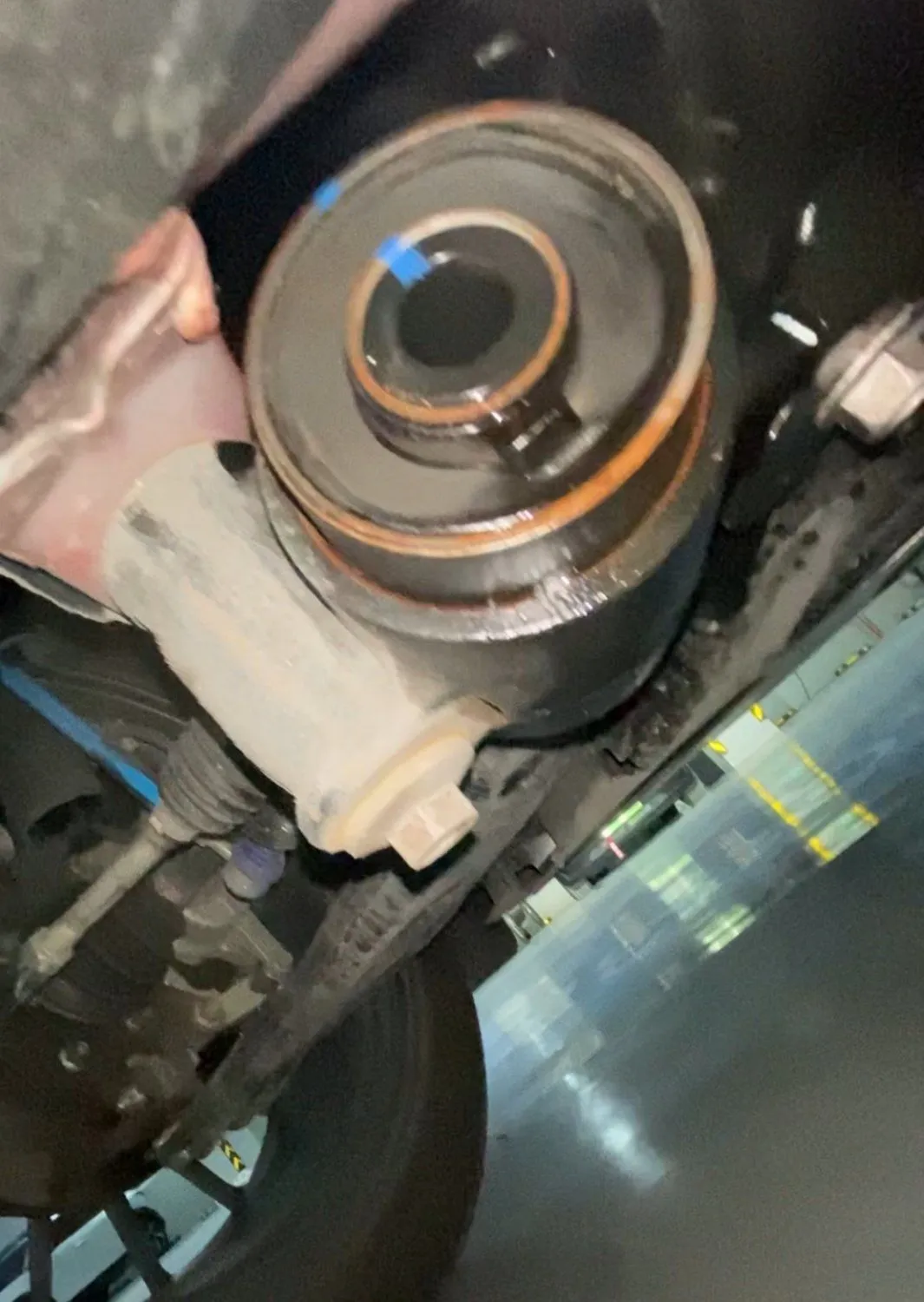

(when the left wheel rolled over the speed bump , see the difference)
I'm not sure those are the reason why clunking occurred .
I still have no idea why both LCAs change the angle after lowering the car.
Next step, I'll replace them for Hardrace LCA with hard rubber bushings. I wish they will be corrected after that and clunking noise disappeared .
