Current Engine bay pics everyone

[FunkyBuddha]

Jeezuz...do you drive your car? LOL..how do you keep it that clean?

No great mods, just clean.



[L8R]

Photoshop! Lol jp Did you paint the motor mount yourself?



[bazooka joe]

he drives the car like 3 miles a day and only in good weather (actually i've been with him when it's rained once!!) the car is spot less..with about 30k miles or something...



[Boston5761]

Sweet engine bays...



[sephiroth]

he drives the car like 3 miles a day and only in good weather (actually i've been with him when it's rained once!!) the car is spot less..with about 30k miles or something...

no kidding, it looks like it's been sitting in some clean room in a wearhouse @ area-51 waiting to be discovered >_>



[MiaTurbo]

not current, but here's my first turbo install pic:



[Salmon_Rob]

hehe osmosis ftw



[bazooka joe]

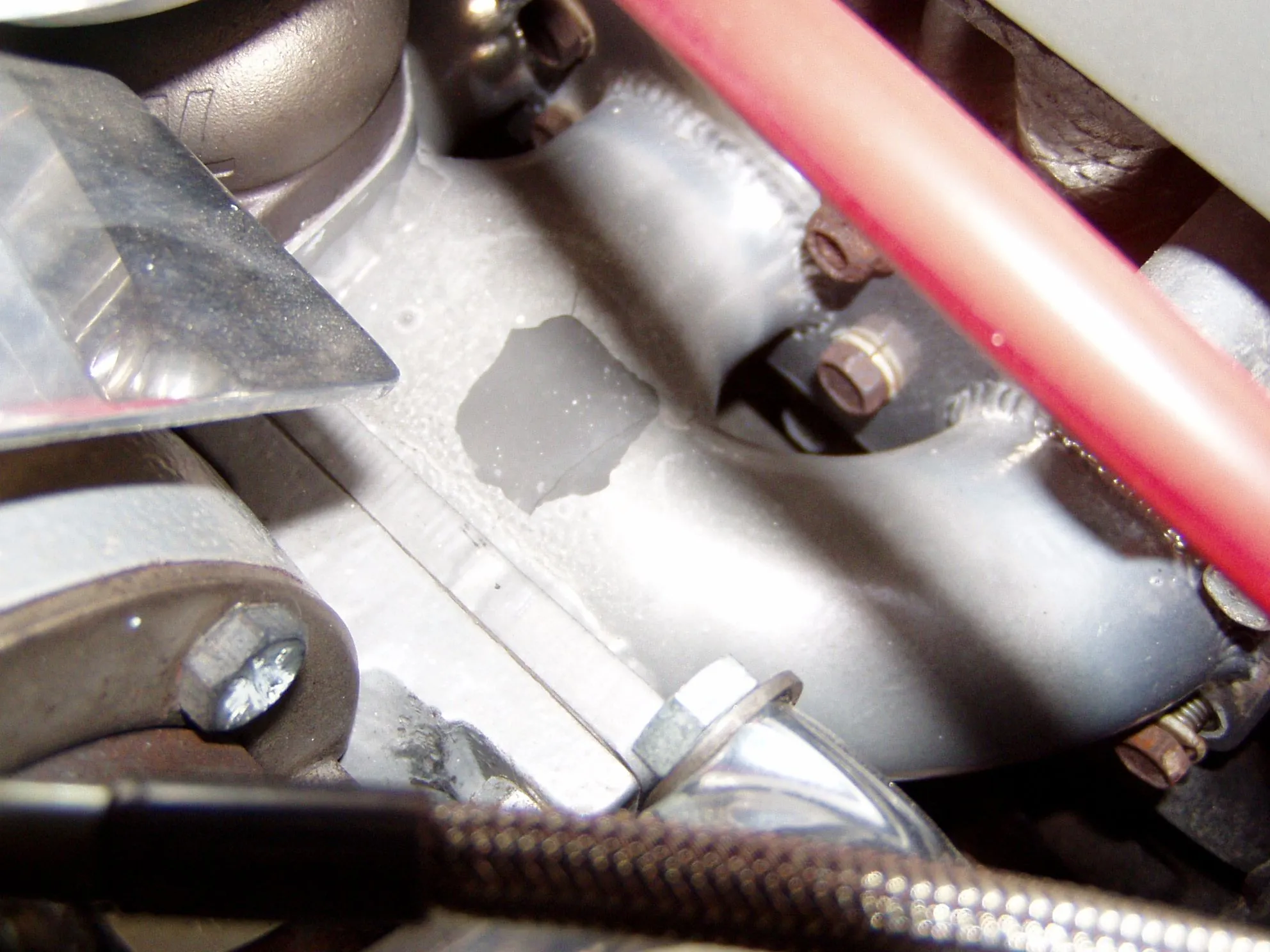

today...getting cracked mani fixed...all 3 welds cracked should have it back mon, off to jet hot http://www.jet-hot.com/Pages/coatings.html tuesday back and installed mid next week!



[macklum]

today...getting cracked mani fixed...all 3 welds cracked should have it back mon, off to jet hot http://www.jet-hot.com/Pages/coatings.html tuesday back and installed mid next week!

You better replace the exhaust mani gasket while you are at it , you have major leakage around cyl 1 and 4 .



[LinuxRacr]

May want to get the manifold flange fly-cut flat as well, as that may be the cause of said leakage.



[terbow]

and find a way to brace the turbo so the mani isnt taking the brunt of the weight. u can do it with heim joints and rods. not too hard.



[bazooka joe]

you guys are so helpful!! new gasket on order....fly cut? can you explain? ya, i think i should brace the turbo too....this guy i know who has several turbo'd cars, thinks some of the problem is the wastegate tube going into the downpipe (added back pressure?), he says cut it off and weld the down pipe closed??



[macklum]

you guys are so helpful!! new gasket on order....fly cut? can you explain? ya, i think i should brace the turbo too....this guy i know who has several turbo'd cars, thinks some of the problem is the wastegate tube going into the downpipe (added back pressure?), he says cut it off and weld the down pipe closed??

Fly cut is machining the surface so that the surface is flat . I am not sure of the process . As for bracing the turbo by all means , there should be some bolt holes in the block to allow you to attach and bracket to and then to the turbo . I cant see why the wastegate tubes needs to be changed or removed ,if anything the spent gasses from the turbo would help the wastegate gasses move along



[terbow]

alot of times the wg tube will crack cause its under pressure (weight) (where the tube from the mani connects to the gate) thats prolly why he wants u to remove it. if u brace the mani/turbo, you shouldsnt have as much of a problem but it still exists when u have rigid tubing used as joints



[SergMSP]

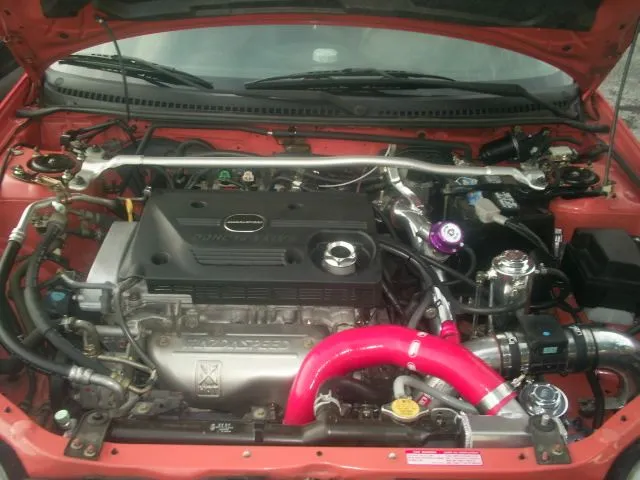

updated engine mods...before and after

thanks Alejo!



[Dpwhitehead1]

updated engine mods...before and after

thanks Alejo!

samco is purdy.



[yashooa]

Nothing fancy. Needs to be cleaned.



[Dpwhitehead1]

i don't understand. my engine bay seems like a cluster **** from hell compared to you guys

<a href="http://photobucket.com/" target="_blank"><img src="http://i25.photobucket.com/albums/c91/Boostdprotegelx/The%20Protege%20Story/protege004.jpg" border="0" alt="Photobucket - Video and Image Hosting"></a>(ignore the grounding system, i'm getting a new one.



[Kansei]

looks like someone needs a valve cover. Wow with no heat shield over your turbo doesn't your hood paint bubble?? or do you have heat shield on the underside of the hood?



[MSP#735]

valve cover, wire tuck, remove OR relocate the power steering and heat shield for the turbo and you will be on your way...

*not current*
