*cheap* DIY Urethane Motor Mount

[silvermsp]

If you are in a buget like I am here is a cheap way to do it your self motor mounts. i bought a liquid on ebay for $37 shipped. here are a couple of steps if intrested. also pics took with camera phone not the best but they will do..
tell me what ya think...

Will be needed:::
DIY 80A Urethane Motor Mount Inserts Kit

1. Duct Tape - Seals one side of the mount
2. Contact Cement - Helps the duct tape seal against greasy surfaces
3. Degreaser - Cleans the mount of grease and oil to ensure an easy project
4. Sand - in a box - vital to the project - don't skip this one.

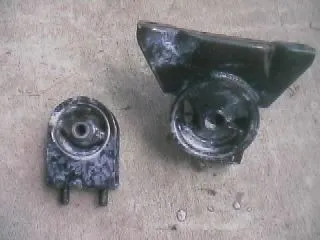

step 1. Take the mounts off the car..

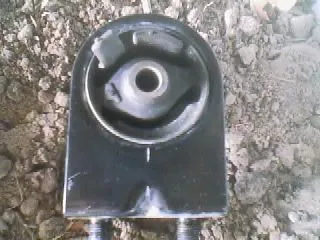

step 2. clean the mounts with the degreaser.

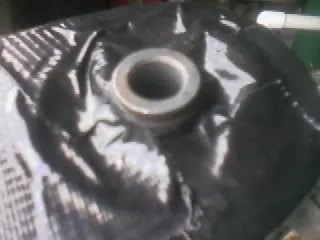

step 3. tape one side of mount.

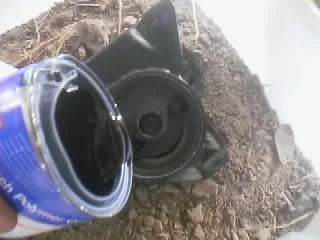

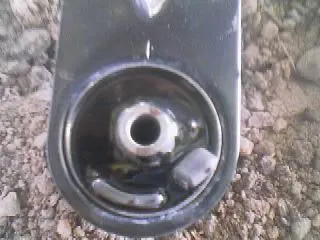

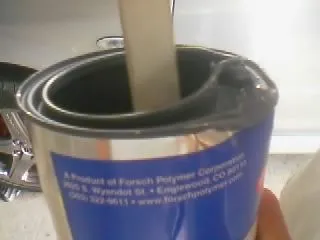

step 4. poor urethane in mounts.

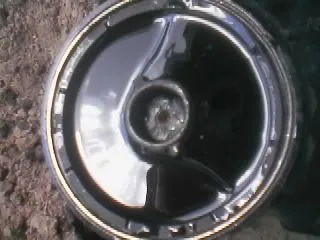

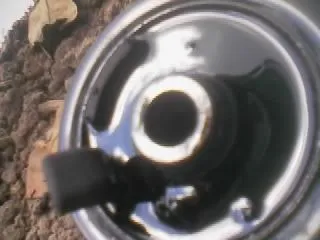

step 5. wait 8 to 10 hours till dry.. make sure to wait!!!!

step 6. put back on.

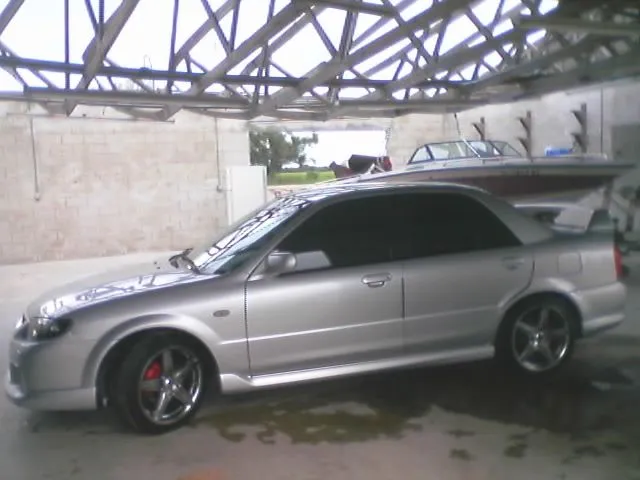

they work great on my msp.. lil vibration but nothing to complain.. also i only did front motor mount and side passenger one... NOw I feel the speed...


http://stores.ebay.com/Motor-Mount-Inserts-Universal-DIY


What do ya think????



[silvermsp]

SilverMSP

more pics



[nazgul350r]

I bought some of the window weld stuff from the auto parts store for $10 and it filled six mounts.



[540James]

how is the vibration



[silvermsp]

Not much rides good..I love it

how is the vibration



[loserkidwac]

I bought some of the window weld stuff from the auto parts store for $10 and it filled six mounts.

I was going to say DIY honda guys have been doing that for years alot cheaper than $37

There is another type that dosen't get as hard as the window weld which takes away some of the vibration....

I have full poly mounts in my CRX and it vibrated bad for a few weeks but once the mounts wore in a little it is a lot better


Where did you use the sand box

"4. Sand - in a box - vital to the project - don't skip this one."



[MSpeed2397]

Do you know what type it is that doesn't get as hard as window weld?



[smo0f]

how does this compare to AWR motor mounts?



[loserkidwac]

Do you know what type it is that doesn't get as hard as window weld?

Hmmm... I couldn't find any brand names but it seems that Liquid Urethan can be purchased in different hardnesses

I'll see if i can find the inf I was reading before...



[MSpeed2397]

Cool, thanks man



[silvermsp]

Put the mounts on the sand box so the liquid evens out...

I was going to say DIY honda guys have been doing that for years alot cheaper than $37

There is another type that dosen't get as hard as the window weld which takes away some of the vibration....

I have full poly mounts in my CRX and it vibrated bad for a few weeks but once the mounts wore in a little it is a lot better


Where did you use the sand box

"4. Sand - in a box - vital to the project - don't skip this one."
