Guide: Cargo cover / parcel shelf broken lug repair

I repaired my partner's 2010 Mazda 2 Neo, Manual, broken RHS cargo cover / parcel shelf pin FOR FREE using an old castor wheel lug, angle grinder, drill, screwdriver & glue

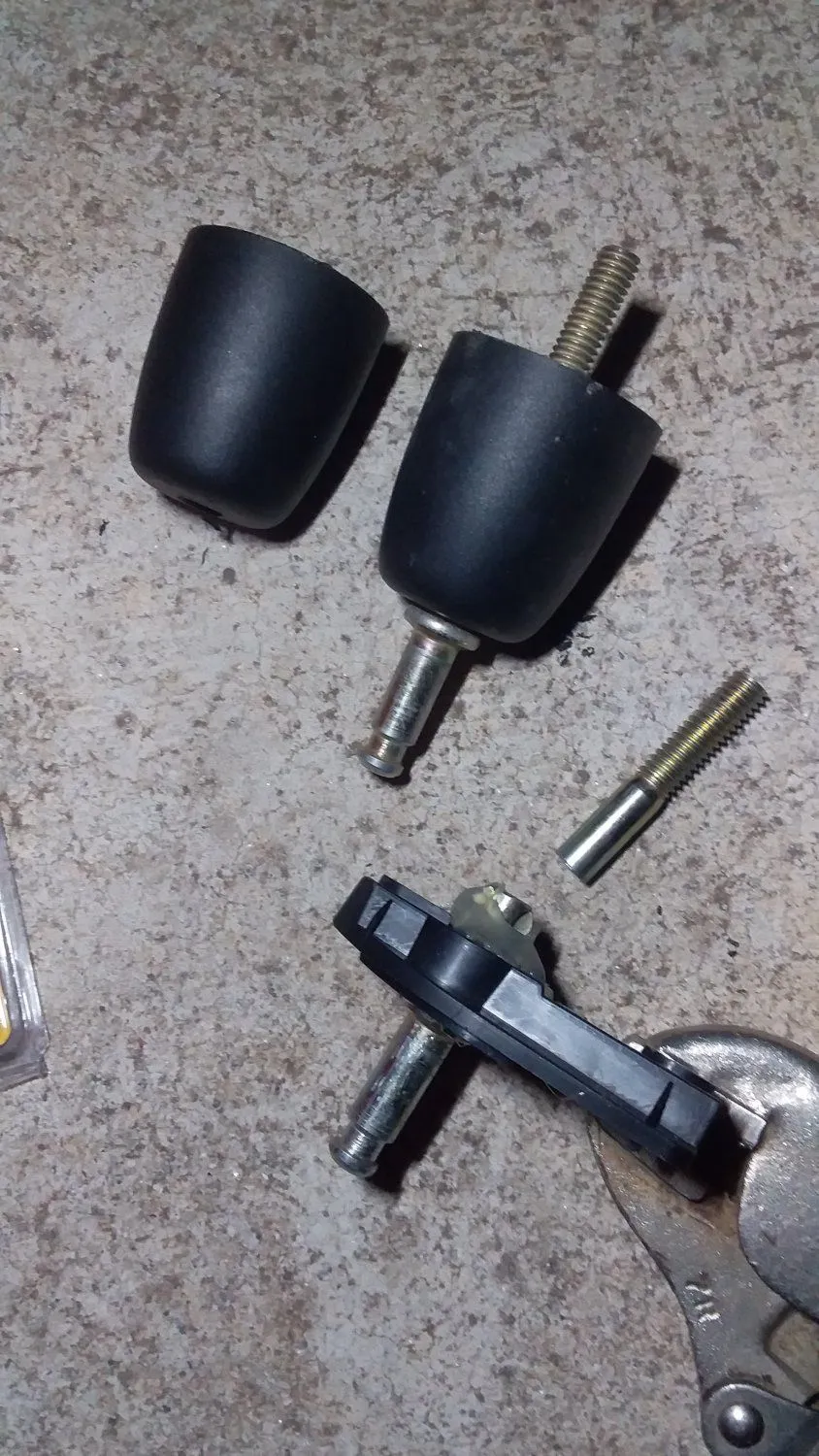

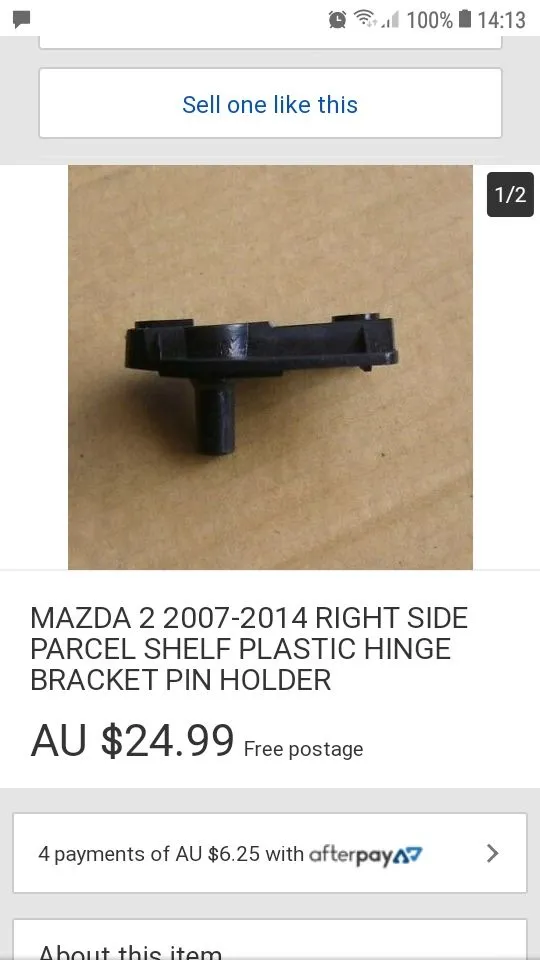

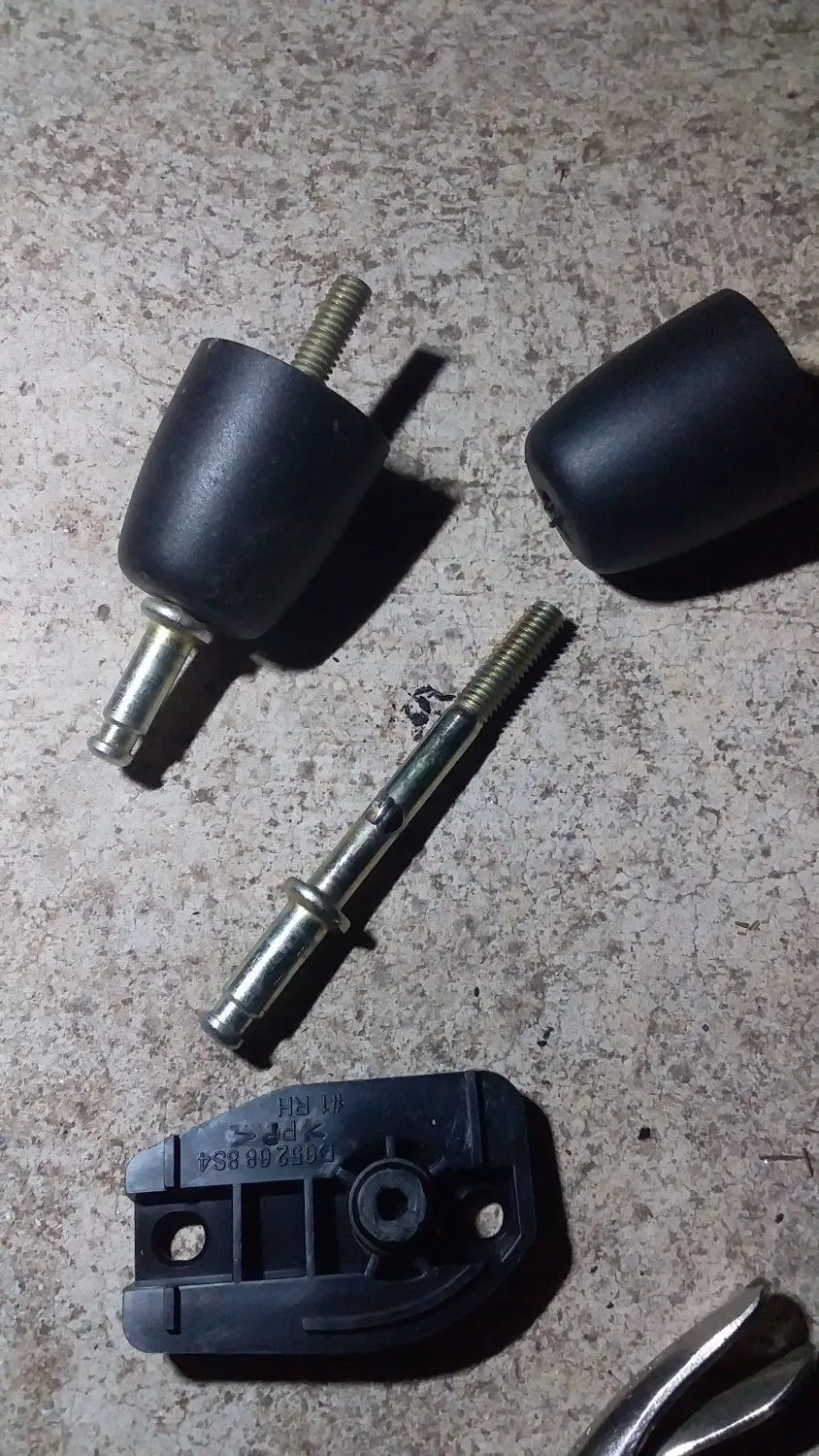

See pics of the disassembled castor wheel lug (off the bottom of a bed ensemble), which I cut down before drilling out the original, broken Mazda pin mount / bracket & gluing the metal into place - being steel, I expect it will last longer than a plastic one (which costs $25 on eBay) - & I used my hot glue gun, but araldite or similar should do

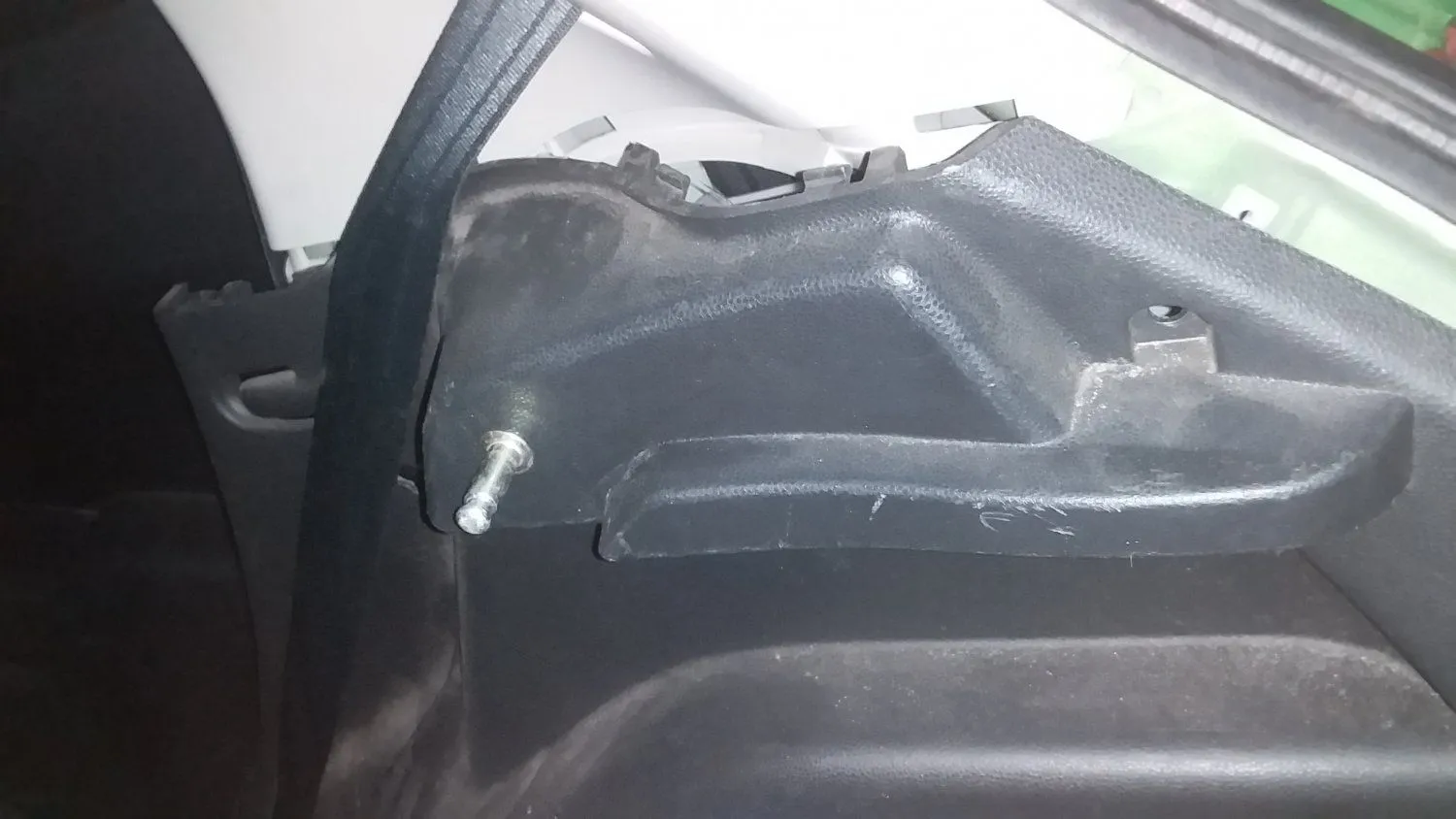

To access the broken pin-bracket, its easiest to fold the rear seat forward & pry the trim out, & remove the broken pin-bracket using a stubby screwdriver

See pics for my "FREE FIX" - or inspiration on how to replace with a new one


Attachments

  • 20200801_181745[1].webp
    216 KB · Views: 605
  • 20200801_183953[1].webp
    175.9 KB · Views: 666
  • 20200801_184332[1].webp
    60.9 KB · Views: 665
  • 20200801_184314[1].webp
    93.2 KB · Views: 667
  • Screenshot_20200811-141340[1].webp
    28 KB · Views: 666
  • Screenshot_20200811-141344[1].webp
    30.8 KB · Views: 592
I repaired my partner's 2010 Mazda 2 Neo, Manual, broken RHS cargo cover / parcel shelf pin FOR FREE using an old castor wheel lug, angle grinder, drill, screwdriver & glue

See pics of the disassembled castor wheel lug (off the bottom of a bed ensemble), which I cut down before drilling out the original, broken Mazda pin mount / bracket & gluing the metal into place - being steel, I expect it will last longer than a plastic one (which costs $25 on eBay) - & I used my hot glue gun, but araldite or similar should do

To access the broken pin-bracket, its easiest to fold the rear seat forward & pry the trim out, & remove the broken pin-bracket using a stubby screwdriver
great essay writing service
See pics for my "FREE FIX" - or inspiration on how to replace with a new one
Nice and easy to follow guide, thanks.
