Hi,
I purchased the teyes lux one for my Mazda6 2017. One of the plugs which holds the speakers output doesn't match it as the plug is 24 pin and fits only into USA TAU. The standard EU TAU uses a 20 pin connector.
I'm planning to replace the 24pin for 20 pin.
But before that I did a little research if there is any difference within those TWO TAU apart of the plug and play connection. I wasn't able to find the diagram for the USA version of TAU. I got only the EU version.
Would anyone here be able to help or provide some information please?
Some pics…

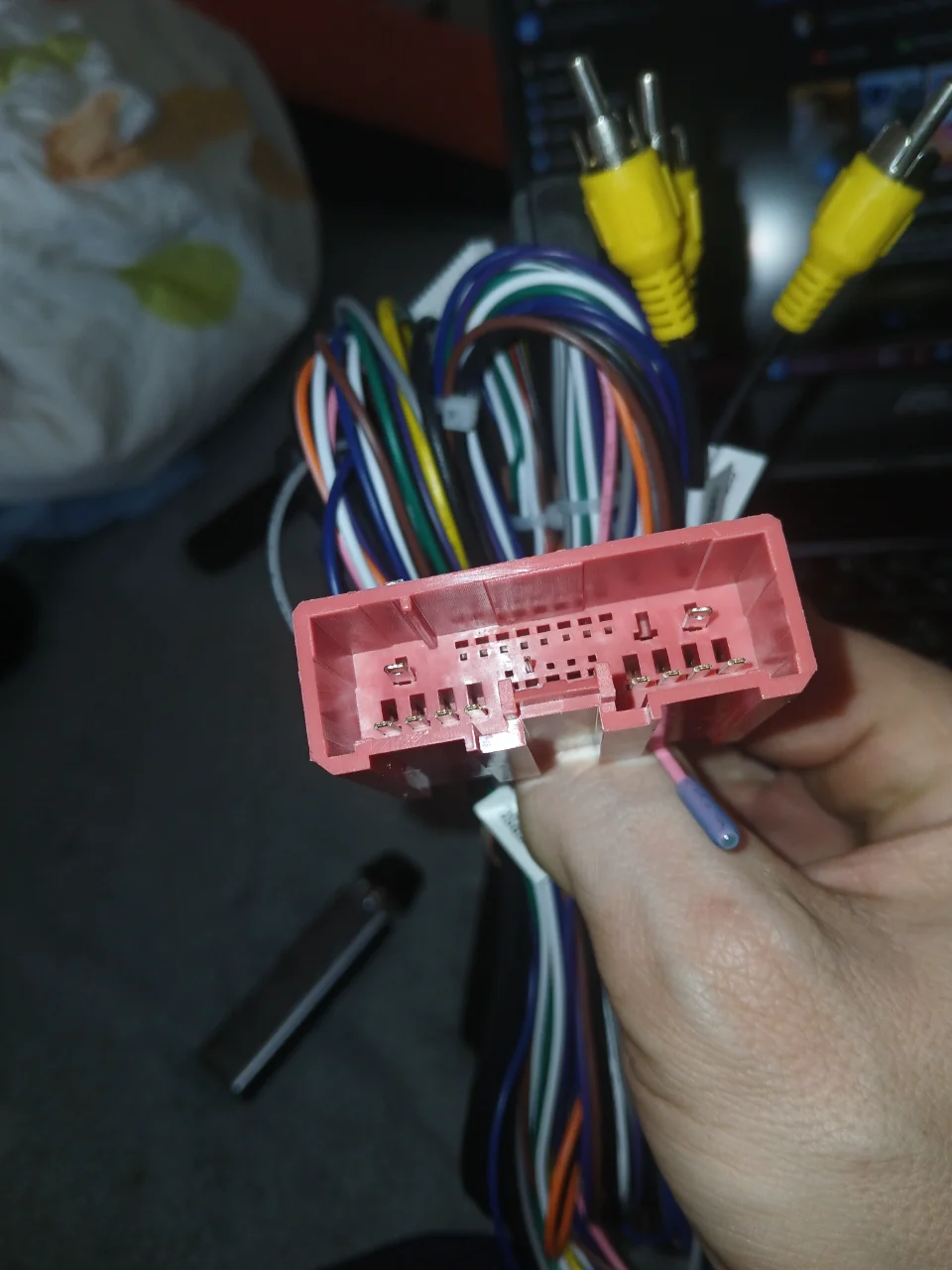

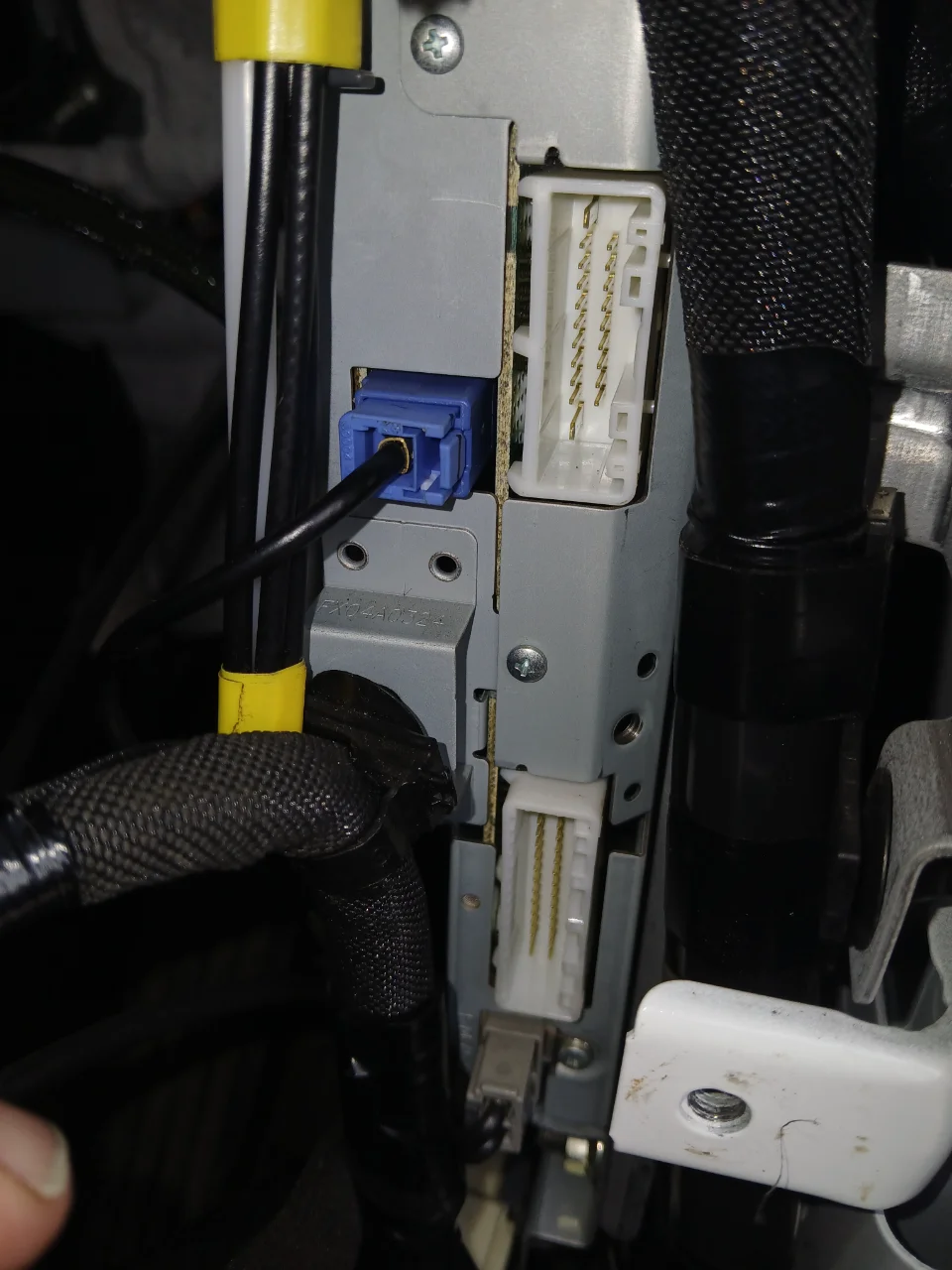

1 pic red plug doesn't fit as you can see on the second picture is the right connector which I want to replace it to fit the male one into it (this connector holds by EU diagram the speakers outputs). By USA diagram I don't know!

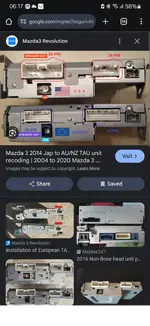

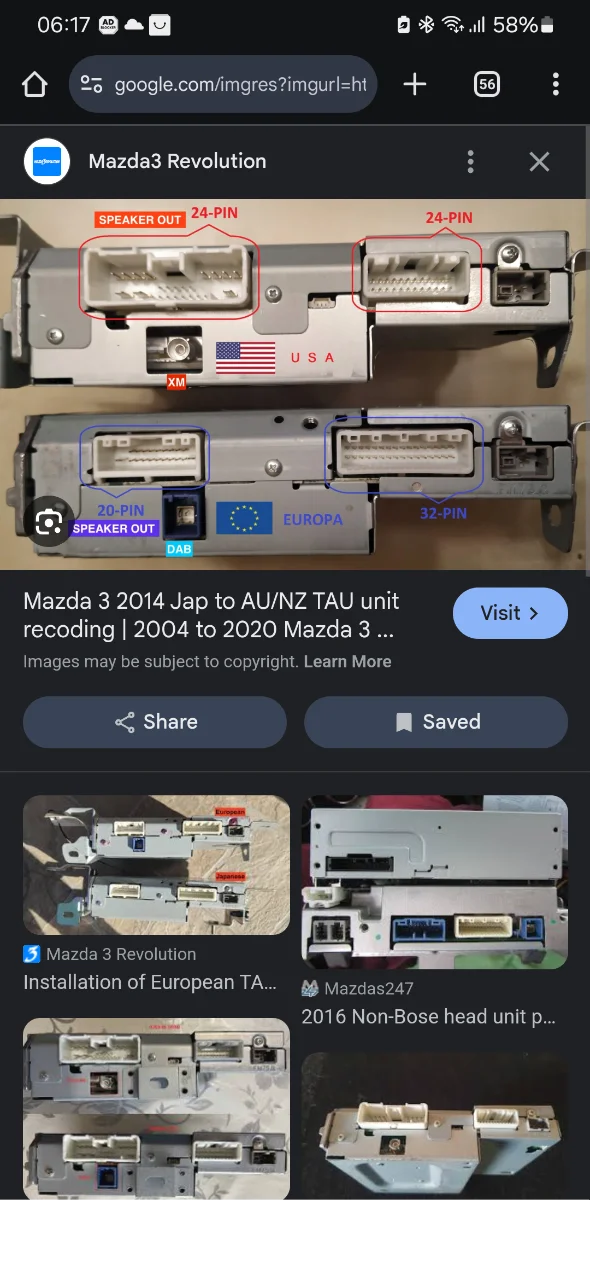

In the last picture is the USA and EU TAU. Please can anyone help?
Thanks!
