Yep! Somewhere in my build thread I have pictures of the brackets I 3D printed to hold the DD SSC1 in an SAE fog light pattern.

My wife has a hard time seeing at night or in adverse conditions and I hate being blinded by oncoming drivers so vehicle lighting has become a passion of mine. I want the brightest and most functional lights I can get while still adhering to the laws and not causing issues for other drivers. There’s a guy over on the TacomaWorld forum that is a vehicle lighting engineer and does independent tests of just about every aftermarket pod and light bar available (ignoring all the cheap Amazon specials) so whenever I am looking for a new type of light, I just hop over and read through his objective reviews. I have a drawer full of lights I’ve bought over the years that are going to go on my CX-9 in one place or another once I get this dang patio done 😆
That’s awesome. Alright. Thanks for the input. I’ll start doing some research. I like the idea of what you’ve done to your CX-9.


sm1ke

Work In Progress..
Moderator
Contributor
:
Canada
:
'18 CX-9 Signature
Oil and filter change yesterday. Spark plugs are up next.

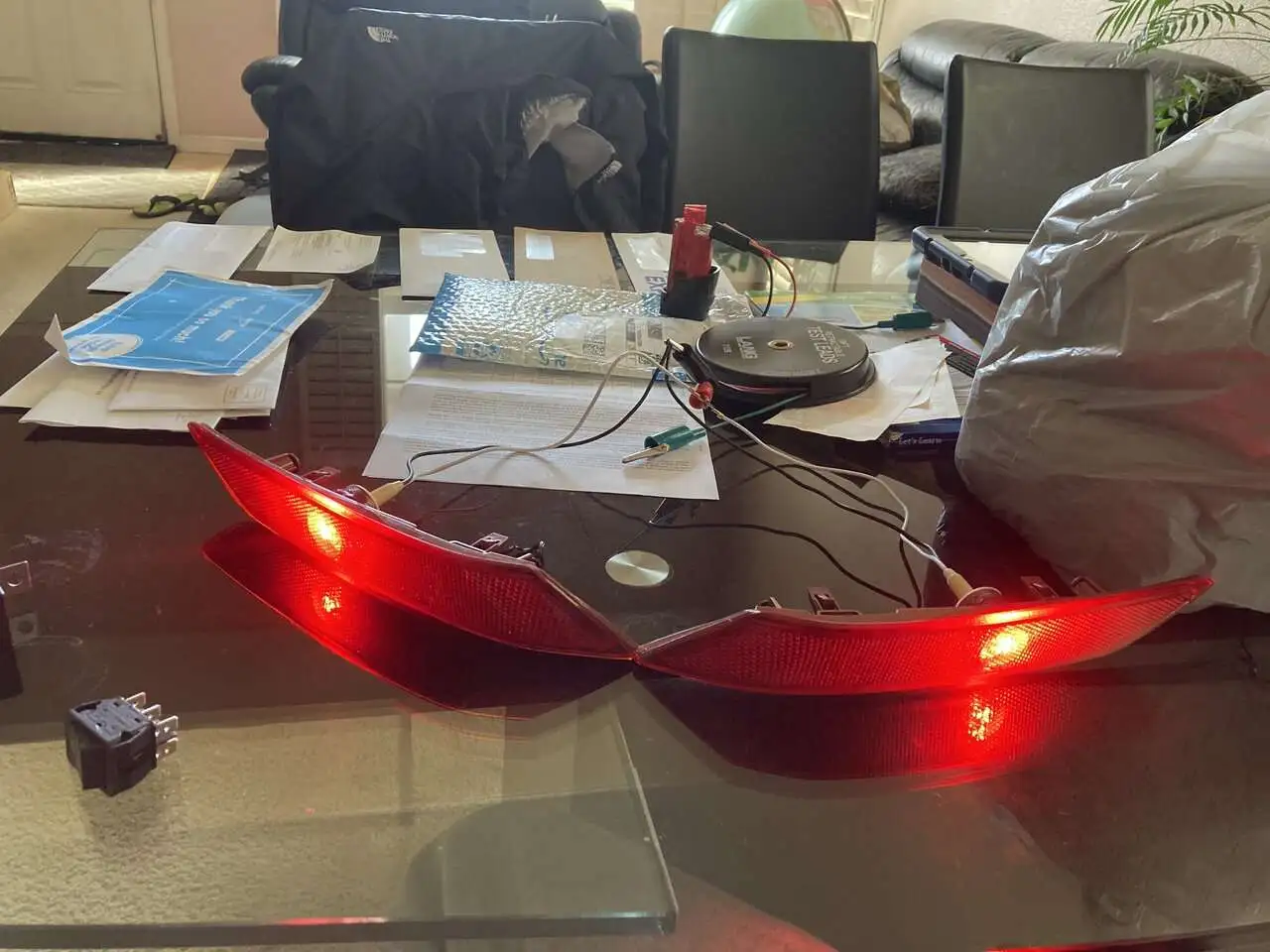

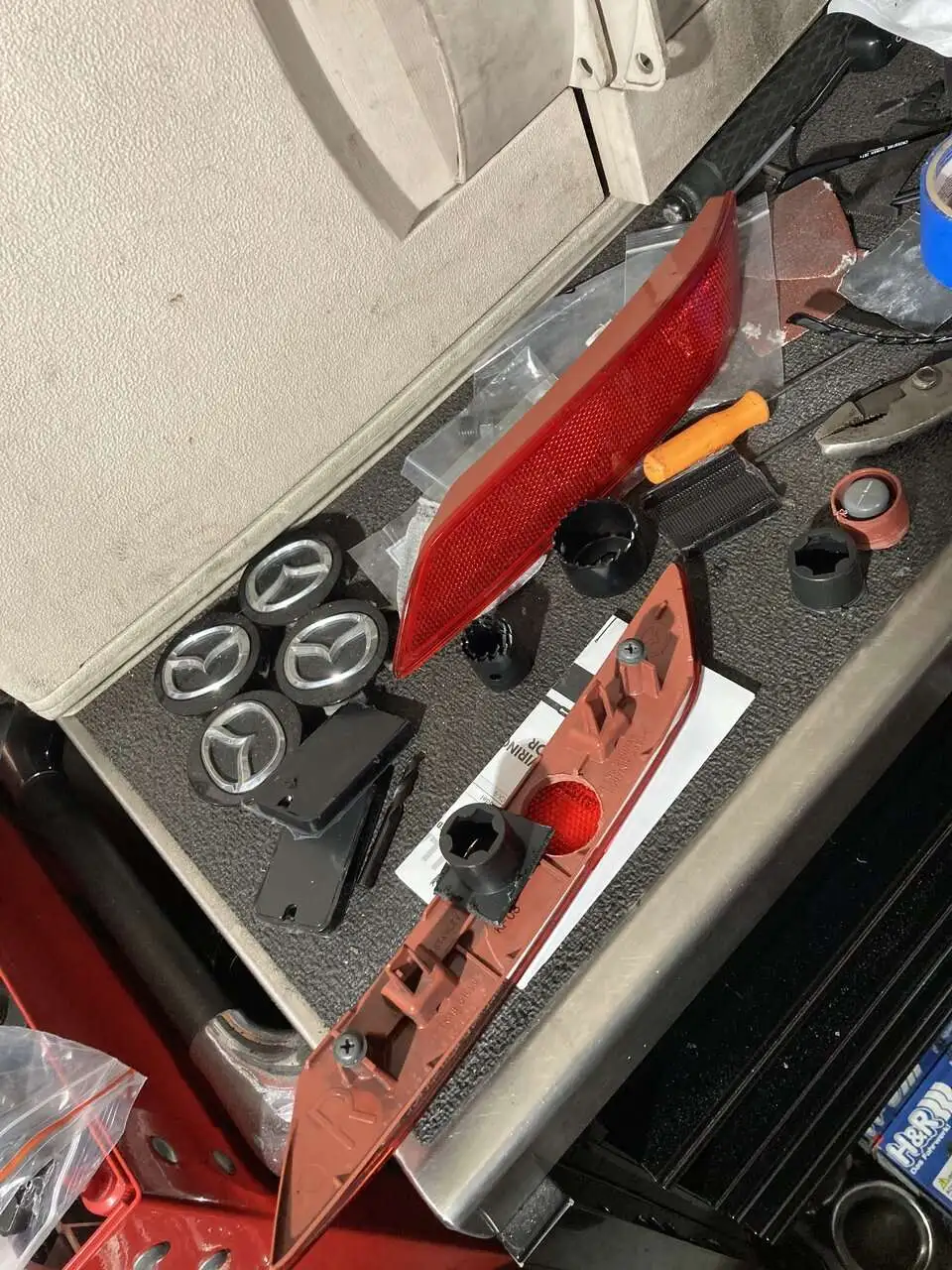

I made my own rear reflector lights. My idea came from, MGMGT16. Not as bright though. So I cut up the rear reflector and got a Jeep Wrangler side marker housing and also cut that one up. The reason I did that was so I’d be able to pick and choose what 194 bulb goes in there. I tried 921 bulbs but they were a hair too long. I also got a bulb socket for the jeep so everything matched up. I used silicone to seal everything up but now that I think of it I should’ve used JB Weld. If it comes apart one day that’s what I’ll do. For now, I’m leaving it. I haven’t mounted it back on the car yet but it looks promising! The bulbs in there right now aren’t bright but I have some brighter ones ordered coming in.

Last edited:
:
2016 CX-9 GT
View attachment 310859
View attachment 310860

I made my own rear reflector lights. My idea came from, MGMGT16. Not as bright though. So I cut up the rear reflector and got a Jeep Wrangler side marker housing and also cut that one up. The reason I did that was so I’d be able to pick and choose what 194 bulb goes in there. I tried 921 bulbs but they were a hair too long. I also got a bulb socket for the jeep so everything matched up. I used silicone to seal everything up but now that I think of it I should’ve used JB Weld. If it comes apart one day that’s what I’ll do. For now, I’m leaving it. I haven’t mounted it back on the car yet but it looks promising! The bulbs in there right now aren’t bright but I have some brighter ones ordered coming in.
Probably way cheaper and still gets the job done! What did you use to make the hole in the reflector? Looks way cleaner than mine. Judging by the hole saw in the picture, I would guess that was used

Probably way cheaper and still gets the job done! What did you use to make the hole in the reflector? Looks way cleaner than mine. Judging by the hole saw in the picture, I would guess that was used

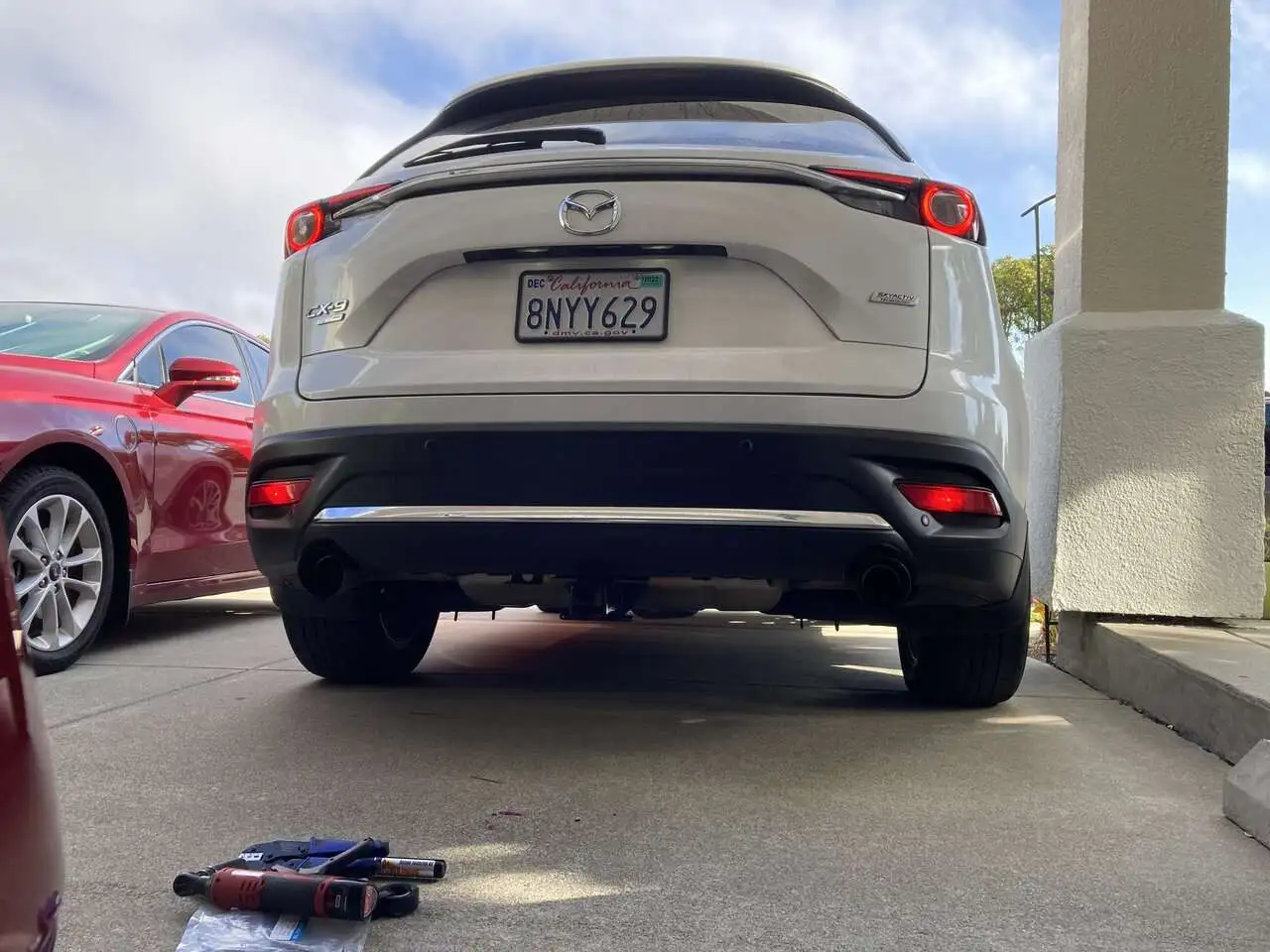

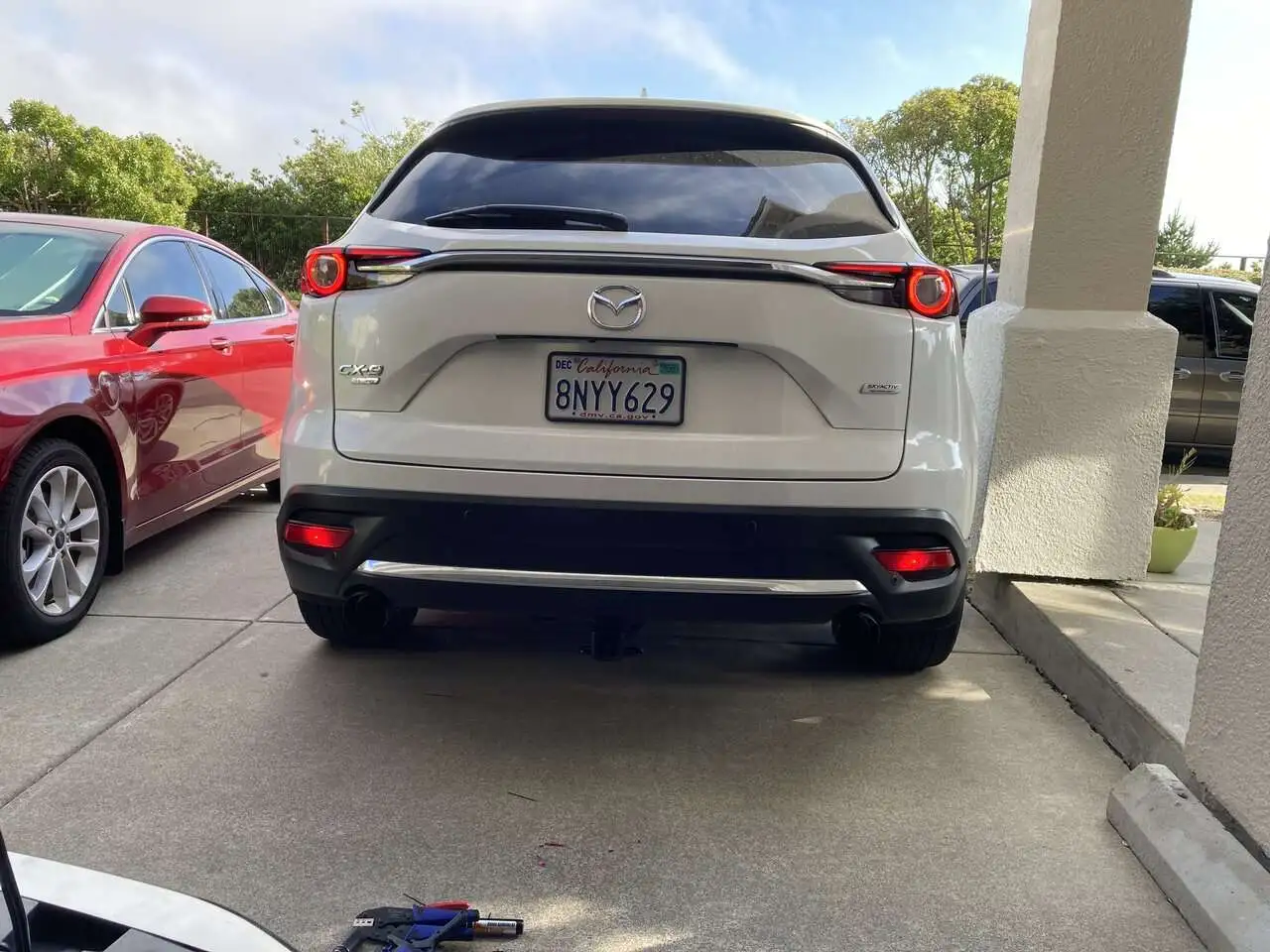

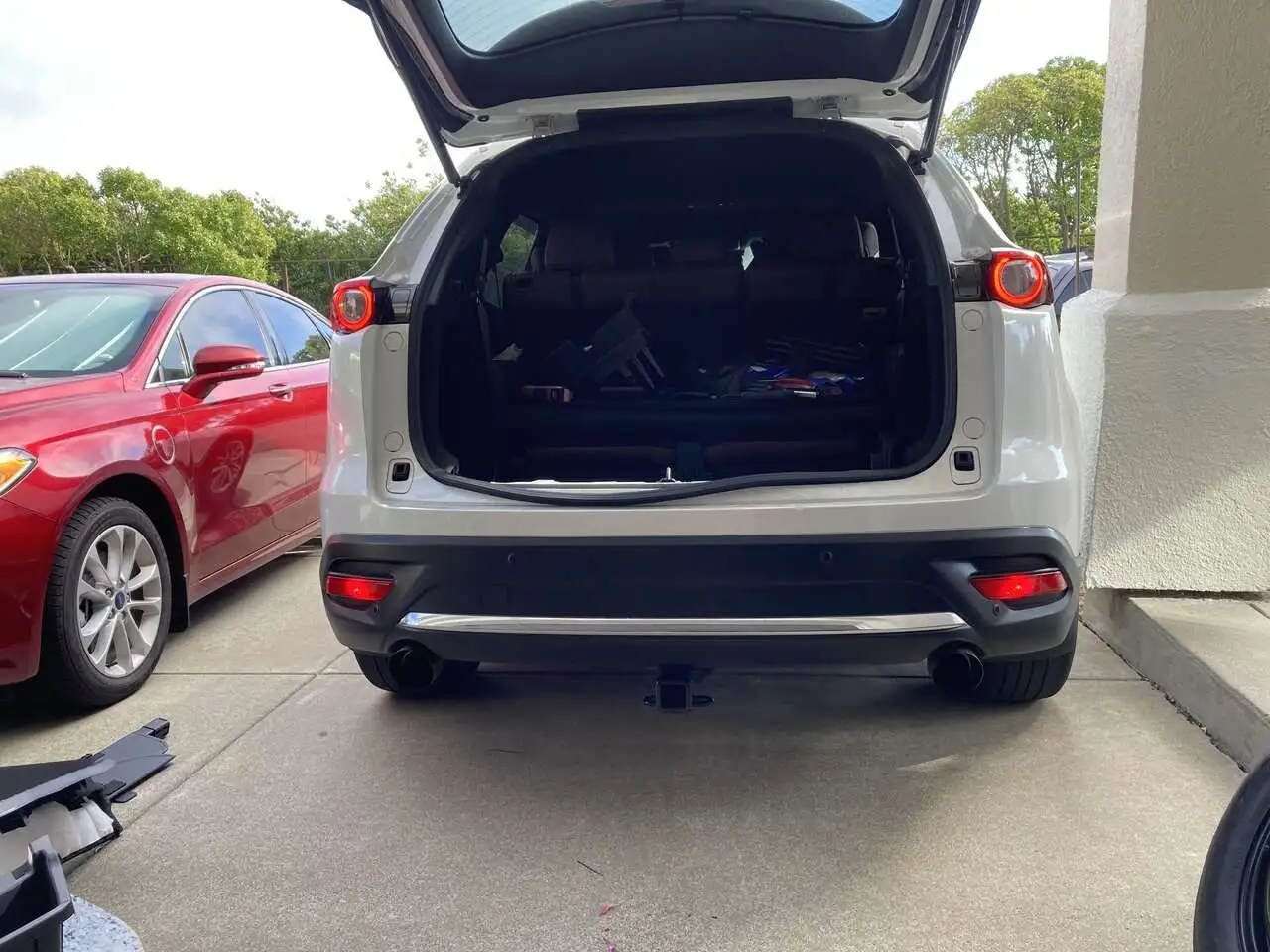

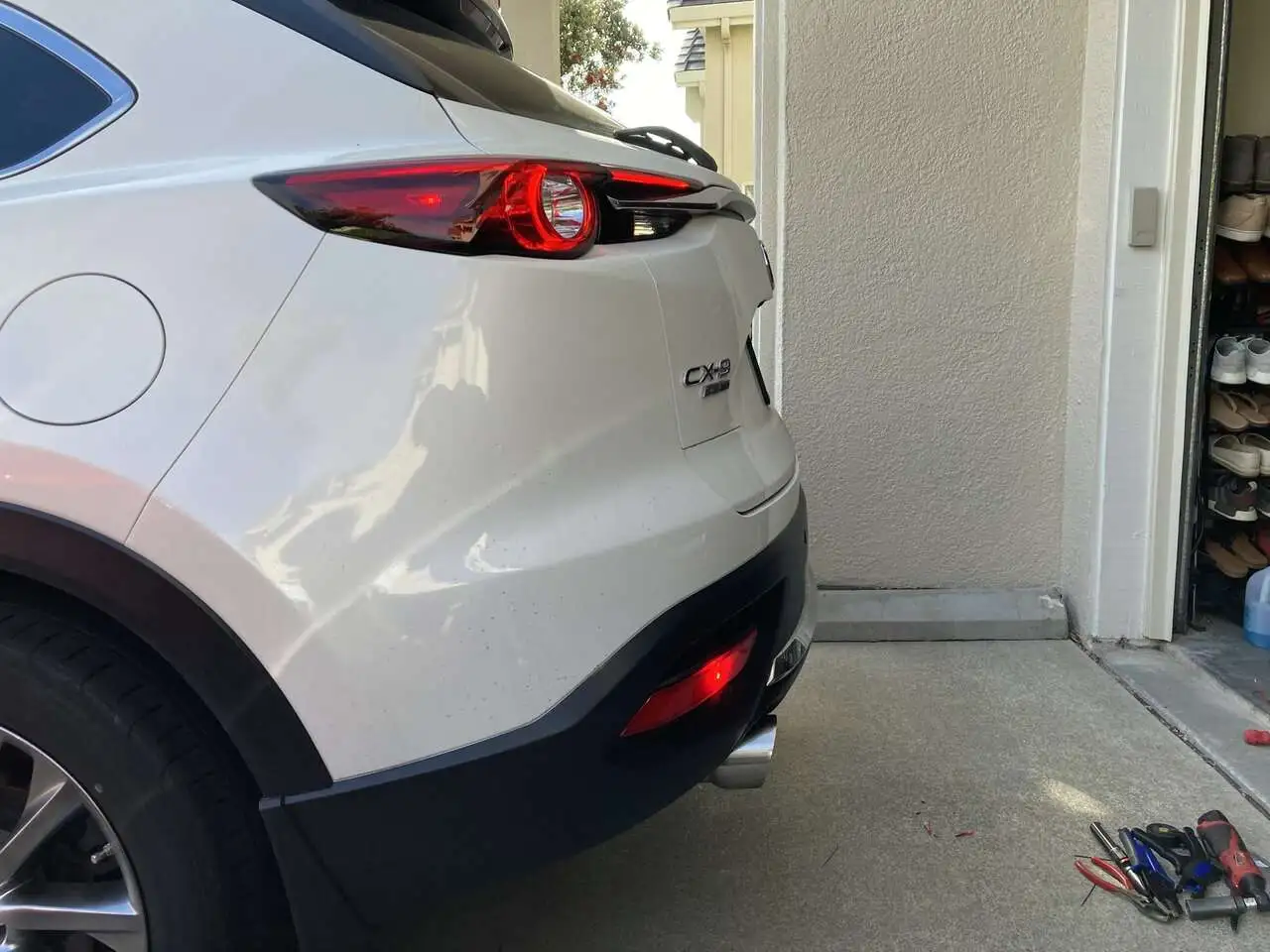

Yes it was a 1 1/4 hole saw. I know for sure it isn’t as bright as yours!! I can’t wait to see what yours looks like when it’s done. I’ll just play around with some 194 LEDs for now. Seems like they’re bright enough for me now though with these new LEDs I picked up. Here it is on the car currently. I purchased a Curt trailer hitch harness and tapped into that. I didn’t want to really mess with the stock wires. Plus, I just wanted the lights to turn on when the parking lights turned on. Stock, when the parking lights are off and you step on the brakes the halo part of the tail lights turn on so I didn’t want the reflectors to turn on with the brakes. Anyway, here’s the outcome.

Last edited:

sm1ke

Work In Progress..
Moderator
Contributor
:
Canada
:
'18 CX-9 Signature
Nice work!

Interesting that your halos light up as the brake lights, I wish mine did that. Looks much nicer. On the 2018 and earlier, there's a small LED cluster near the outer edge of the halo that lights up instead. I had no idea they changed it lol

:
2016 CX-9 GT
Yes it was a 1 1/4 hole saw. I know for sure it isn’t as bright as yours!! I can’t wait to see what yours looks like when it’s done. I’ll just play around with some 194 LEDs for now. Seems like they’re bright enough for me now though with these new LEDs I picked up. Here it is on the car currently. I purchased a Curt trailer hitch harness and tapped into that. I didn’t want to really mess with the stock wires. Plus, I just wanted the lights to turn on when the parking lights turned on. Stock, when the parking lights are off and you step on the brakes the halo part of the tail lights turn on so I didn’t want the reflectors to turn on with the brakes. Anyway, here’s the outcome. View attachment 310875 View attachment 310876 View attachment 310877 View attachment 310878 View attachment 310894
That 1 1/4 hole saw was a much better idea than what I did!

Just so I understand, there is a parking brake wire on the Curt harness that you tapped? So these are on whenever you’re driving then? I went with the lower powered Diode Dynamics lights but I don’t think I’d be able to get away with running them all the time 😂

:
2016 CX-9 GT
Nice work!

Interesting that your halos light up as the brake lights, I wish mine did that. Looks much nicer. On the 2018 and earlier, there's a small LED cluster near the outer edge of the halo that lights up instead. I had no idea they changed it lol
Looks like they have the little cluster on the taillights still so it’s interesting that Mazda chose to rewire them

there are really nice shots i get happy when i see how you take care of your cars. I have had a nano coating done for my car

Last edited by a moderator:

sm1ke

Work In Progress..
Moderator
Contributor
:
Canada
:
'18 CX-9 Signature
Ugh.. tried to change the spark plugs yesterday. Turns out the spark plug socket I bought was a piece of junk. The rubber insert doesn't "grab" the spark plug well, so I had to be really careful pulling the old plug out and putting the new one in. On top of that, the insert was really loose, and after installing the second plug, the insert fell out of the socket while it was coming off of the plug 🤬 I had to remove the spark plug to get the insert out. By that time it was starting to get dark, and I didn't want to have to deal with pulling old spark plugs out without the rubber insert in the socket, so I just bolted everything back up. I'll do the remaining plugs once I can find a half-decent spark plug socket.

:
2016 CX-9 GT
Ugh.. tried to change the spark plugs yesterday. Turns out the spark plug socket I bought was a piece of junk. The rubber insert doesn't "grab" the spark plug well, so I had to be really careful pulling the old plug out and putting the new one in. On top of that, the insert was really loose, and after installing the second plug, the insert fell out of the socket while it was coming off of the plug 🤬 I had to remove the spark plug to get the insert out. By that time it was starting to get dark, and I didn't want to have to deal with pulling old spark plugs out without the rubber insert in the socket, so I just bolted everything back up. I'll do the remaining plugs once I can find a half-decent spark plug socket.
That sucks. This is the one I used earlier this year. Was very easy and no complaints about losing a spark plug
