What are the three electrical connectors to the Mazda5 Transmission?

Donewood

Member
:
2007 Mazda5 GT 5MT

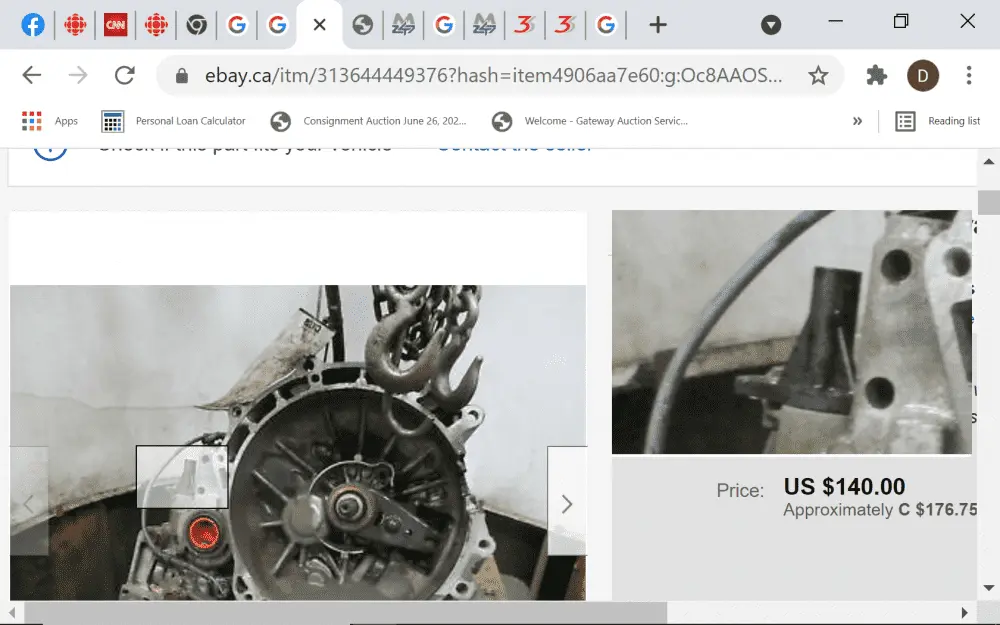

Does anyone know what the three electrical connectors to the Transmission are? Neutral switch and Clutch position make sense. There is a third open plug on the top firewall side it has a black plastic molded tower shape. No Idea if it needs to be plugged into something. Did a clutch replacement and power comes on but starter will not crake and there is no Solenoid noise. I just posted an E-Bay photo that shows the tower connector in question.

Last edited:

Donewood

Member
:
2007 Mazda5 GT 5MT

Upvote 0

Donewood

Member
:
2007 Mazda5 GT 5MT

G501-17-44XA​

If you do an image search, it appears to have no electrical connectors.

It's just a cover.
Thank you , When I pulled the Trans, I don't remember disconnecting anything there, and it's soiled as if it hadn't had a connector protecting it. But from the top it looks like a plug in. Lots of complexity to be just a "Hole Cover". Got to love FMC (Toyo Kogyo ) LOL Still trying to find the no start cause.
