Pics of my F'ed Turbo!!!

[Drumfreak]

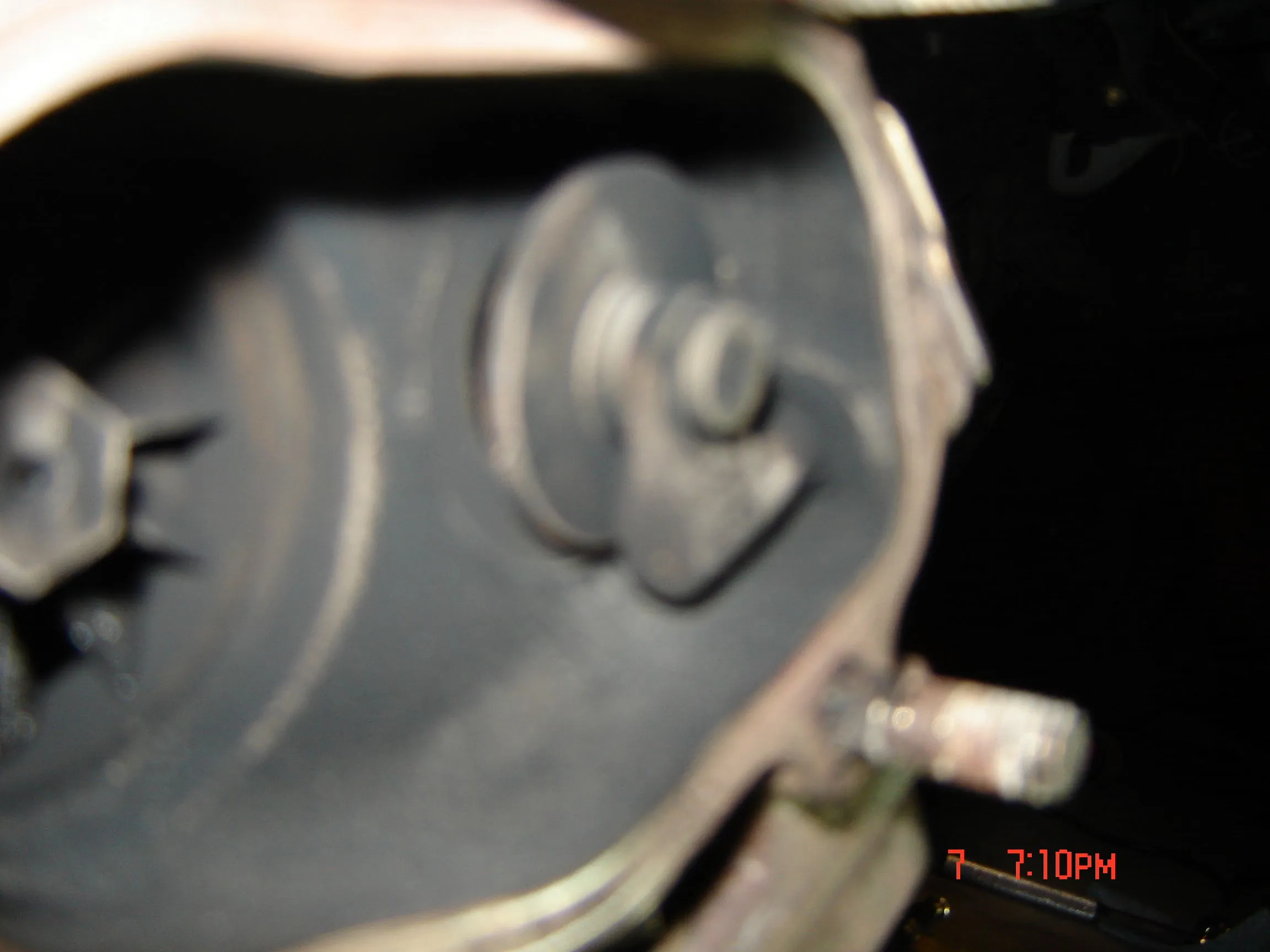

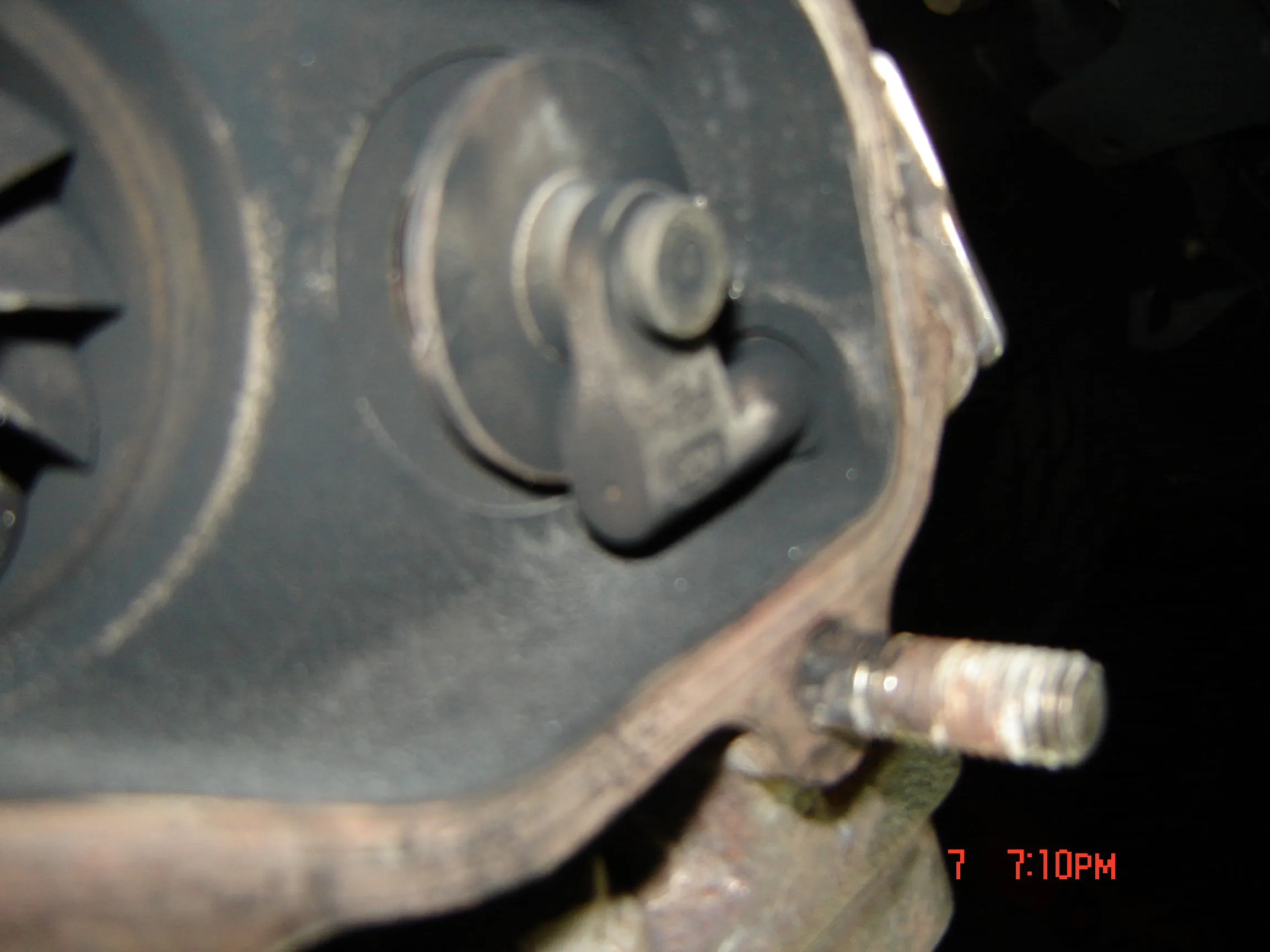

I took off my manifold/turbo/s pipe to reveal my actual wastegate not the actuator is messed. Included is two pics showing the disc getting caught against the casting. Keep in mind the actuator is in closed mode and there should be no gap around the wastegate at all. Talk about the gayest ever. I have no warranty to back me up. I'm not sure it would stop working properly. The exhaust escaping out of the unclosed wastegate caused the slow spooling. The car only ran fine at full boost where the wastegate is supposed to be open. Enjoy the pics. Hope this happens to nobody else. Thanks, Joe.



[MrDiggler]

Weird.



[Mutmatt]

focus... focus damn it



[BlkZoomZoom]

Whats it bent? Fix it.



[MrDiggler]

focus... focus damn it

Lol, I thought about mentioning that too. Focus, grasshoppah...



[Rawyzf]

Joe, you hurt my eyes!

Can you point to what is broken with some nice MS Paint work?



[evilmonkeyMSP]

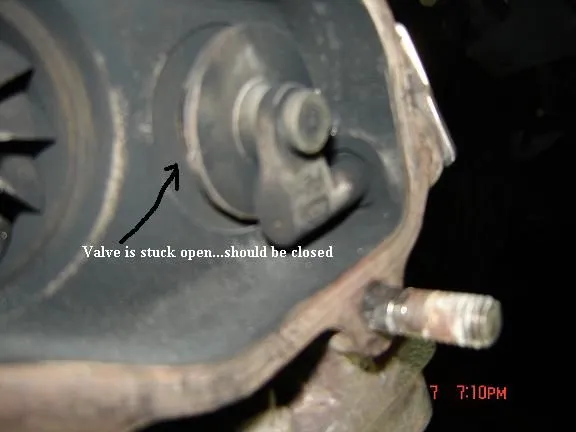

here

Joe, you hurt my eyes!

Can you point to what is broken with some nice MS Paint work?



[Micah]

lol - for a second I thought they were telling you to buy a Ford Focus



[Drumfreak]

I'm not exactly a photographer sorry. But I was hoping the blurred image would get the point across. I will keep the details to myself but I got the valve to open and close freely without any sticking or rubbing issues before and after I put the actuator back on. The car is put back together except for my radiator which I put a little gash in turning a wrench on the oil line. It's being welded up as I post. A $50 lesson learned. Can't wait to get it on the road probably tomorrow to see if it runs like it should.



[Rawyzf]

I'm not exactly a photographer sorry. But I was hoping the blurred image would get the point across. I will keep the details to myself but I got the valve to open and close freely without any sticking or rubbing issues before and after I put the actuator back on. The car is put back together except for my radiator which I put a little gash in turning a wrench on the oil line. It's being welded up as I post. A $50 lesson learned. Can't wait to get it on the road probably tomorrow to see if it runs like it should.

Hope it works well!

How'd you get it to not stick?



[Drumfreak]

Hope it works well!

How'd you get it to not stick?

KY lube. The kind that heats up with friction. You know exactly what I'm talking about



[Rawyzf]

KY lube. The kind that heats up with friction. You know exactly what I'm talking about

Yup...I know exactly. We should hook up some time and both share in the pleasure.



[evilmonkeyMSP]

ewwwwww gheyness



[Rawyzf]

ewwwwww gheyness

We've been doing it for years now.



[Breeegz]

hmmm, Food for thought

(hah) if it sticks again maybe you could try...

(poke) ^^I found a blurry pic to go with your blurry wastegate --It's phase-matched



[Drumfreak]

Pardon Ryan he didn't specify. We've been unsticking wastegates together as a team.



[Drumfreak]

(hah) if it sticks again maybe you could try...

(poke) ^^I found a blurry pic to go with your blurry wastegate --It's phase-matched

That is pretty funny. Might I ask where the hell did you find that and why were you looking for that.



[Rawyzf]

LOL! (cheers)



[Mutmatt]

that is what u say when some1 finds out ur gay... i've seen you!



[TheJohnny]

dremel is my friend, find where it is hitting and make it fit.........
