MSP Engine pics, stage 2 completed

[banned4life]

MSP Engine pics, stage 2 completed - UPDATED

Here is my engine so far. Next is powder coating but for now...

The black valve cover is in the mail. Going to powder coat pipes in metallic black too.

Front View

3/4th View

Side View

Hotwires and wiring relocation

BOV moved under CAI

MAF relocation and you can see the EBC controller

No more BPV (plugged piping)

MAF is no more!!!

MAF relocation



[Jaysanooch]

It's lookin good...how does it run? Had you known, you woulda gotten the turbohose silicone couplers in red eh? Good luck and the look your going for...is in the right direction.



[banned4life]

It is running like s*** right now! 440cc's Dump way to much fuel, but because of the holidays and me going to switzerland i have to wait until jan 7 to get tuned. I hit fuel cut like a Mofo too. But, the new injectors with the tune are suppose to cure that (according to unichip).

So for now i run rich as all hell and stay out of boost! But when she is done she will be AWESOME.



[banned4life]

More Pics!!!!

All but the engine mounts are done!!!!

TOP new valve cover

Left View

Right View

Front View

Had to add an extension to the Intake because of the BOV

WRX Injectors!!!



[MSP608]

looks like theres a giant spider or something on top of your engine w/all that red running everywhere haha



[bazooka joe]

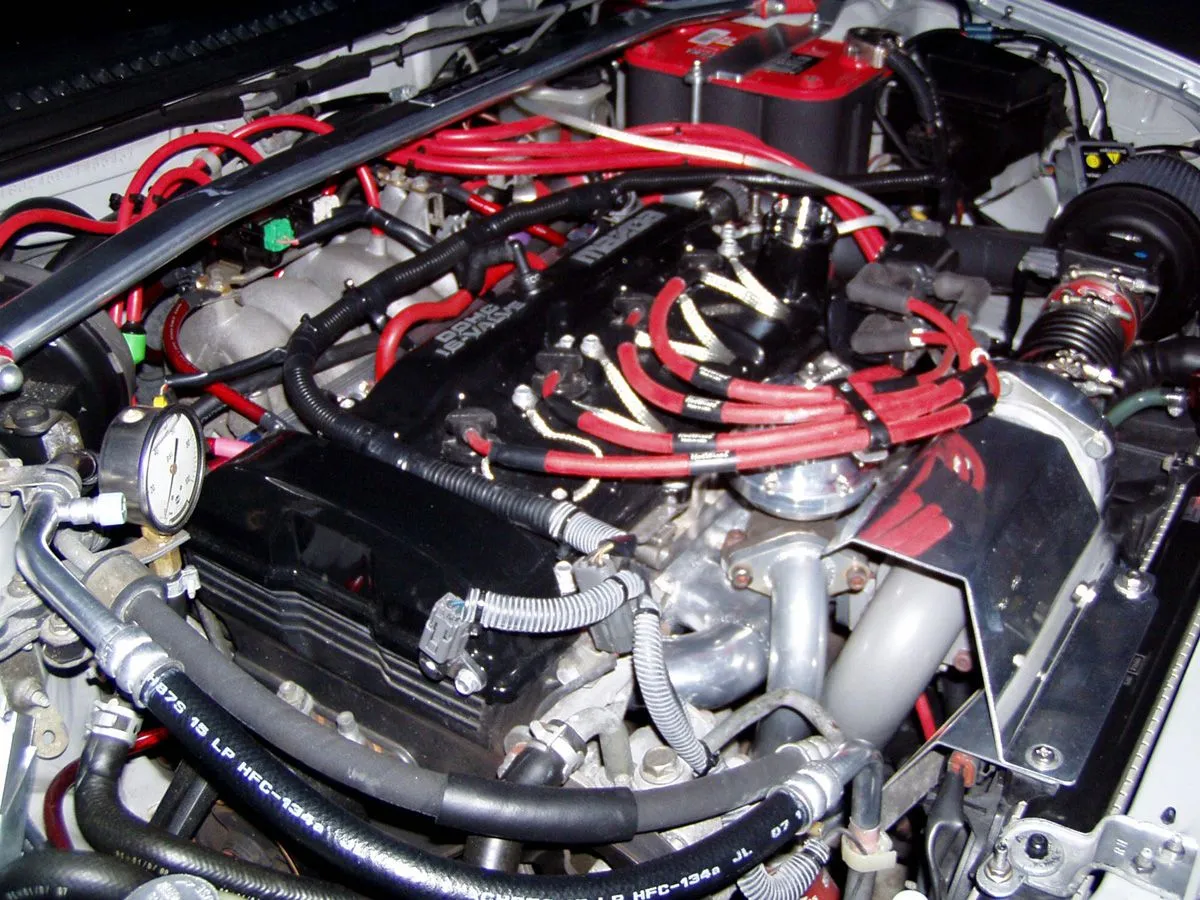

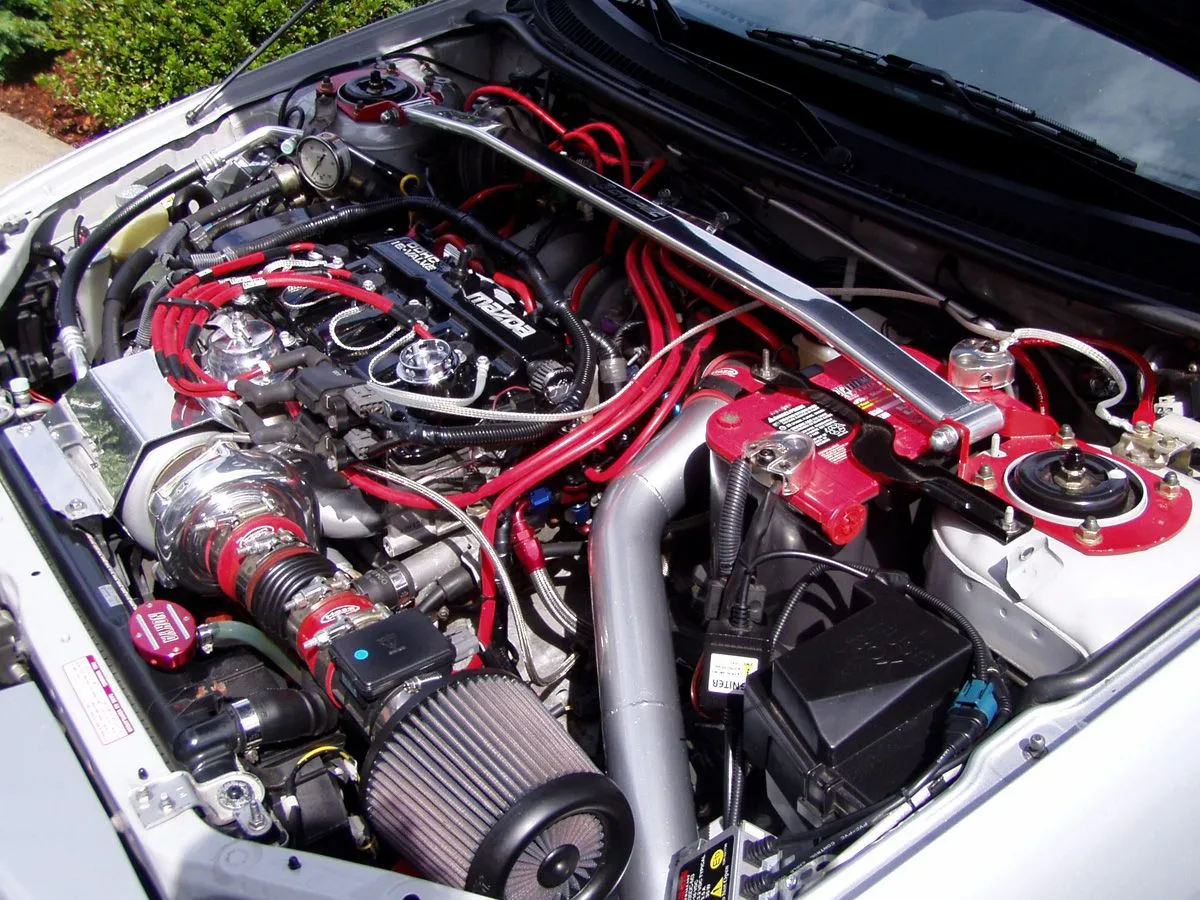

looks a little familiar! good work!



[banned4life]

wow yours it pretty damn nice!!!

I am going to be removing all the red lume and going all black other than the hotwires and filter. The pipes, SMIC and turbo manifold heat shield are going to me the same color as the valve cover.



[bazooka joe]

wow yours it pretty damn nice!!!

I am going to be removing all the red lume and going all black other than the hotwires and filter. The pipes, SMIC and turbo manifold heat shield are going to me the same color as the valve cover.

that's funny, i was thinking of doing the same thing...a tad to much red maybe?



[Velocifero]

good work man, looks similar to my set up minus the red wire loom, never been a real fan of that, kinda makes the engine look gaudy imo. I was relocated but it didnt work for me and I would bet that is what is happening to you as well. Your boosting too much and cooling that hot wire off to quickly, that is why you are cutting, I switched mine back and she ran much better, but hopefully very soon I wont worry about having a MAF at all. MAP ftw! Most everything under my hood is black as well, Painted my strut bar black, injen is black, hard pipes will be black soon enough. DG CF cover painted black with a small line of silver and CF left.
