CX-5 suspension control arm failure

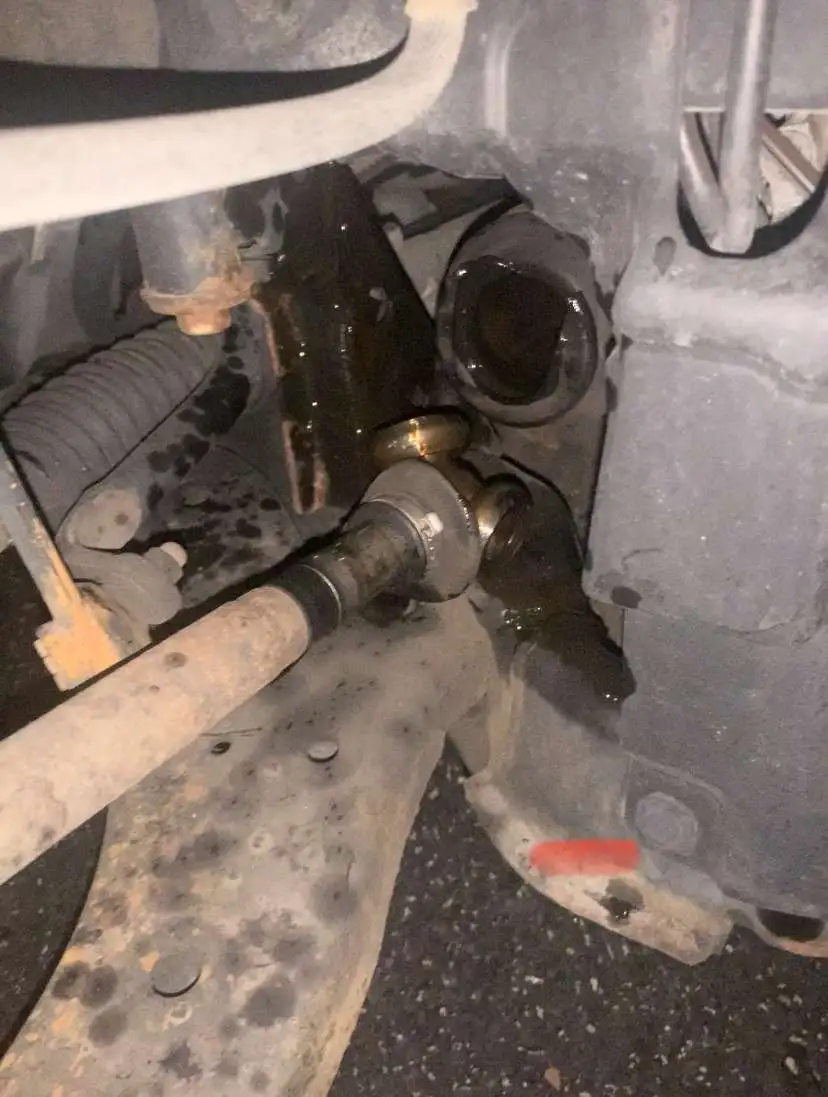

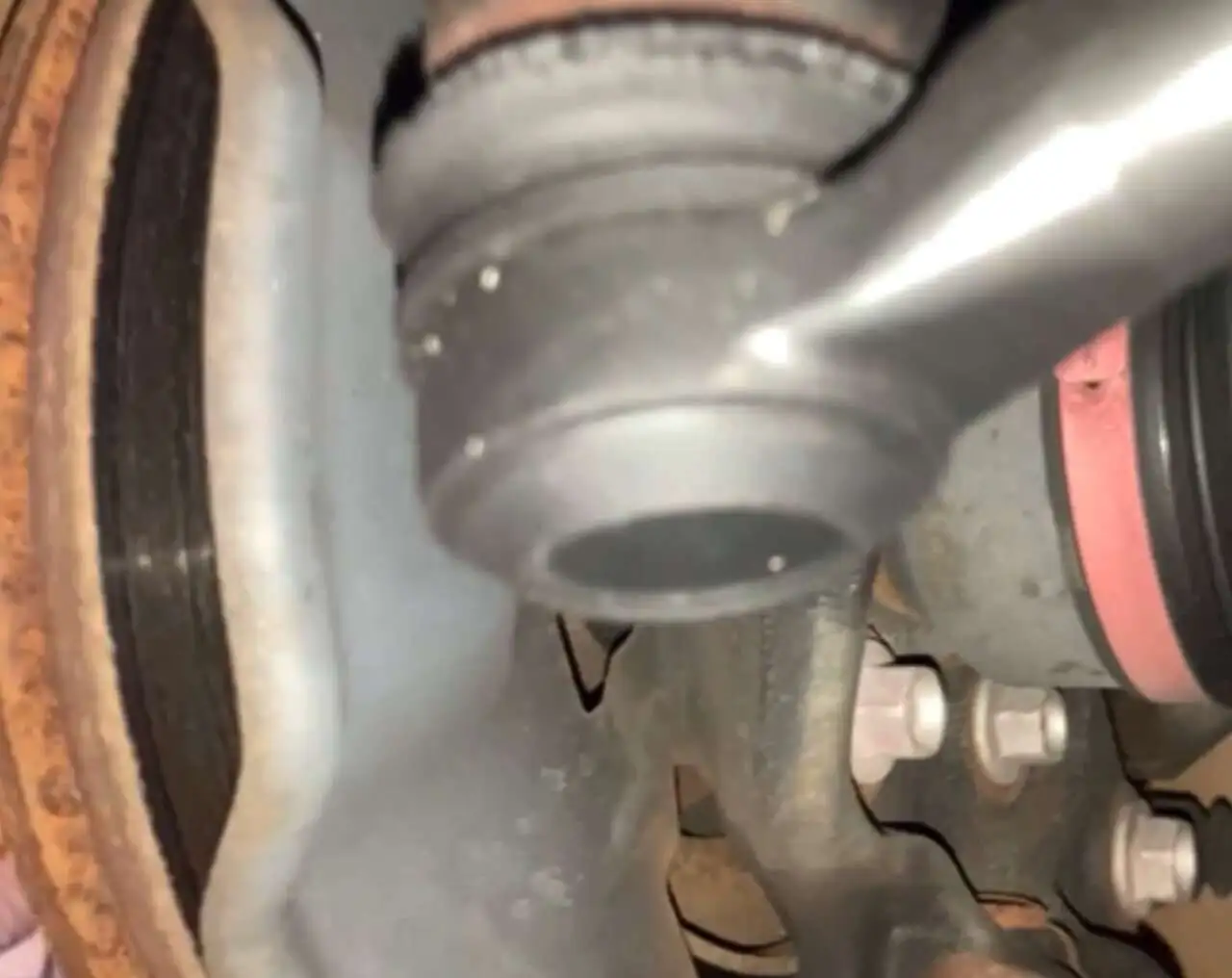

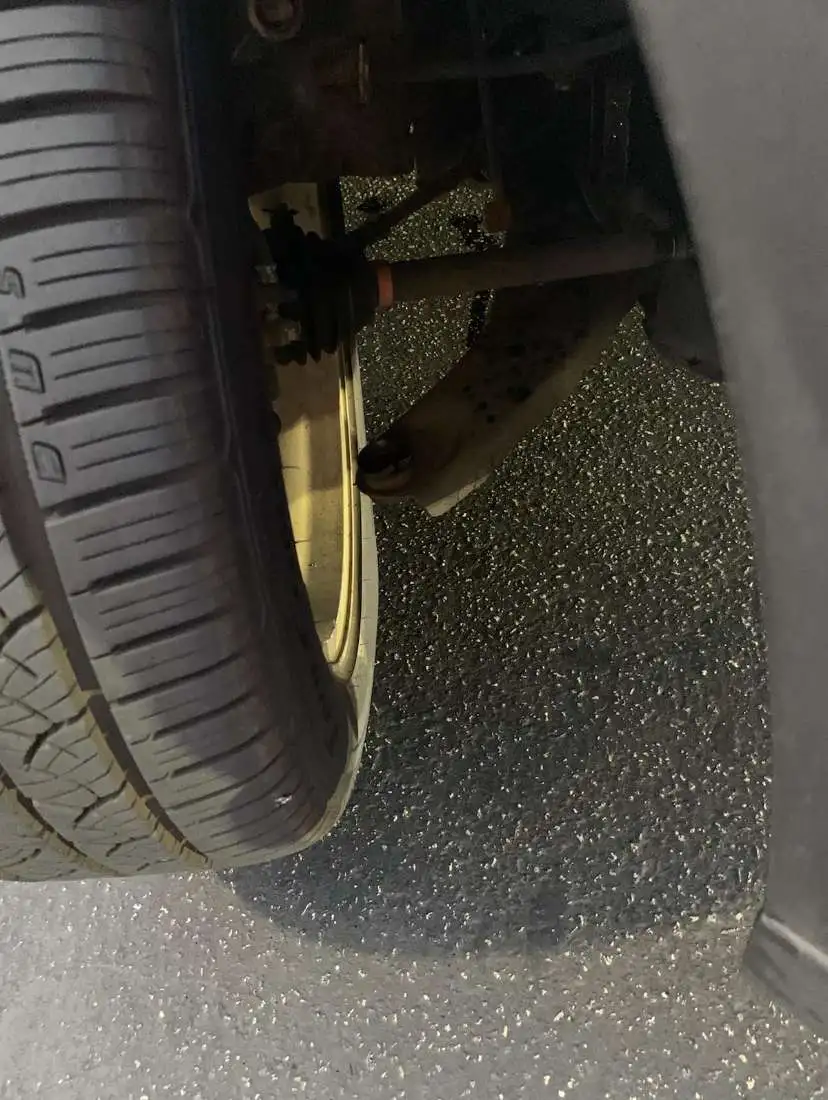

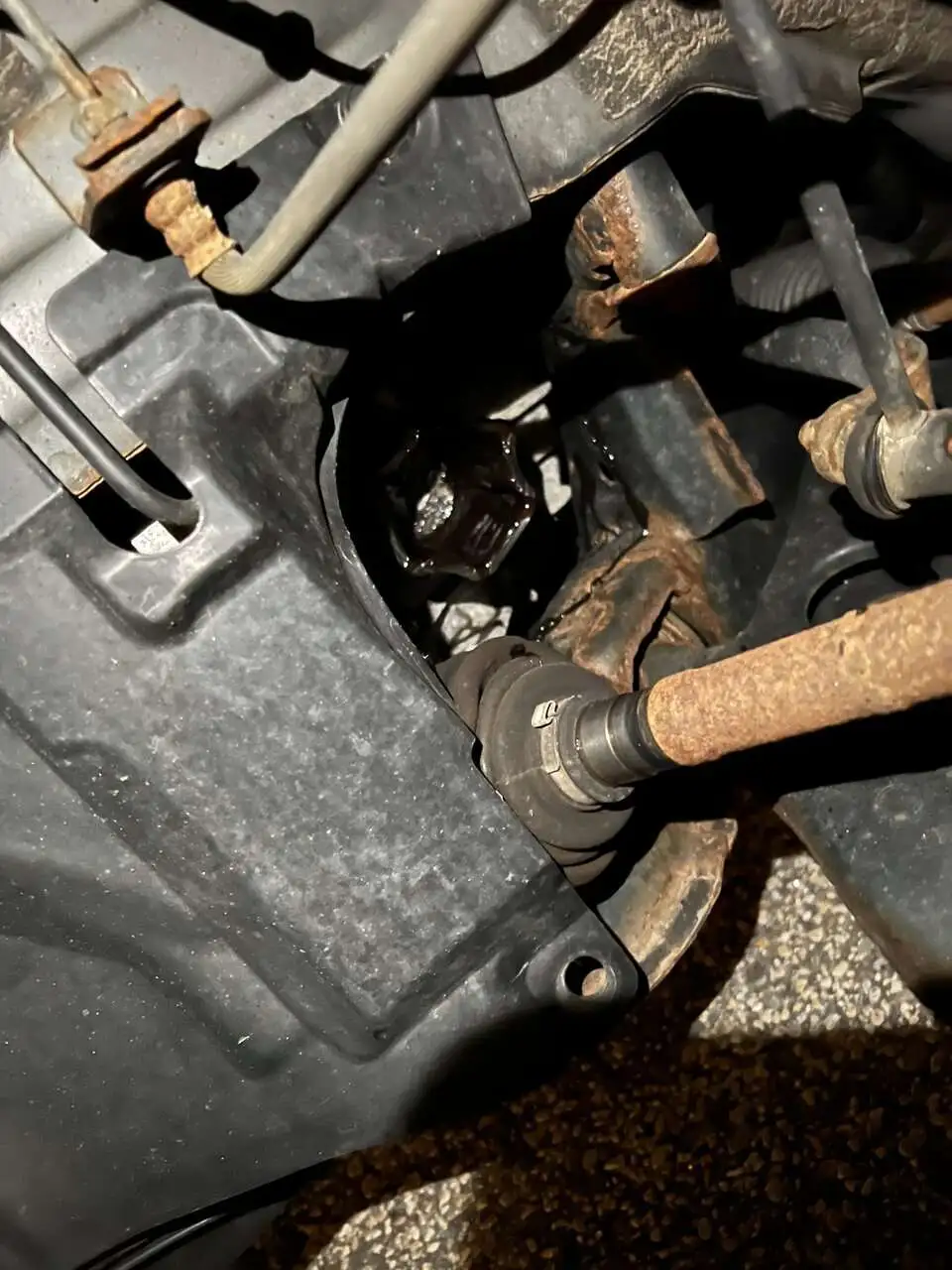

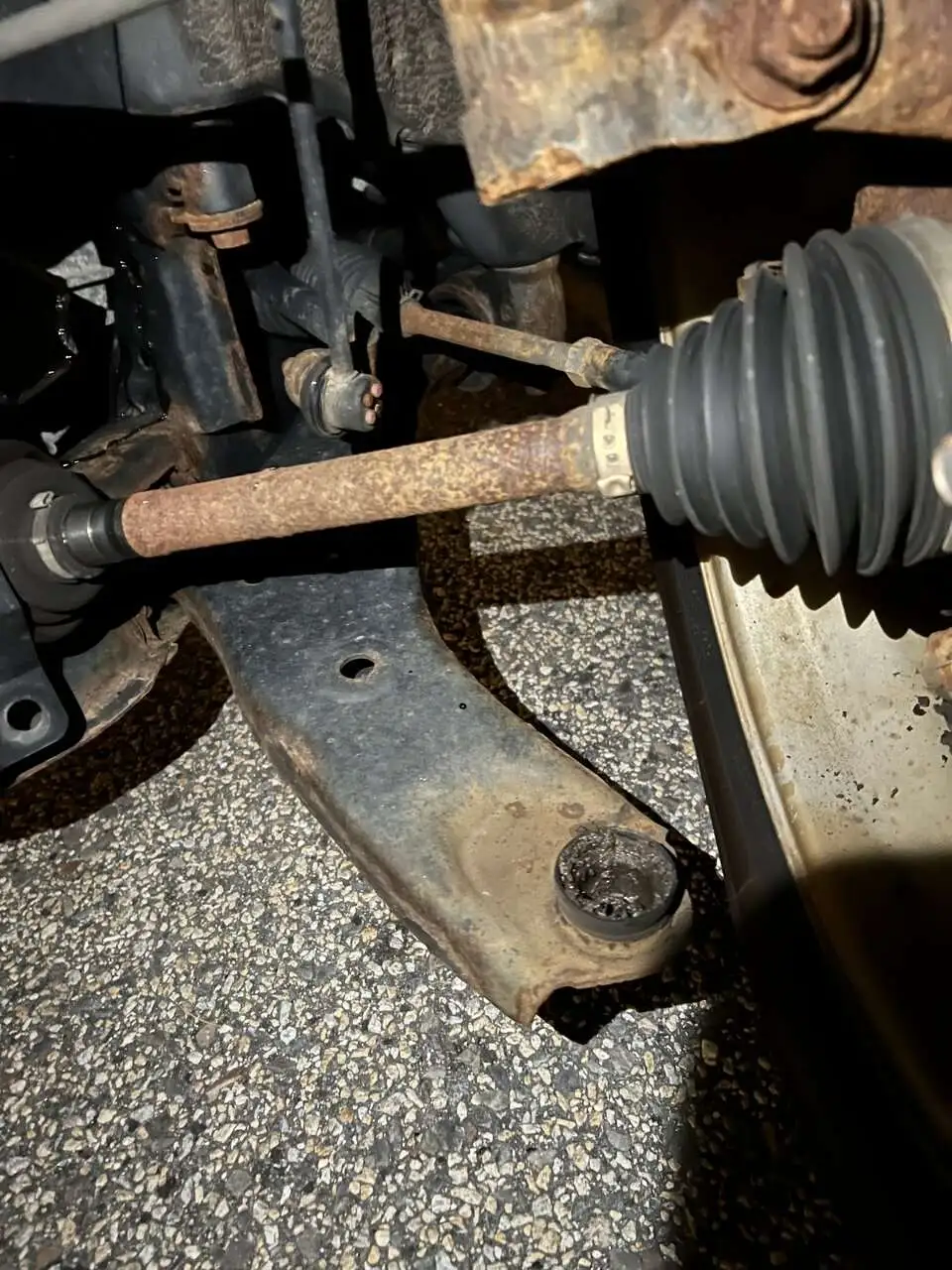

Hi, I was recently travelling in a Mazda CX-5 2013, which has done 73K miles, when the suspension control arm suddenly detached, causing the steering to be lost and the wheel to cave in. The car has been regularly serviced, MOTd, and has had no accidents. Furthermore, it has not been driven on rough terrain.

The incident happened after travelling around 170 miles and there had been no signs of any suspension issues leading up to the incident. Thankfully the problem happened as the car was entering a car park. Had it occurred at speed, the consequences would most likely have caused fatalities.

Has anyone experienced anything similar or has suggestions to make? I'm still reeling from the trauma!

Thanks!

:
16.5 CX-5 Tour/AWD

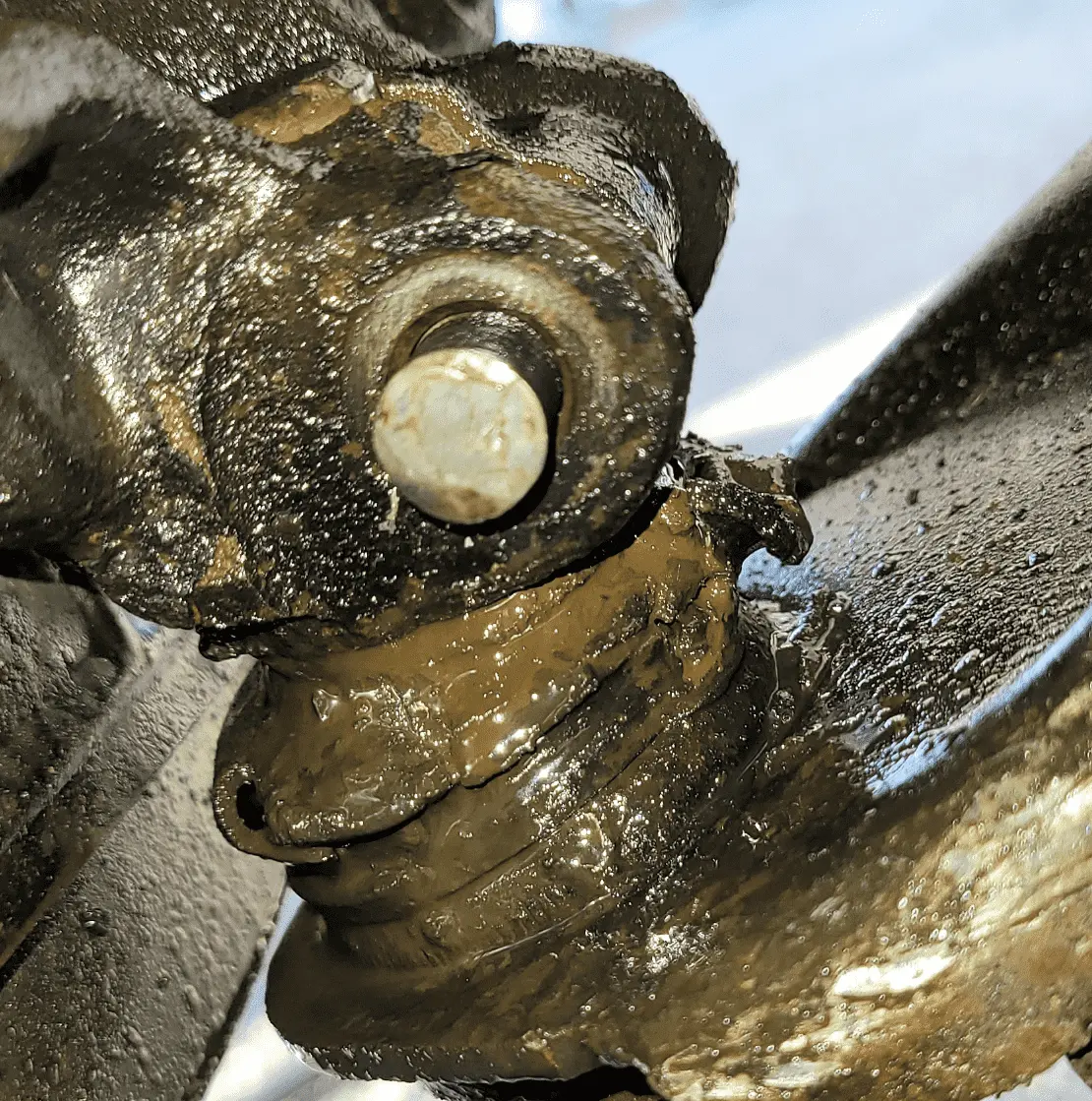

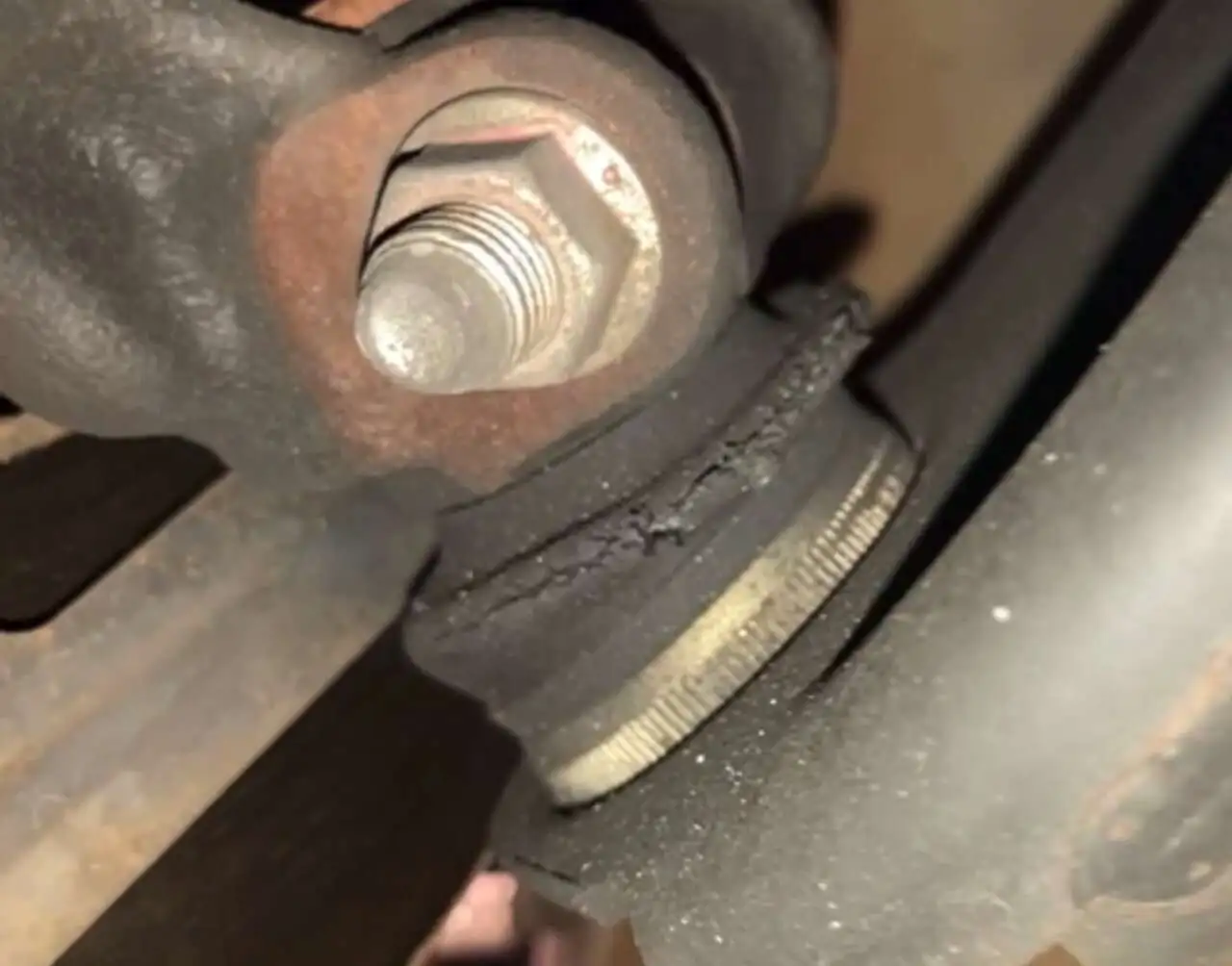

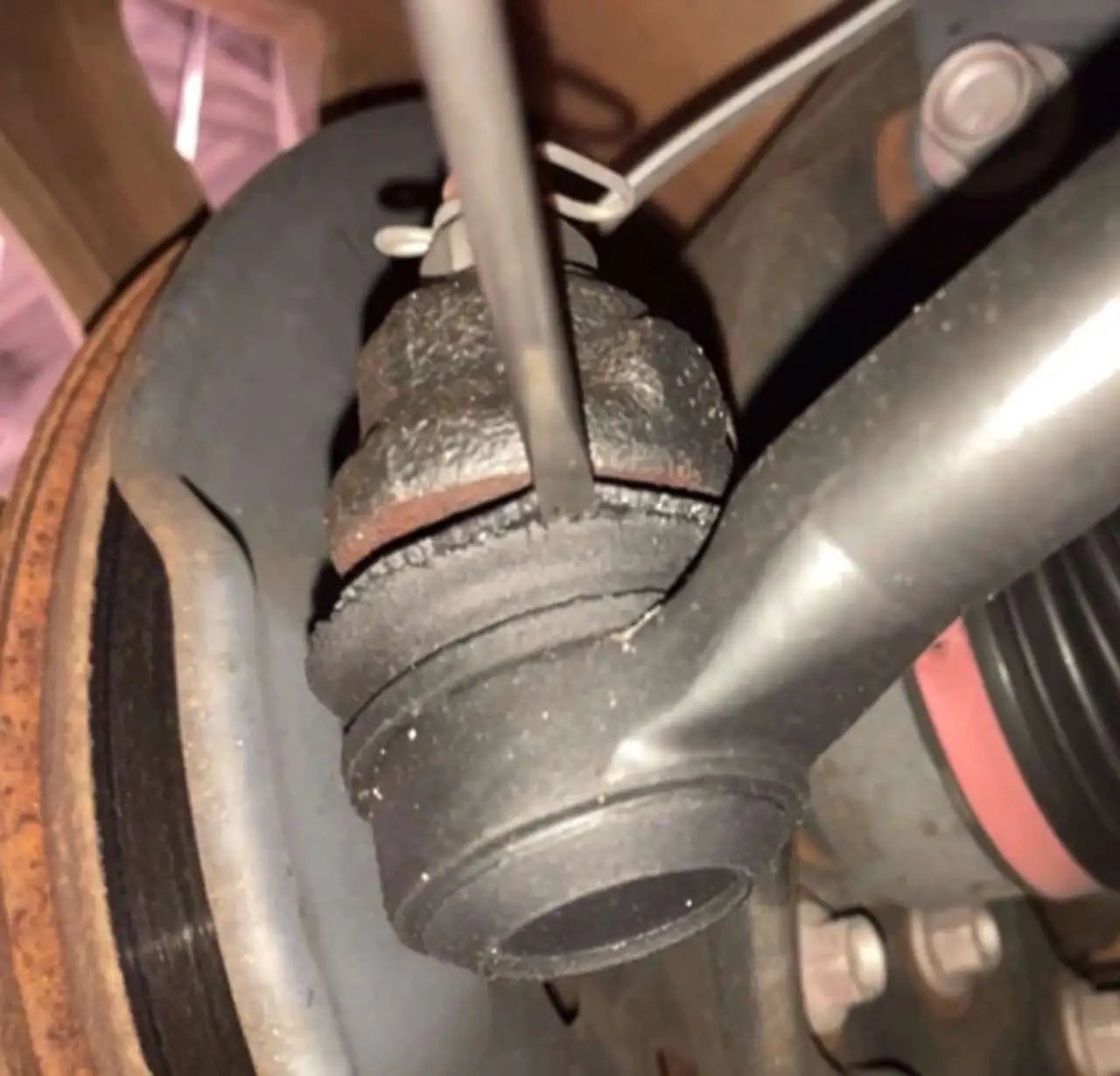

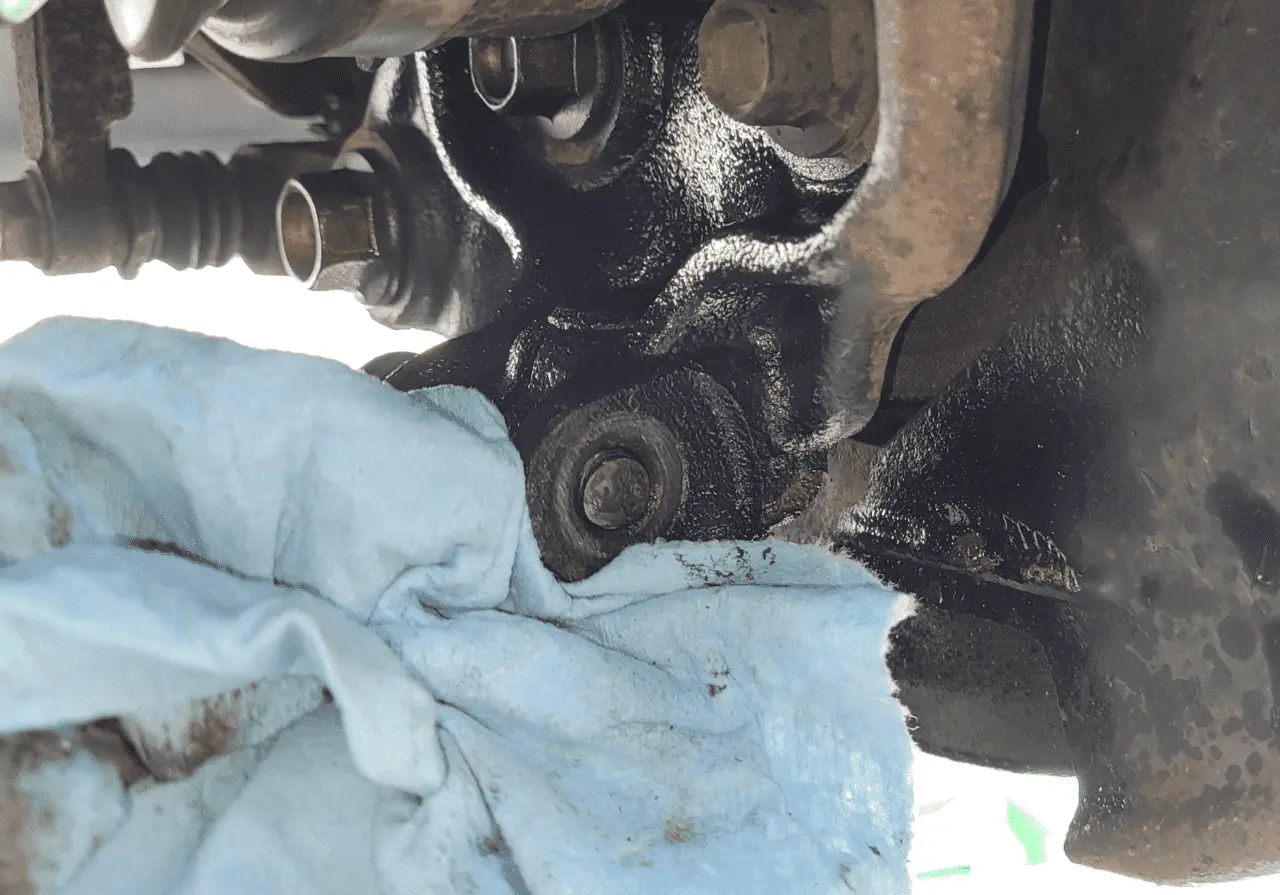

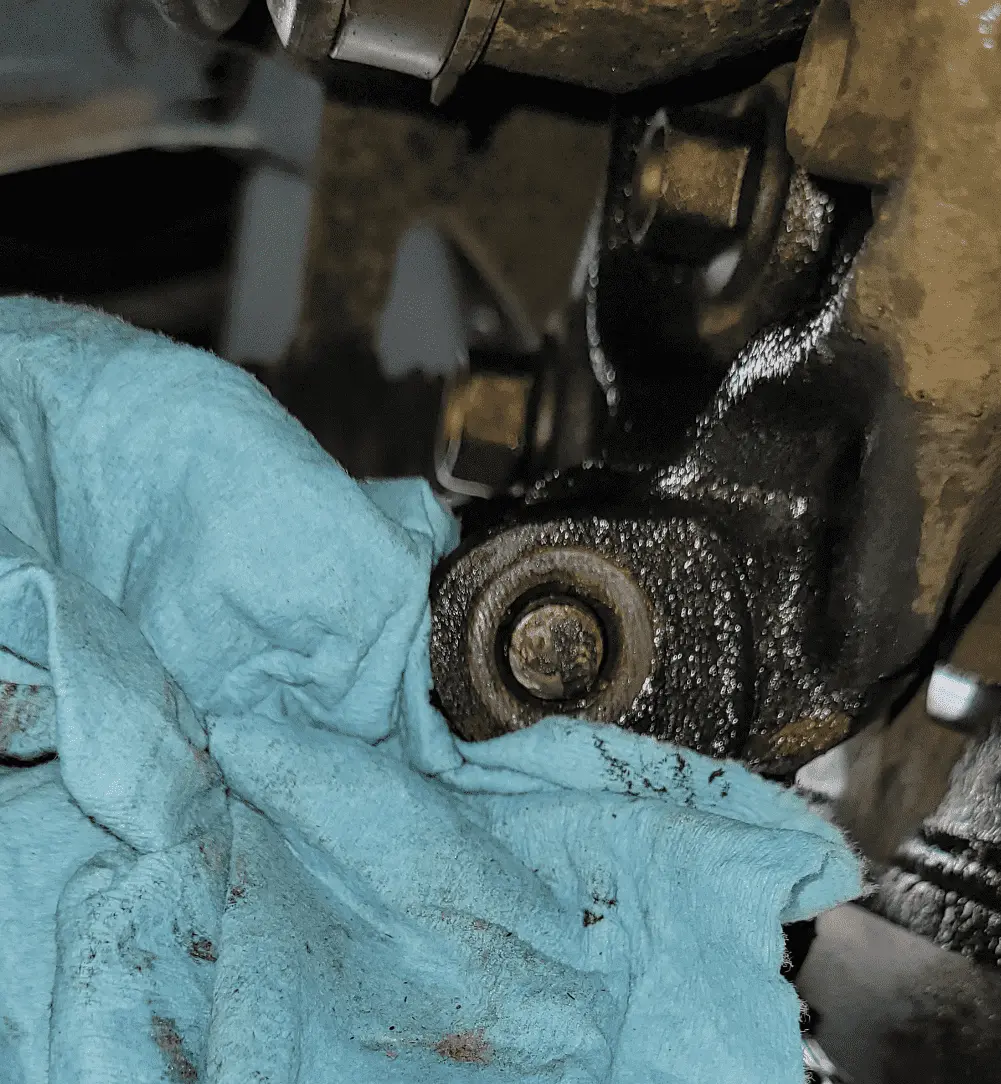

Holy moly, I thought I was the only one that had issues getting that little pinch bolt off. I am not sure if your bolt was worse than mine but I heated it a bit with a MAPP torch and gave up as the rubber was starting to burn so I sprayed penetrating fluid on it and kept going at it for about 1-2 hours with a 4 lb. hammer until it came loose and repeated the same process for the opposite side. I did buy a 8 lb. sledgehammer as well but there isn't much room to swing it so it was a waste of time. I would say that the driver side was the worst and honestly, I hope no one has to go through that trouble.

A few tips for anyone attempting to do this:
  1. Air hammer: Consider getting this but you'll need to buy an air compressor + the actual hammer + flat headed bit itself which is about $500-850 total but it would make your life so much easier.
  2. 4 lb. mallet: This is what I used and I had to swing at the bolt repeatedly for about 1-2 hours on both the driver/passenger side to slowly knock it loose.
  3. Heat it up till it's red hot like RedBaron's friend did but you'll definitely ruin the rubber boot and it'll smell bad.

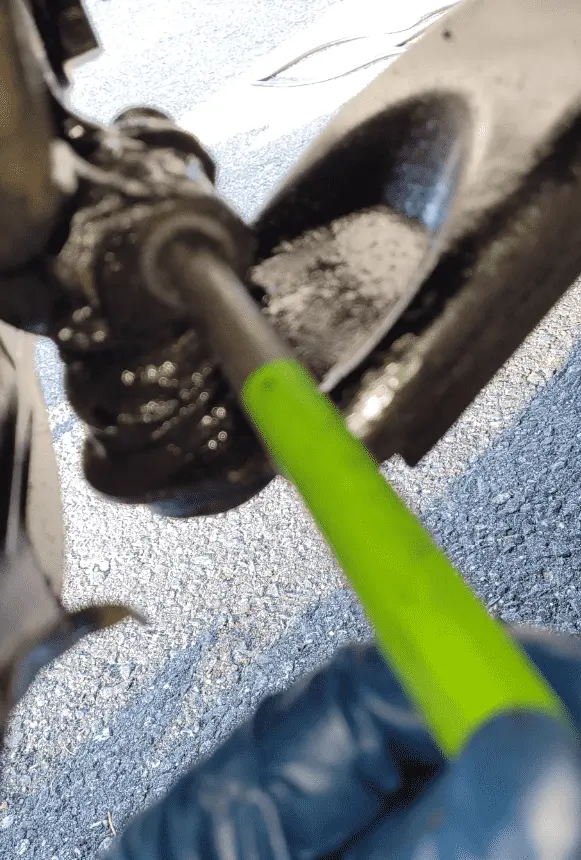

  4. Get a solid metal punch that is round on both sides and wide enough for someone to hold it and go at it with a 8 lb. sledgehammer. Be careful not to hit your friend though :p

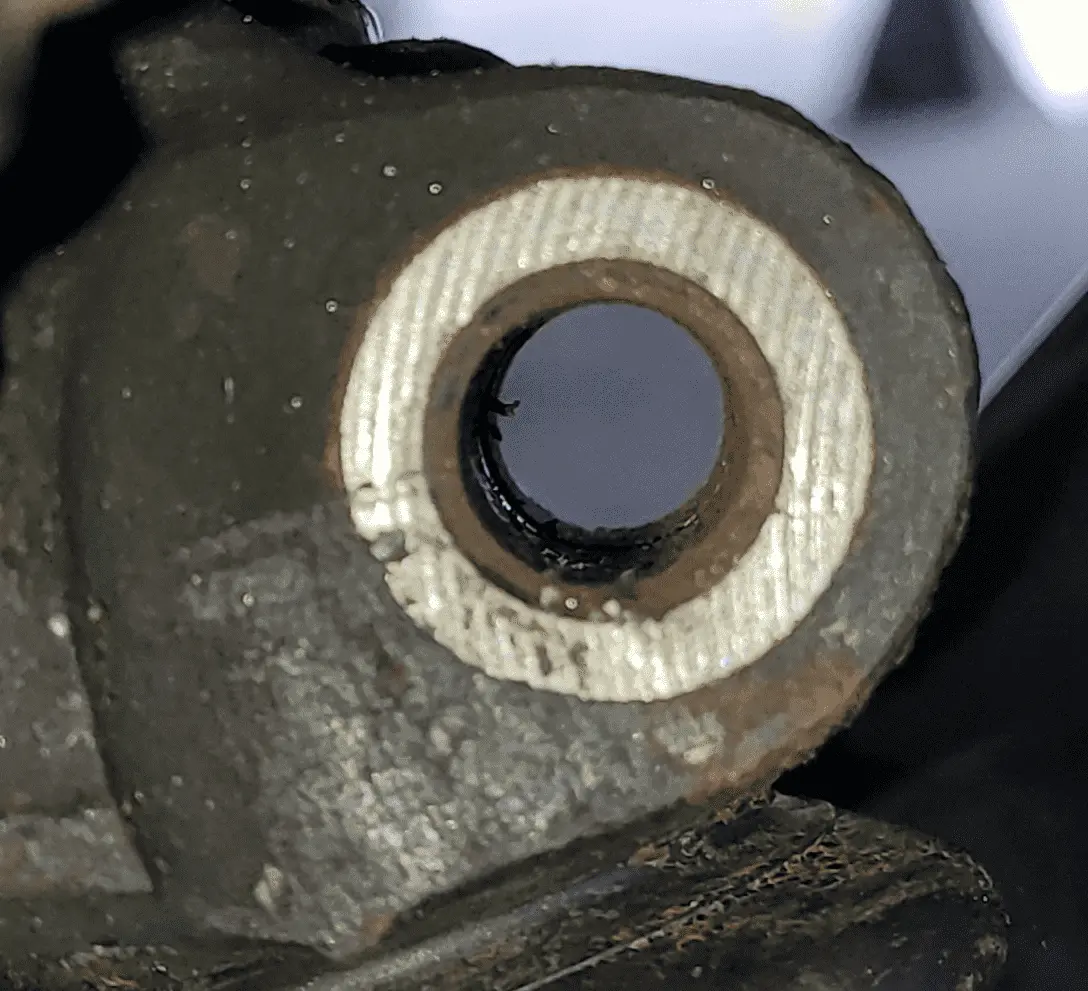

If you DO manage to get the bolt loose and inside of the hole, you'll need a punch as well to knock the bolt out of the hole since the opening is very small.
