Android Nexus 7 InDash Entertainment Package
This package will easilly outperform those $600+ Navigation packages from Pioneer or Kenwood
Nexus 7" Tablet running (running Timur USB Rom)
This operating system is designed specifically for installations into vehicles. For example, The tablet will automatically deep sleep once the power is shut off to conserve power, and automatically return to its state once ignition isturned back on
Full detailed information about this ROM is found here: http://mehrvarz.github.io/nexus-7-usbrom/
With the custom ROM (operating system) It unlocks the ability to run all your external devices through your micro-USB port. A OTG Y Cable splits off your micro-USB connection into two different directions. The "out connection" plugs into the powered USB Hub which provides data to and from your devices. the "in connection" runs power back from a 5v+ power supply to charge the tablet.
Package Includes:
Nexus 7 (2012 WiFi Model) 9/10 Condition
Joycon EX Steering Wheel Control PC Interface *Not Installed*
Kingston Digital 32GB Data Traveler to hold all your media files
OTG Y cable
2x Micro-USB Cables
USB Extension Cable
DAC Behringer UCA202 Audio Interface
AmazonBasics 4 Port USB 3.0 Hub with altered 5v Connection
RTL-SDR, FM+DAB Tuner
- USB based fm tuner to gain control of FM Frequencies to listen on the tablet
With this package you have access to any app you desire to install from the play marketplace. YouTube/Google Chrome/Pandora/Email/Netflix along with Google Maps tethered to your phone gives you unlimited streaming abilities and navigation.
Doubletwist music app for a nice clean music player to handle all your media files. The SDR Touch app to use control of the RTL-SDR USB Dongle to use as your FM Tuner. And the Joycon, It lets you regain the useage of your steering wheel controls for fully programmable hands free operation of the tablet.
I had my package run like this:
Nexus 7 > OTG Y Cable (1) > Powered USB HUB
> DAC Audio convertor (USB to RCA connection to your amplifier > Amplifier
> USB extention cable > 32GB Jumpdrive (Located in my center console)
> RTL-SDR (FM Tuner) (Antenna was tucked away in my dash)
> Joycon Steering Wheel control Module *Not Installed*
5v+ (Switched) > OTG Y Cable (2) > Nexus 7
5v+ (Switched) > USB Hub
I used a cigarette lighter style USB charging adaptor wired to a switched 5v current to provide the charging to both the HUB and Tablet, alternatively you could use something like this: http://www.amazon.ca/dp/B00JGFEQLE/
I have not removed this system from my car yet. So any pictures of wire routing would have to wait. But i will provide full pictures of the Nexus working together will all of the accessories listed.
A build resembling mine that I used for ideas:
http://www.torontomazda3.ca/forum/showthread.php?72970-Another-Nexus-7-In-Dash-Install-Mazda-3-Gen-1
http://www.mp3car.com/show-off-your...all-includes-build-log-diy-2.html#post1485215

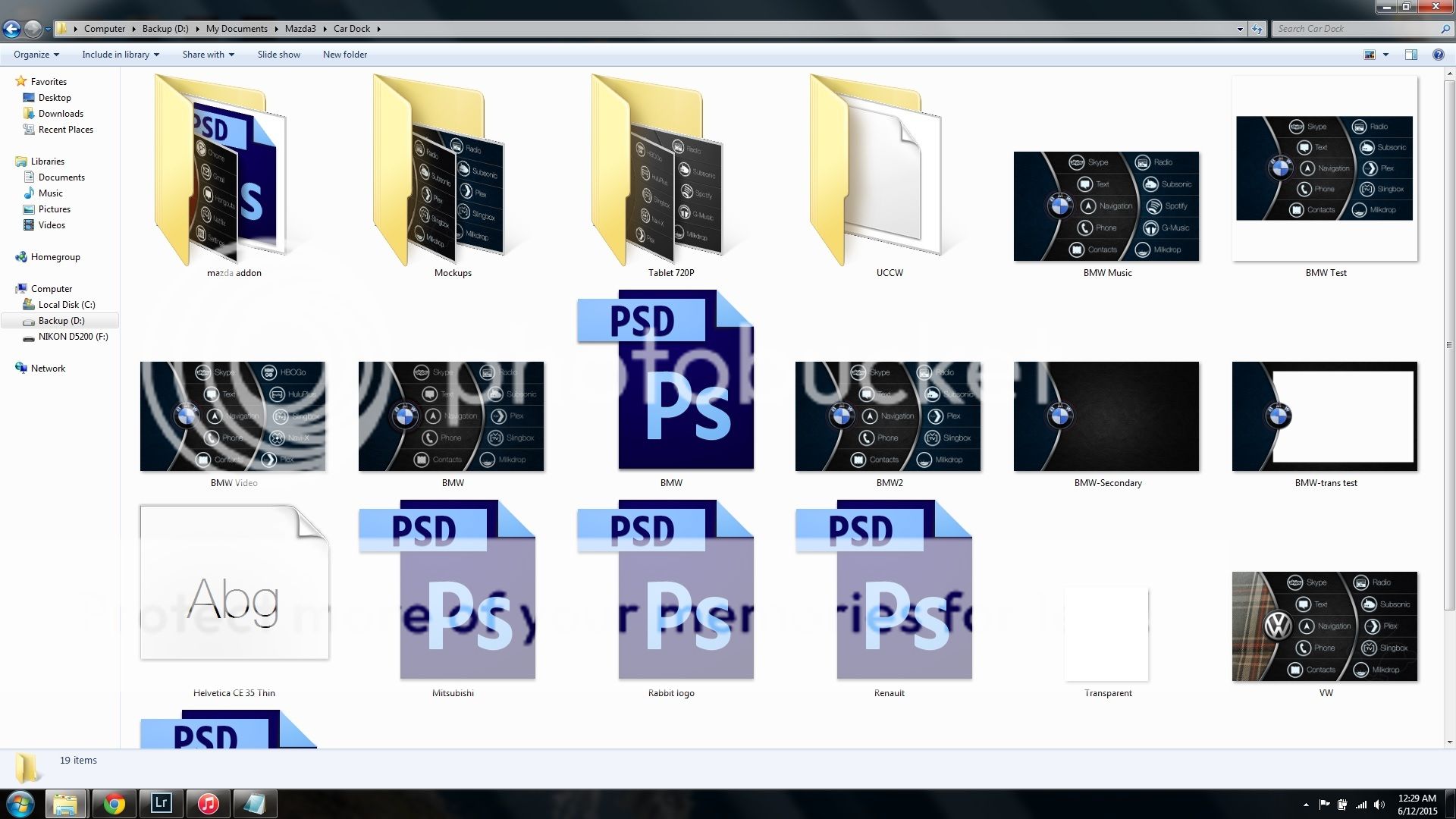

I can provide the Photoshop and icon data files to create your own home screen custom to your car
$200 OBO
This is completely plug and play package
This package will easilly outperform those $600+ Navigation packages from Pioneer or Kenwood
Nexus 7" Tablet running (running Timur USB Rom)
This operating system is designed specifically for installations into vehicles. For example, The tablet will automatically deep sleep once the power is shut off to conserve power, and automatically return to its state once ignition isturned back on
Full detailed information about this ROM is found here: http://mehrvarz.github.io/nexus-7-usbrom/
With the custom ROM (operating system) It unlocks the ability to run all your external devices through your micro-USB port. A OTG Y Cable splits off your micro-USB connection into two different directions. The "out connection" plugs into the powered USB Hub which provides data to and from your devices. the "in connection" runs power back from a 5v+ power supply to charge the tablet.
Package Includes:
Nexus 7 (2012 WiFi Model) 9/10 Condition
Joycon EX Steering Wheel Control PC Interface *Not Installed*
Kingston Digital 32GB Data Traveler to hold all your media files
OTG Y cable
2x Micro-USB Cables
USB Extension Cable
DAC Behringer UCA202 Audio Interface
AmazonBasics 4 Port USB 3.0 Hub with altered 5v Connection
RTL-SDR, FM+DAB Tuner
- USB based fm tuner to gain control of FM Frequencies to listen on the tablet
With this package you have access to any app you desire to install from the play marketplace. YouTube/Google Chrome/Pandora/Email/Netflix along with Google Maps tethered to your phone gives you unlimited streaming abilities and navigation.
Doubletwist music app for a nice clean music player to handle all your media files. The SDR Touch app to use control of the RTL-SDR USB Dongle to use as your FM Tuner. And the Joycon, It lets you regain the useage of your steering wheel controls for fully programmable hands free operation of the tablet.
I had my package run like this:
Nexus 7 > OTG Y Cable (1) > Powered USB HUB
> DAC Audio convertor (USB to RCA connection to your amplifier > Amplifier
> USB extention cable > 32GB Jumpdrive (Located in my center console)
> RTL-SDR (FM Tuner) (Antenna was tucked away in my dash)
> Joycon Steering Wheel control Module *Not Installed*
5v+ (Switched) > OTG Y Cable (2) > Nexus 7
5v+ (Switched) > USB Hub
I used a cigarette lighter style USB charging adaptor wired to a switched 5v current to provide the charging to both the HUB and Tablet, alternatively you could use something like this: http://www.amazon.ca/dp/B00JGFEQLE/
I have not removed this system from my car yet. So any pictures of wire routing would have to wait. But i will provide full pictures of the Nexus working together will all of the accessories listed.
A build resembling mine that I used for ideas:
http://www.torontomazda3.ca/forum/showthread.php?72970-Another-Nexus-7-In-Dash-Install-Mazda-3-Gen-1
http://www.mp3car.com/show-off-your...all-includes-build-log-diy-2.html#post1485215
I can provide the Photoshop and icon data files to create your own home screen custom to your car
$200 OBO
This is completely plug and play package
