2019 CX-5 Leaking oil under the car
- Thread starter cekash
- Start date
- :
- Canada
Generally, no, most owners do not have oil leaking issues with their 2.5 Turbo engines.
Where is the oil leaking from?
Any recent service done?
Have you put the car on jackstands or on a lift to get a better look at the underside?
Any recent collisions?
Need a bit more information and context, if possible.
Where is the oil leaking from?
Any recent service done?
Have you put the car on jackstands or on a lift to get a better look at the underside?
Any recent collisions?
Need a bit more information and context, if possible.
Thanks I just posted it and no the last service was in July.
No accidents and really she is babied. I always take time over speed bumps etc. and I am not sure why this happened.
Dealer cannot look at the car till Monday so I am worried about driving it.
Oil level is fine in car so far but the oil was all over the garage
- :
- Mazda CX-9 Signature
Likely an under torqued drain bolt, or nicked gasket?

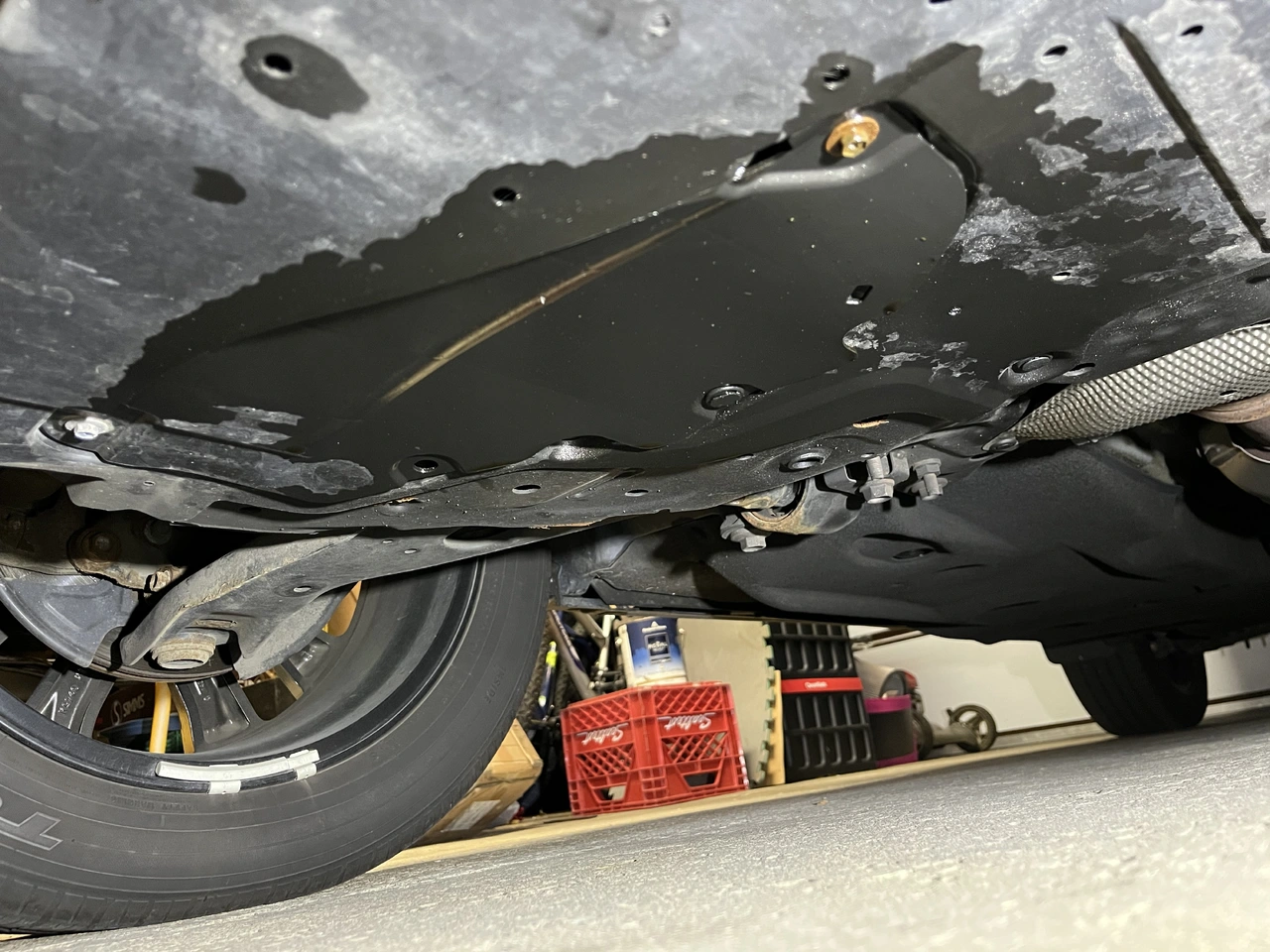

In that area, it's highly likely (at least as viewed from the outside of the cover) to be either an oil filter or oil drain bolt that's not been properly tightened.
Hard to tell just from an exterior pic. Won't know until the cover's fully removed and the actual source can be seen.
Hard to tell just from an exterior pic. Won't know until the cover's fully removed and the actual source can be seen.
It was golden colour like regular oil colour
N7turbo
2023 CX-5 2.5T ... 2024 MX-5 RF GT
Did you get a clear reading or was the entire dipstick covered? Oil needs time to settle down, at least 20-30 minutes in my experience, before you can get a clear reading on these cars.
If the oil level was half-way between the MIN and MAX, it's perfect, but I would still be concerned that you have a leak. It probably started out at MAX or even higher.
Remove the access cover and see if oil is on the oil pan/drain bolt or the oil filter.
Oil pan/drain bolt = torque it a bit with a 17mm
Oil filter = clean it off and torque it with rubber gloves. It should become hard to move further, but not impossible. At that point, it's enough.
Last edited:
- :
- 2016.5 CX-5 GT AWD titanium/black 2016 Miata Club ST MT white
While you were under there why didn't you pull the access cover right there and see what's going on with the filter and the drain plug?
Two screws and two plastic rivets and you're looking at the filter and drain plug.
Let the dealer solve this problem and report in writing to the leaderships OWNER and cc the service manager. I would do this because of the irresponsible service. In addition: the undercover should be removed and power-washed to remove any oil stains remaining.
Dealerships should provide a gold standard for service.
Dealerships should provide a gold standard for service.
Mazda Dealership
- :
- 2016.5 CX-5 GT AWD titanium/black 2016 Miata Club ST MT white
What they should do and what they actually do, are two entirely different things!
Cekash, did you get the leak resolved?
I'm guessing the cause was a "double gasket" oil filter:
studentlesson.com
Slow leak, easy dealer fix.
In any case, be sure your dealer documents the cause.
I'm guessing the cause was a "double gasket" oil filter:
Most Common Reasons Why Your Car Oil Filter Is Leaking - Student Lesson
Double gasket, Oil filter gasket, Over or under-tightening, Filter housing, Damaged threads are some reasons why your car oil filter is leaking.
studentlesson.com
Slow leak, easy dealer fix.
In any case, be sure your dealer documents the cause.
